ST 2109 E (961910021-00) - Jonsered Snow Thrower (2007-10) CHASSIS ENCLOSURES Parts Diagram

Snow Thrower

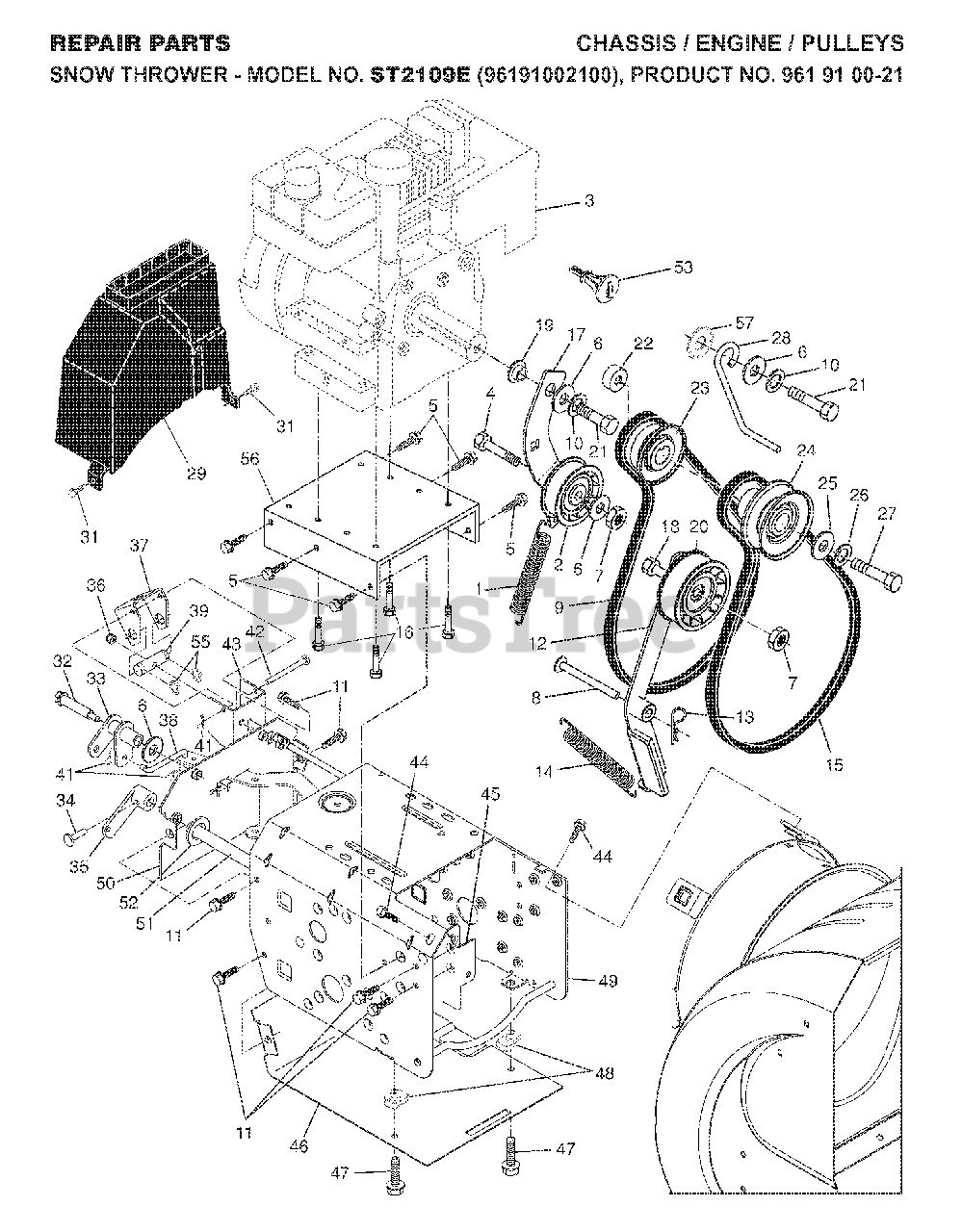

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Jonsered 532181044

RP SPRING, TRACTION IDLER
(Superseded to 532414557)

$6.49

$

In Stock, only 3 left!

0

2

Jonsered 532180522

PULLEY.W/SPACER.2.25

$31.99

$

In Stock, only 2 left!

0

4

Jonsered 874780520

BOLT.5/16-18X1-1/4 FULL.THREAD
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

5

Jonsered 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$4.99

$

In Stock, Qty 20+

0

6

Jonsered 532059289

STEEL WASHER

$4.99

$

In Stock, only 3 left!

0

7

Jonsered 532166785

LOCKNUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

8

Jonsered 532175330

PIN, IDLER PIVOT

$5.99

$

In Stock, Qty 18

0

9

Jonsered 532407908

No Description Available

$

$

Not available

10

Jonsered 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

11

$6.49

$

Usually ships in 3-10 days

0

12

Jonsered 532410420

ARM PAD ASSY
(Superseded to 532419925)

$15.99

$

Usually ships in 3-10 days

0

13

Jonsered 532085179

RETAINER CLIP PM

$7.49

$

Usually ships in 3-10 days

0

14

Jonsered 532178828

SPRING, BRAKE

$6.49

$

In Stock, Qty 6

0

15

Jonsered 532408019

BELT-V.IMPELLER.HS

$49.99

$

In Stock, only 1 left!

0

16

Jonsered 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

17

Jonsered 532184804

IDLER ARM
(Superseded to 532179354)

$44.99

$

In Stock, only 2 left!

0

18

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

19

Jonsered 532175331

BUSHING, IDLER PIVOT
(Superseded to 587343701)

$6.99

$

Usually ships in 3-10 days

0

20

Jonsered 532180523

PULLEY.W/SPACER.2.75

$24.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 4 left!

0

22

Jonsered 532409475

SPACER.ENGINE.PULLEY

$9.49

$

Usually ships in 3-10 days

0

23

Jonsered 532180478

PULLEY, ENGINE TRACTION DRIVE

$27.99

$

Usually ships in 3-10 days

0

24

Jonsered 532178813

PULLEY
(Superseded to 178813)

$17.99

$

Usually ships in 3-10 days

0

25

Jonsered 532400026

WASHER, FLAT 3/8

$9.49

$

In Stock, only 3 left!

0

26

Jonsered 532850263

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

27

Jonsered 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

28

Jonsered 532155452

GUIDE BELT

$6.49

$

Usually ships in 3-10 days

0

29

Jonsered 532409161

COVER.BELT.HS

$

$

Not available

31

Jonsered 817490408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

32

Jonsered 532179256

BOLT, SHOULDER 5/16-18

$

$

Not available

33

Jonsered 532187853

BELLCRANK SHIFTER

$15.99

$

Usually ships in 3-10 days

0

34

Jonsered 532198580

CLEVIS PIN

$6.49

$

Usually ships in 3-10 days

0

35

Jonsered 532405485

ARM, AUGER CONTROL

$9.99

$

In Stock, only 1 left!

0

36

Jonsered 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

37

Jonsered 532184086

BRACKET, PIVOT

$3.99

$

Usually ships in 3-10 days

0

38

Jonsered 532187101

LINK, SPEED CONTROL

$

$

Not available

39

Jonsered 532192110

TRUNNION, TRACTION

$

$

Not available

41

Jonsered 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

42

Jonsered 532179065

PIN, PIVOT BRACKET

$10.99

$

Usually ships in 3-10 days

0

43

$

$

Not available

44

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

45

Jonsered 532184074

BRACKET, IDLER PIVOT
(Superseded to 532184789)

$91.99

$

Usually ships in 3-10 days

0

46

Jonsered 532184084

PAN, FRAME BOTTOM
(Superseded to 532178624)

$

$

Not available

47

Jonsered 871020512

SCREW, HEX HD 5/16 -18 X 3/4

$

$

Not available

48

Jonsered 532181156

NUT, SPEED 5/16-18

$7.49

$

In Stock, only 1 left!

0

49

Jonsered 532407862

No Description Available
(Superseded to 584374401)

$15.99

$

Usually ships in 3-10 days

0

50

Jonsered 532188370

No Description Available

$

$

Not available

51

Jonsered 532406109

SHAFT, AUGER CONTROL
(Superseded to 532427542)

$47.99

$

In Stock, only 1 left!

0

52

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

53

Jonsered 532193071

KEY.PUSH/PULL.B&S.
(Superseded to 532019371)

$7.49

$

In Stock, Qty 19

0

55

Jonsered 812000002

RETAINING RING LT

$7.49

$

In Stock, only 1 left!

0

56

Jonsered 532417079

No Description Available

$24.99

$

Usually ships in 3-10 days

0

57

Jonsered 811050500

WASHER EXT TOOTH LOCK 5/16
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0
