ST 2109 E (961910013-03) - Jonsered Snow Thrower (2007-01) HANDLE CONTROLS Parts Diagram

Snow Thrower

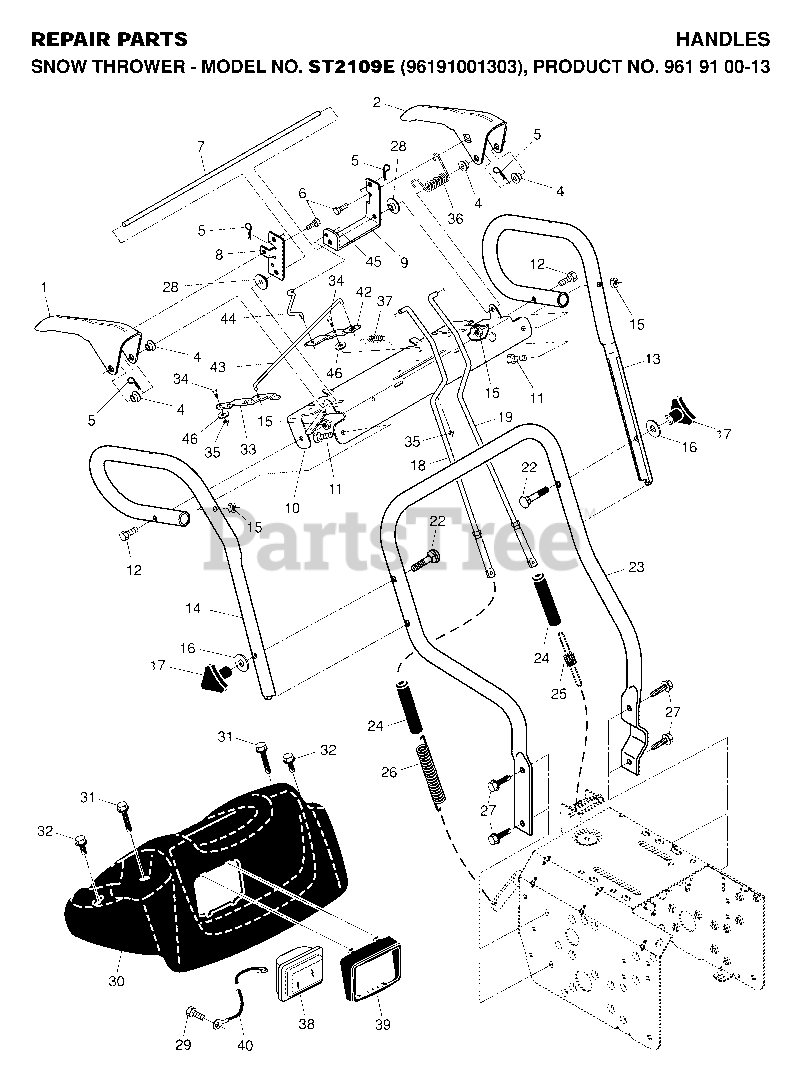

HANDLE CONTROLS Parts Diagram

  • Title
1

Jonsered 532407649

LEVER, AUGER CONTROL, RH
(Superseded to 532405999)

$27.99

$

Usually ships in 3-10 days

0

2

Jonsered 532407648

LEVER, TRACTION DRIVE CONTROL,
(Superseded to 532405783)

$

$

Not available

4

Jonsered 532178888

BUSHING, FLANGE

$

$

Not available

5

Jonsered 532169675

SPRING RETAINER

$7.49

$

In Stock, only 2 left!

0

$5.99

$

In Stock, only 2 left!

0

7

Jonsered 532178652

ROD.INTERLOCK

$11.99

$

In Stock, only 1 left!

0

8

Jonsered 532199576

ARM,IMPELLER ROD
(Superseded to 532196333)

$

$

Not available

9

Jonsered 532199575

ARM,TRACTION ROD
(Superseded to 532196334)

$

$

Not available

10

Jonsered 532199531

PANEL.CONTROL
(Superseded to 532196619)

$18.99

$

Usually ships in 3-10 days

0

11

Jonsered 874780524

HEX BOLT
(Superseded to 596582201)

$3.99

$

In Stock, Qty 12

0

$7.49

$

In Stock, only 2 left!

0

13

Jonsered 532184107

HANDLE TUBE LH
(Superseded to 532407856)

$66.99

$

Usually ships in 3-10 days

0

14

Jonsered 532184108

HANDLE TUBE RH
(Superseded to 532407857)

$48.99

$

Usually ships in 3-10 days

0

15

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, only 2 left!

0

16

$4.99

$

In Stock, Qty 5

0

17

Jonsered 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

18

Jonsered 532180480

ROD.ASM.IMPELLER

$

$

Not available

19

Jonsered 532180481

ROD.ASM.TRACTION.

$27.99

$

Usually ships in 3-10 days

0

22

Jonsered 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0

23

Jonsered 532184087

TUBE.LOWER.HANDLE.24.BLACK

$

$

Not available

24

Jonsered 532180447

SLEEVE, SPRING

$6.99

$

In Stock, only 2 left!

0

25

Jonsered 532180926

SPRING, TRACTION DRIVE

$7.49

$

In Stock, Qty 7

0

26

Jonsered 532178669

SPRING, AUGER CONTROL

$9.49

$

In Stock, Qty 5

0

27

Jonsered 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

28

Jonsered 532198559

BUSHING, IDLER PIVOT

$

$

Not available

29

Jonsered 532193072

SCREW, HEADLIGHT GROUND WIRE

$9.99

$

Usually ships in 3-10 days

0

30

Jonsered 532182906

PANEL.CONSOLE.SNOW

$48.99

$

Usually ships in 3-10 days

0

31

Jonsered 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

Usually ships in 3-10 days

0

32

Jonsered 532184471

SCREW, HEX HEAD, TAPPING

$4.99

$

Usually ships in 3-10 days

0

33

Jonsered 532199577

LATCH.INTERLOCK
(Superseded to 532196335)

$13.99

$

Usually ships in 3-10 days

0

34

Jonsered 532183518

BOLT, SHOULDER

$2.99

$

Usually ships in 3-10 days

0

35

Jonsered 532068038

NUT **
(Superseded to 73850400)

$

$

Not available

36

Jonsered 532178831

RP SPRING, TORSION
(Superseded to 532443215)

$6.49

$

In Stock, only 1 left!

0

37

Jonsered 532193885

SPRING LATCH

$6.49

$

In Stock, only 1 left!

0

38

Jonsered 532178666

HEADLIGHT, HALOGEN

$250.99

$

Usually ships in 3-10 days

0

--

Jonsered 532401620

BULB.HEADLIGHT.HALOGEN.

$80.99

$

Usually ships in 3-10 days

0

39

Jonsered 532178668

BEZEL.HEADLIGHT.BLACK

$7.49

$

In Stock, Qty 9

0

40

Jonsered 532180964

HARNESS.WIRE.HALOGEN

$51.99

$

In Stock, only 3 left!

0

42

Jonsered 532199578

LEVER.INTERLOCK
(Superseded to 532196336)

$2.99

$

Usually ships in 3-10 days

0

43

Jonsered 532199638

ROD.LATCH.INTERLOCK

$7.99

$

Usually ships in 3-10 days

0

44

Jonsered 532196338

ROD.ASM INTERLOCK

$5.99

$

Usually ships in 3-10 days

0

45

Jonsered 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

46

Jonsered 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0
