ST 2109 E (961910013-01) - Jonsered Snow Thrower (2007-01) AUGER HOUSING IMPELLER Parts Diagram

Snow Thrower

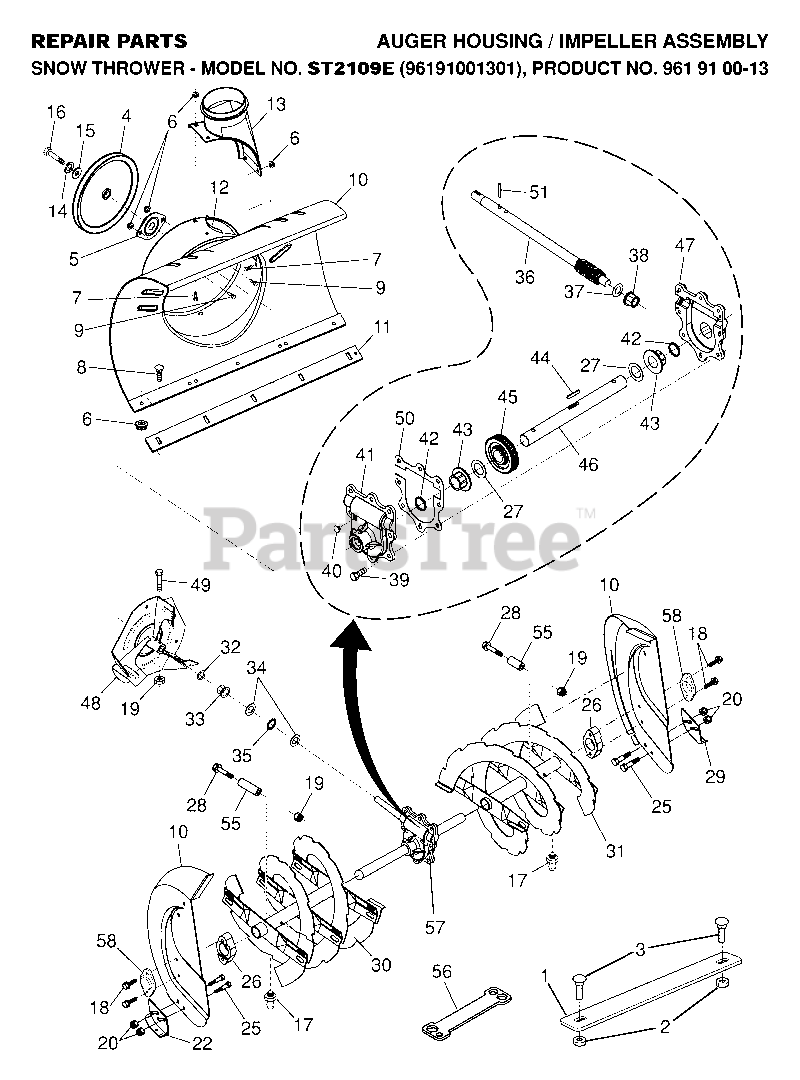

AUGER HOUSING IMPELLER Parts Diagram

  • Title
1

Jonsered 532188703

WEIGHT, AUGER HOUSING 27
(Superseded to 532182515)

$97.99

$

Usually ships in 3-10 days

0

2

Jonsered 532751153

NUT, LOCK 5/16-18

$4.99

$

In Stock, only 2 left!

0

3

Jonsered 872110510

BOLT.CARRIAGE.5/16-18

$7.49

$

In Stock, Qty 20+

0

4

Jonsered 532191079

PULLEY, IMPELLER
(Superseded to 191079)

$

$

Not available

5

Jonsered 532188909

BEARING FLANGE

$28.99

$

In Stock, only 2 left!

0

6

Jonsered 532198541

NUT, HEX FLANGE 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

7

Jonsered 532180355

BOLT.CARRIAGE.5/16-18X

$7.49

$

In Stock, Qty 9

0

8

Jonsered 872270505

BOLT
(Superseded to 872110505)

$3.99

$

In Stock, Qty 20+

0

9

$7.99

$

In Stock, only 1 left!

0

10

Jonsered 532407916

No Description Available

$

$

Not available

11

Jonsered 532407727

BAR, SCRAPER
(Superseded to 532404932)

$11.99

$

Usually ships in 3-10 days

0

12

Jonsered 532184095

BRACKET, CORNER DISCHARGE
(Superseded to 532178675)

$4.99

$

Usually ships in 3-10 days

0

13

Jonsered 532175322

BASE DISCHARGE CHUTE
(Superseded to 532442438)

$11.99

$

In Stock, Qty 16

0

14

Jonsered 819111507

WASHER, FLAT

$6.49

$

Usually ships in 3-10 days

0

15

Jonsered 532198552

WASHER, LOCK 5/16

$7.99

$

Usually ships in 3-10 days

0

$4.99

$

In Stock, only 3 left!

0

17

Jonsered 532405637

GREASE FITTING

$4.99

$

Usually ships in 3-10 days

0

18

Jonsered 532179582

SCREW, HEX HD 5/16X1

$7.49

$

In Stock, only 3 left!

0

19

Jonsered 873800400

LOCKNUT
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

20

Jonsered 532198541

NUT, HEX FLANGE 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

22

Jonsered 532184094

SKID PLATE RH
(Superseded to 532436125)

$

$

Not available

25

Jonsered 872270506

No Description Available
(Superseded to 872110506)

$7.49

$

In Stock, Qty 20+

0

26

Jonsered 532187925

BEARING.BALL.AUGER.SHAFT

$62.99

$

In Stock, only 2 left!

0

27

Jonsered 532174697

WASHER TRUST 1"
(Superseded to 532007396)

$

$

Not available

28

Jonsered 532198636

BOLT, SHEAR
(Superseded to 532192090)

$5.99

$

In Stock, Qty 20+

0

29

Jonsered 532184093

SKID PLATE LH
(Superseded to 532174762)

$9.49

$

In Stock, only 1 left!

0

30

Jonsered 532407896

AUGER ASSY-RH
(Superseded to 532406022)

$319.99

$

Usually ships in 3-10 days

0

31

Jonsered 532407895

AUGER ASSY-LH
(Superseded to 532406021)

$

$

Not available

32

$6.49

$

In Stock, only 2 left!

0

33

Jonsered 532407769

BUSHING, FLANGE 3/4
(Superseded to 407769)

$2.99

$

Usually ships in 3-10 days

0

34

Jonsered 532174681

WASHER, THRUST 3/4

$14.99

$

In Stock, only 3 left!

0

35

Jonsered 532174684

BEARING TRUST 3/4

$9.99

$

In Stock, only 2 left!

0

36

Jonsered 532407757

SHAFT, IMPELLER
(Superseded to 407757)

$102.99

$

Usually ships in 3-10 days

0

37

Jonsered 532174683

WASHER, THRUST 5/8

$7.99

$

Usually ships in 3-10 days

0

38

Jonsered 532407758

FLANGE BUSHING-5/8
(Superseded to 532174686)

$

$

Not available

39

Jonsered 532407767

HEX SCREW-5/16 X 3/4
(Superseded to 532150078)

$4.99

$

In Stock, Qty 20+

0

40

Jonsered 532407760

CASE PLUG
(Superseded to 532086447)

$

$

Not available

41

Jonsered 532407761

GEARBOX HOUSING-RH
(Superseded to 532174688)

$

$

Not available

42

Jonsered 532407770

OIL SEAL
(Superseded to 532174698)

$

$

Not available

43

Jonsered 532407762

FLANGE BUSHING-1"
(Superseded to 532174701)

$

$

Not available

44

Jonsered 532189282

KEY, SQUARE 1/4 X .875

$7.49

$

In Stock, only 1 left!

0

45

Jonsered 532407763

WORM GEAR
(Superseded to 532174659)

$279.99

$

Usually ships in 3-10 days

0

46

Jonsered 532407764

AUGER SHAFT
(Superseded to 532174657)

$68.99

$

Usually ships in 3-10 days

0

47

Jonsered 532407765

GEARBOX HOUSING - LH

$26.99

$

Usually ships in 3-10 days

0

48

Jonsered 532184105

IMPELLER ASSY
(Superseded to 532175321)

$78.99

$

Usually ships in 3-10 days

0

49

Jonsered 874780426

SCREW.HEX.HD1/4-20X

$6.49

$

Usually ships in 3-10 days

0

50

Jonsered 532407766

GEARBOX GASKET
(Superseded to 532175311)

$

$

Not available

51

Jonsered 532184205

PIN, ROLL 3/16 X 1-1/8
(Superseded to 7836M)

$

$

Not available

55

$7.49

$

In Stock, Qty 10

0

56

Jonsered 532180684

RP WRENCH, SNOWTHROWER
(Superseded to 532429112)

$4.99

$

Usually ships in 3-10 days

0

57

Jonsered 532196710

GEARBOX.ASSEMBLY.AUGER
(Superseded to 586399501)

$279.99

$

Usually ships in 3-10 days

0

58

Jonsered 532188170

BEARING RETAINER, PLASTIC

$

$

Not available
