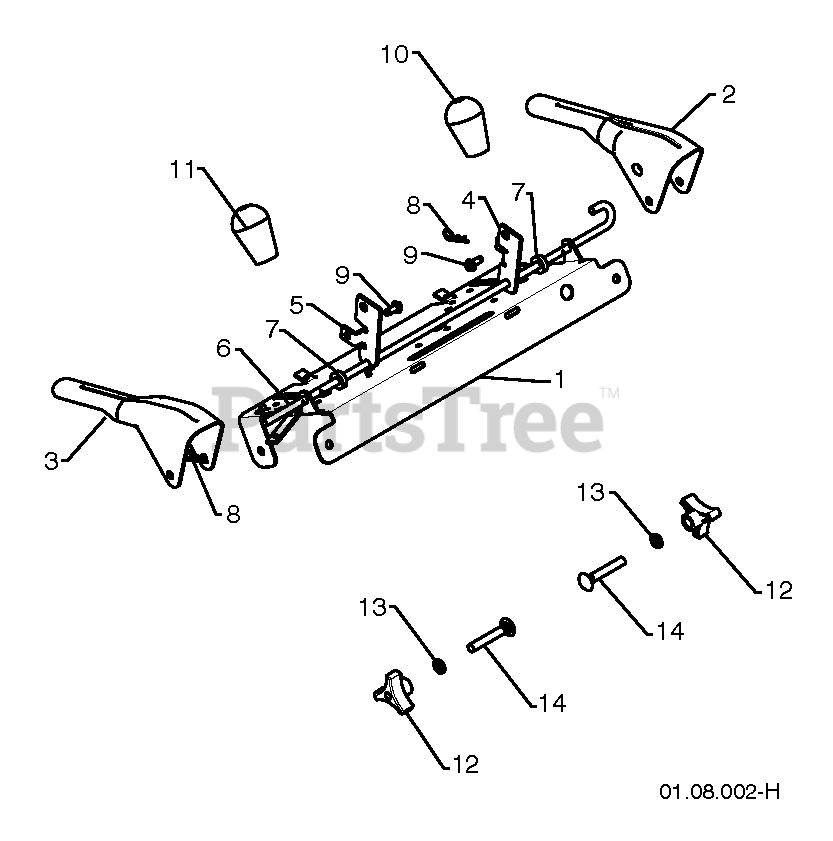

ST 2106 (961910020-11) - Jonsered Snow Thrower (2012-11) HANDLE Parts Diagram

Snow Thrower

HANDLE Parts Diagram

  • Title
1

Jonsered 532415539

PANEL.CONTROL.PNT.BLACK

$27.99

$

Usually ships in 3-10 days

0

2

Jonsered 580687802

LEVER.CONTROL.LH.BLACK

Note: LH

$28.99

$

Usually ships in 3-10 days

0

3

Jonsered 580687702

LEVER.CONTROL.RH.PNT.BLACK

Note: RH

$22.99

$

Usually ships in 3-10 days

0

4

Jonsered 532415546

ARM.TRACTION.ROD.YZ

$4.99

$

Usually ships in 3-10 days

0

5

Jonsered 532429098

ARM.IMPELLER.ROD.

$

$

Not available

6

Jonsered 532412677

BAIL.CONTROL.INTERLOCK

$14.99

$

Usually ships in 3-10 days

0

7

Jonsered 532421613

SPACER.CONTROL.LEVER

$4.99

$

In Stock, only 1 left!

0

8

Jonsered 532169675

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

9

Jonsered 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

10

Jonsered 532414280

KNOB LEVER, BLACK

$7.99

$

Usually ships in 3-10 days

0

11

Jonsered 532414281

RED KNOB SHIFTER

$22.99

$

In Stock, only 1 left!

0

12

Jonsered 532178899

KNOB.HANDLE.3/8.TRI-POINT.BLAC

$8.99

$

In Stock, only 2 left!

0

13

$4.99

$

In Stock, Qty 5

0

14

Jonsered 872120618

BOLT 3/8-16 X 2-1/4

$7.49

$

Usually ships in 3-10 days

0
