ST 21 M - Husqvarna 21" Snow Blower (1995-09) Motor And Drive Repair Parts Parts Diagram

21" Snow Blower

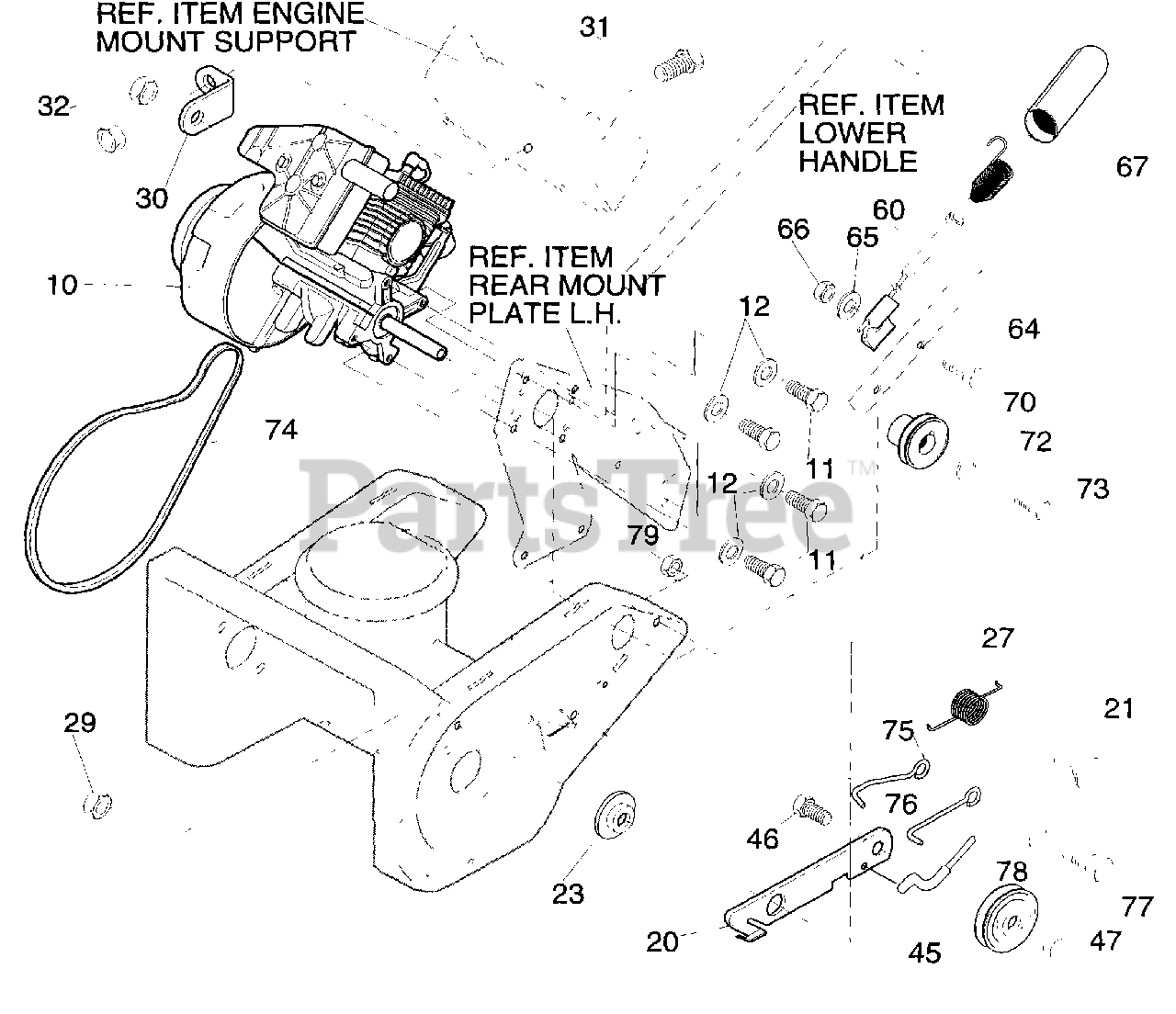

Motor And Drive Repair Parts Parts Diagram

  • Title
10

Husqvarna ~ENGINE

5HP 2CY

Note: (SEE ENGINE MANUAL)

$

$

Currently unavailable

11

Husqvarna 601000078

SCREW, 5/16-18 X .75 HMC

$

$

Not available

12

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

20

Husqvarna 601001734

BRKT, IDLER ARM

$

$

Not available

21

Husqvarna 601001751

BOLT, IDLER ARM

$

$

Not available

23

Husqvarna 601001752

SPACER, .38 X 1.25 X .324

$

$

Not available

27

Husqvarna 601001753

SPRING,TORSION,BRAKE

$

$

Not available

29

Husqvarna 601001335

NUT, 3/8-16 HXCTRLKJAM

$

$

Not available

30

Husqvarna 601001754

SUPPORT, ENGINE

$

$

Not available

31

Husqvarna 601001640

SCREW, 5/16-18 X .50 HHC

$

$

Not available

32

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$6.99

$

In Stock, only 2 left!

0

45

Husqvarna 601001755

PULLEY, IDLER 1.88 X .5 X .38

$

$

Not available

46

Husqvarna 601001756

BOLT, 3/8-16 X 1.25 SPCARR

$

$

Not available

47

Husqvarna 601001335

NUT, 3/8-16 HXCTRLKJAM

$

$

Not available

60

Husqvarna 601001757

CABLE, DRIVE CONTROL

$

$

Not available

64

Husqvarna 601001758

SCREW, 1/4-20 X 1.50 HHC

$

$

Not available

65

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

66

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

67

Husqvarna 601001759

COVER, CABLE SPRING

$

$

Not available

70

Husqvarna 601001760

PULLEY HALF, 3L 2.00

$

$

Not available

72

Husqvarna 601000547

FLATWASHER .333 X .87 X .119

$

$

Not available

73

Husqvarna 601001761

SCREW, 5/16-24X .88

$

$

Not available

74

Husqvarna 601001762

BELT, V3L X 35, .048 D

$

$

Not available

75

Husqvarna 601001763

GUIDE, BELT .38 ID X 2.66

$

$

Not available

76

Husqvarna 601001764

GUIDE, BELT .38 ID X 3.30 OFF

$

$

Not available

77

Husqvarna 601001765

SCREW, 3/8-16 X 1.00 HMC

$

$

Not available

78

Husqvarna 601000020

FLATWASHER .406 X .81 X .065

$

$

Not available

79

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

Husqvarna 601001884

OWNER'S MANUAL

$

$

Not available
