ST 21 E - Husqvarna 21" Snow Blower (1995-09) Belt Cover Repair Parts Parts Diagram

21" Snow Blower

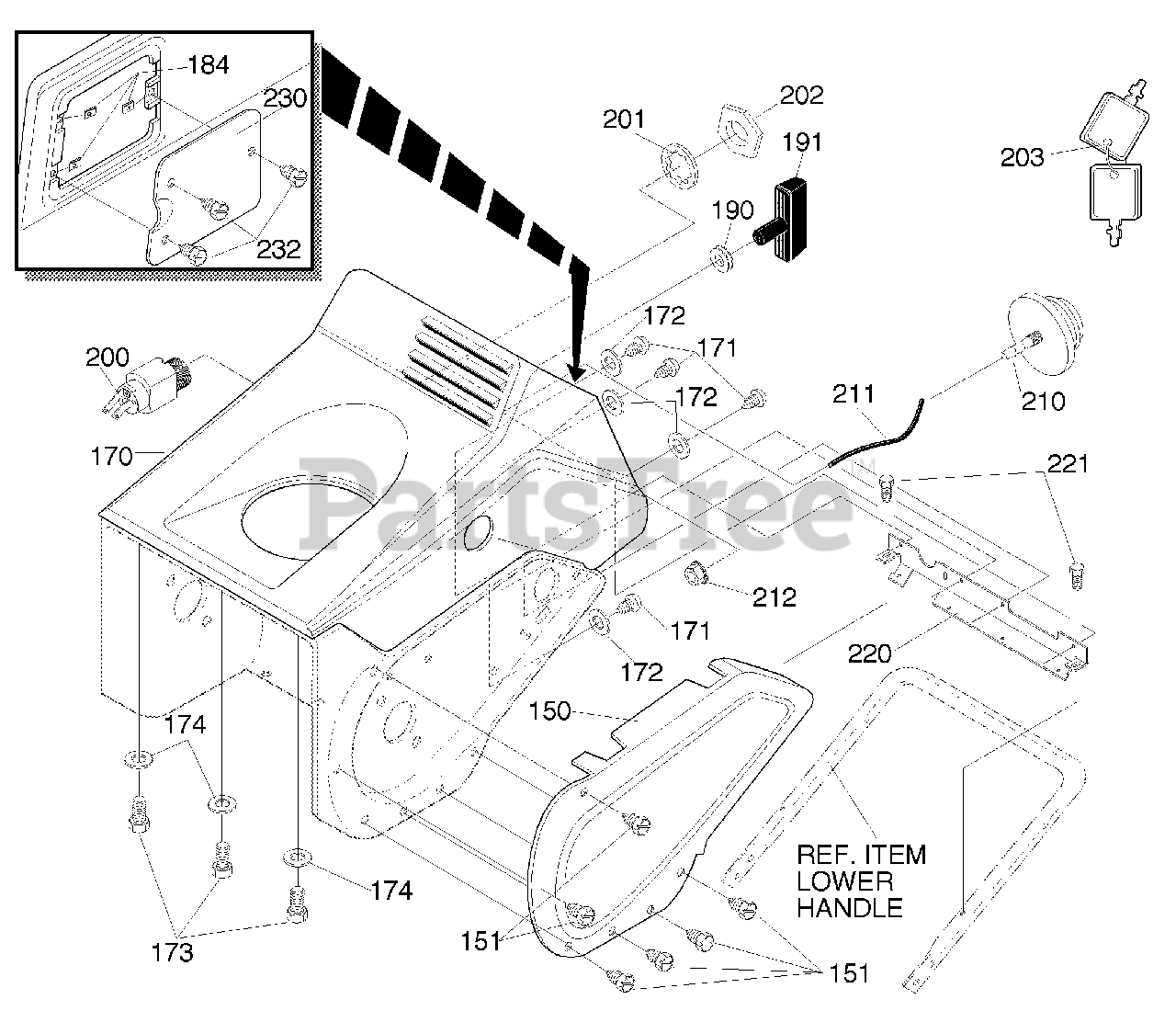

Belt Cover Repair Parts Parts Diagram

  • Title
150

Husqvarna 601001784

COVER, BELT

$

$

Not available

151

Husqvarna 601000514

SCREW,10-24 X .38

$

$

Not available

170

Husqvarna 601001785

COVER, TOP

$

$

Not available

171

Husqvarna 601001786

SCREW, #10-24 X .63
(Superseded to 601001792)

$

$

Not available

172

Husqvarna 601001703

WASHER, FLAT

$

$

Not available

173

Husqvarna 601001787

SCREW, #10-14 X .63

$

$

Not available

174

Husqvarna 601000017

WASHER, FLAT

$

$

Not available

184

Husqvarna 601001788

NUT, TINN "U"

$

$

Not available

190

Husqvarna 601001355

GROMMET & WASHER, ROPE GUIDE

$

$

Not available

191

Husqvarna 601001789

KNOB, PLASTIC

$

$

Not available

200

Husqvarna 601001358

SWITCH, IGNITION

$

$

Not available

201

Husqvarna 601001359

WASHER, REGINTLK

$

$

Not available

202

Husqvarna 601001360

NUT, 5/8-32 HXHD IGN SWIT

$

$

Not available

203

Husqvarna 601001361

2 KEYS & RING, ASSY

$

$

Not available

210

Husqvarna 601001362

PRIMER, ENGINE 2CY

$

$

Not available

211

Husqvarna 601001363

HOSE, PRIM 5.75 LG

$

$

Not available

212

Husqvarna 601001790

NUT, 1/4-20 HEXKEPS

$

$

Not available

220

Husqvarna 601001791

BRACKET, SHROUD MNTG

$

$

Not available

221

Husqvarna 601001792

SCREW, #10-24 X .63 TRPHTAP

$

$

Not available

230

Husqvarna 601001793

DOOR, ACCESS

$

$

Not available

232

Husqvarna 601001794

SCREW #10-16 X .75

$

$

Not available
