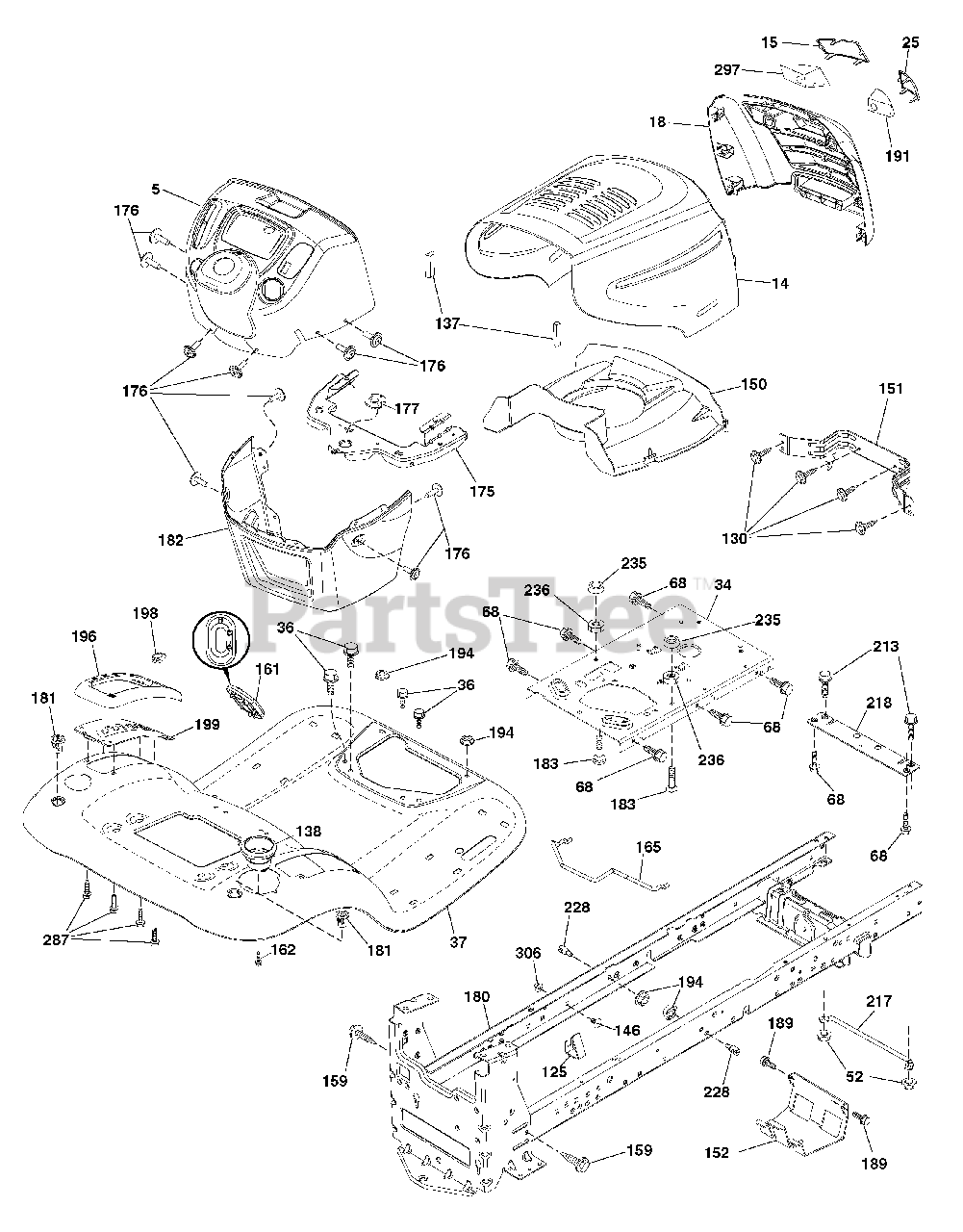

ST 2046 (2691202-00) - Snapper 46" Lawn Tractor, 20hp Chassis Group Parts Diagram

46" Lawn Tractor, 20hp

Chassis Group Parts Diagram

  • Title

5

Snapper 705249

Dash

$102.99

$

Usually ships in 2-12 days

0

14

Snapper 705308

Hood

$253.99

$

Usually ships in 2-12 days

0

15

Snapper 705739

Lens Grille LH

$13.99

$

Usually ships in 2-12 days

0

18

Snapper 705294

Grille

$210.99

$

Usually ships in 2-12 days

0

25

Snapper 705295

Lens Grille RH

$10.99

$

Usually ships in 2-12 days

0

34

Snapper 705268

Plate Engine

$66.99

$

Usually ships in 2-12 days

0

36

Snapper 705324

Screw 5/16-18 x 3/4

$5.49

$

Usually ships in 2-12 days

0

37

Snapper 705312

Fender

$540.99

$

Usually ships in 2-12 days

0

52

Snapper 705349

Nut Crownlock 5/16-18

$9.99

$

In Stock, Qty 5

0

68

Snapper 705326

Screw THDROL 5/16-18 x 1/2

$4.99

$

Usually ships in 2-12 days

0

125

Snapper 705286

Clip Fuel Line

$4.99

$

Usually ships in 2-12 days

0

130

Snapper 705233

Screw #10 x 0.750 BOS Thread

$4.99

$

Usually ships in 2-12 days

0

137

Snapper 705045

Bumper Hood

$12.99

$

Usually ships in 2-12 days

0

138

Snapper 705428

Cupholder

$11.99

$

Usually ships in 2-12 days

0

146

Snapper 705288

Bolt

$6.99

$

Usually ships in 2-12 days

0

150

Snapper 705247

Duct Heat Hood

$136.99

$

Usually ships in 2-12 days

0

151

Snapper 705178

Bracket Pivot

$51.99

$

Usually ships in 2-12 days

0

152

Snapper 705129

Shield Browning/Debris

$36.99

$

Usually ships in 2-12 days

0

159

Snapper 705322

Screw 3/8-16 x 3/4

$6.49

$

Usually ships in 2-12 days

0

161

Snapper 705257

Window Fuel

$12.99

$

In Stock, only 1 left!

0

162

Snapper 705019

Screw Hex Wsh Hi-Lo 1/4 x 1/2 unc

$4.99

$

Usually ships in 2-12 days

0

165

Snapper 705101

Support Tank Rear

$33.99

$

Usually ships in 2-12 days

0

175

Snapper 705063

Crossmember

$48.99

$

Usually ships in 2-12 days

0

176

Snapper 705137

Screw 10-24 x 5/8 Wshd Qdrx

$15.99

$

Usually ships in 2-12 days

0

177

Snapper 705091

Bushing Steering

$12.99

$

In Stock, Qty 5

0

180

Snapper 705094

Chassis

$302.99

$

Usually ships in 2-12 days

0

181

Snapper 705433

Bushing Mnt Fend Crgo Blk Tex

$8.99

$

Usually ships in 2-12 days

0

182

Snapper 705060

Dash Lower

$176.99

$

Usually ships in 2-12 days

0

183

Snapper 705360

Bolt Full Thd 5/16-18 x 1-1/4

$5.49

$

Usually ships in 2-12 days

0

189

Snapper 705321

Screw 5/16-18 x 3/4
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

191

Snapper 705297

Insert Lens Reflective RH

$9.99

$

Usually ships in 2-12 days

0

194

Snapper 705352

Nut Lock Hex Flange 5/16-18

$5.99

$

Usually ships in 2-12 days

0

196

Snapper 705265

Console Asm. Deck Lift

$59.99

$

Usually ships in 2-12 days

0

198

Snapper 705260

Indicator Deck Lift

$34.99

$

Usually ships in 2-12 days

0

199

Snapper 705226

Plate Deck Lift

$18.99

$

In Stock, only 1 left!

0

213

Snapper 705363

Bolt Hex Hd. 5/16-18 unc x 3/4

$5.49

$

Usually ships in 2-12 days

0

217

Snapper 705180

Rod Pivot Hood

$5.99

$

Usually ships in 2-12 days

0

218

Snapper 705099

X-Piece Hood Stop

$7.99

$

Usually ships in 2-12 days

0

228

Snapper 705088

Stud Fastener

$12.99

$

In Stock, only 2 left!

0

235

Snapper 705173

Spacer Fender

$6.49

$

Usually ships in 2-12 days

0

236

Snapper 705355

Nut Center Lock 5/16-18 unc

$12.99

$

In Stock, only 1 left!

0

287

Snapper 705328

Screw 1/4-20 x 3/8

$4.99

$

Usually ships in 2-12 days

0

297

Snapper 705296

Insert Lens Reflective LH

$13.99

$

Usually ships in 2-12 days

0

306

Snapper 705353

Nut Lock
(Superseded to 709321)

$9.99

$

Usually ships in 2-12 days

0

--

Snapper 705138

Kit, Bumper

$168.99

$

Usually ships in 2-12 days

0
