ST 200 (25A-282J710) - Cub Cadet Walk-Behind Trimmer (2019) Transmission Parts Diagram

Walk-Behind Trimmer

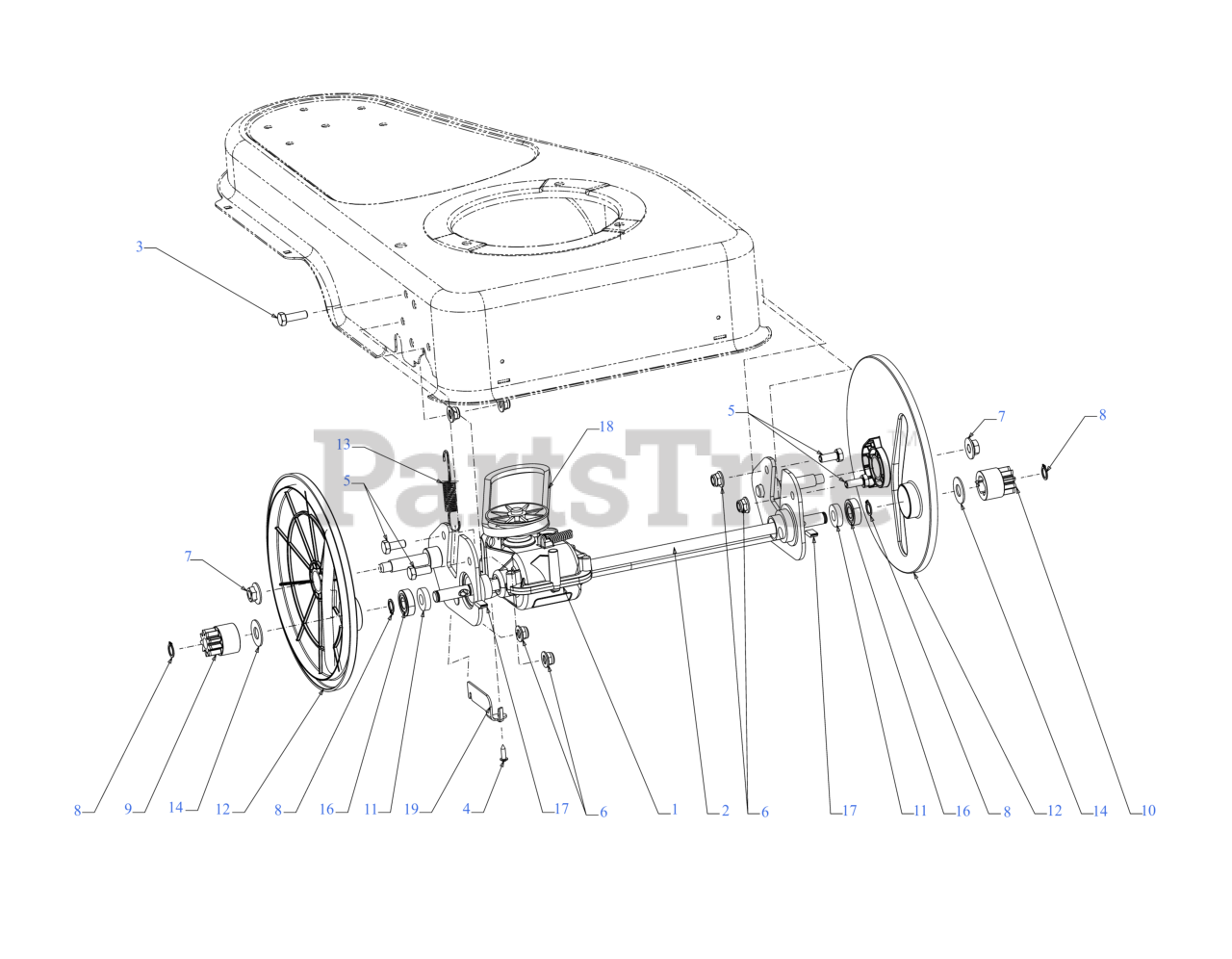

Transmission Parts Diagram

  • Title

1

Cub Cadet 618P07030

TRANSMISSION

$132.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 687-05540

AXLE ASSEMBLY

Note: (Choose color when ordering)

$86.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-05430

PAN HEAD SCREW M4.2X16

$2.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 14

0

8

Cub Cadet 716-04194

EXT SNAP RING 12MM

$2.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 717P05628

SPUR GEAR 9T (LH)

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 717P05687

SPUR GEAR 9T (RH)

$14.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 721-04602

DUST SEAL

$2.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 731-16411

DUST COVER

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 732-1022

EXTENSION SPRING .500 OD x 3.375

$4.99

$

In Stock, only 1 left!

0

14

Cub Cadet 736-3084

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 741-04564

BALL BEARING

$5.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 748-04296

PINION GEAR PAWL

$2.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 754P06274

V-BELT-V 17.716"

$15.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 787-03257

SPRING BRACKET

$4.49

$

Usually ships in 3-6 days

0
