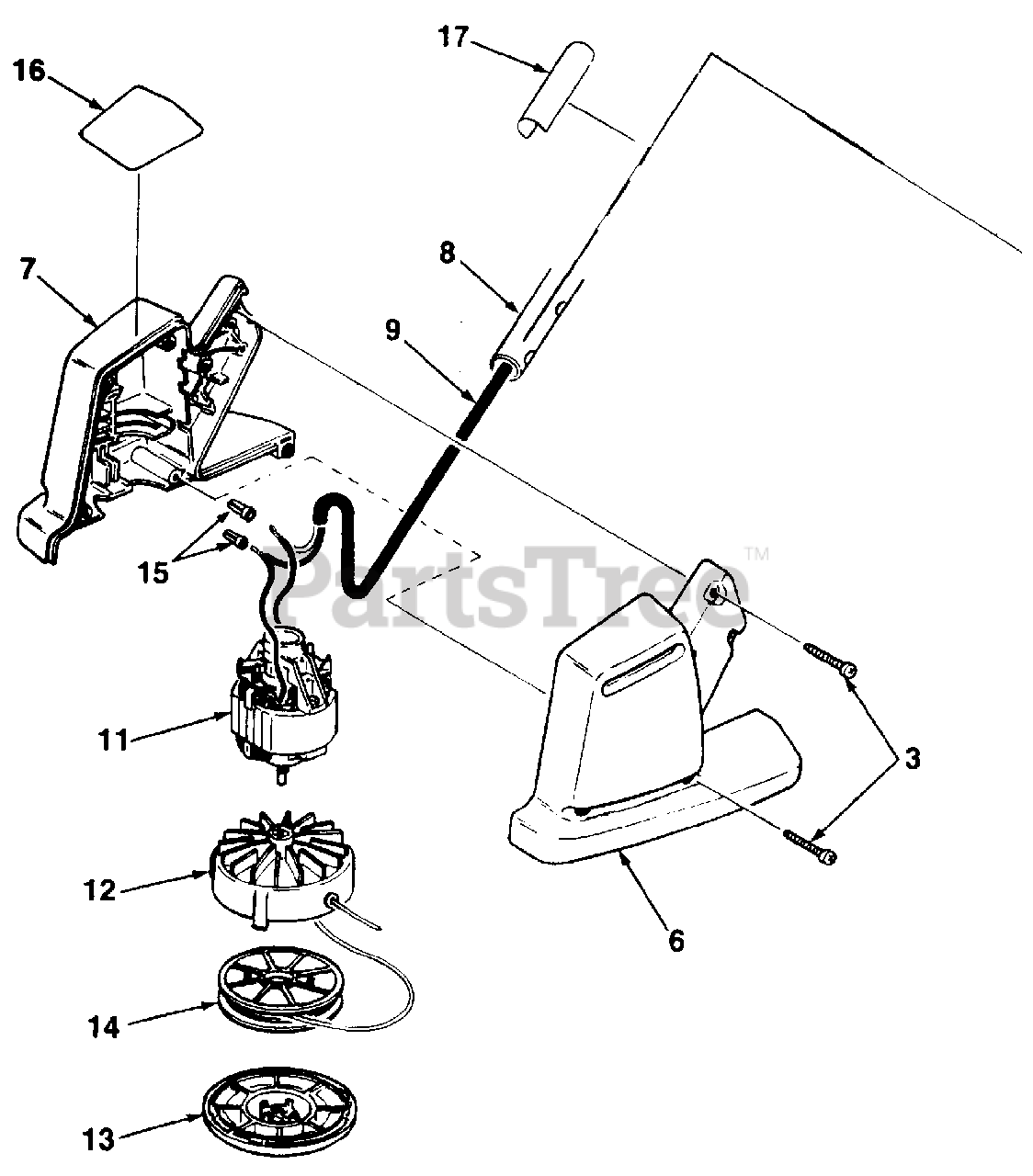

ST 20 (UT-21510) - Homelite String Trimmer, Electric Motor & String Head Parts Diagram

String Trimmer, Electric

Motor & String Head Parts Diagram

  • Title

Homelite 93013

SWITCH

$

$

Currently unavailable

Homelite 93243

SCREW- Thread forming 10-16 x 9/16
(Superseded to 95198)

$

$

Not available

3

Homelite 94065

SCREW- Thread forming 10-16 x 3/4

$

$

Not available

Homelite 95100

HANDLE- Right side

$

$

Currently unavailable

Homelite 95101

HANDLE- Left side

$

$

Currently unavailable

6

Homelite A95104A

HOUSING- Motor (left)

$

$

Currently unavailable

7

Homelite 95105A

HOUSING- Motor (right)

$

$

Currently unavailable

8

Homelite 95108

TUBING

$

$

Not available

9

Homelite 95112

CABLE- Electrical
(Superseded to A98627B)

$10.99

$

Usually ships in 3-7 days

0

Homelite 95119A

CORD SET

$

$

Currently unavailable

11

Homelite 95120A

MOTOR- Electric 120V

$

$

Currently unavailable

12

Homelite A95128B

HEAD- String

$

$

Currently unavailable

13

Homelite 95138A

RETAINER- Spool

$

$

Currently unavailable

14

Homelite DA95159B

SPOOL & STRING

$

$

Currently unavailable

Homelite A96587

KIT- Slide & Spring (not shown)

$

$

Currently unavailable

15

Homelite 95161

CONNECTOR- Wire

$

$

Currently unavailable

16

Homelite 95135

DECAL

$

$

Currently unavailable

17

Homelite 951321

DECAL- Warning

$7.99

$

Usually ships in 3-7 days

0

Homelite 94305

Power Cord (50')

$

$

Not available

Homelite 17634

TOOL- Head removal

$

$

Currently unavailable
