ST 20 - Husqvarna 20" Snow Blower (1995-01) Frame Components Parts Diagram

20" Snow Blower

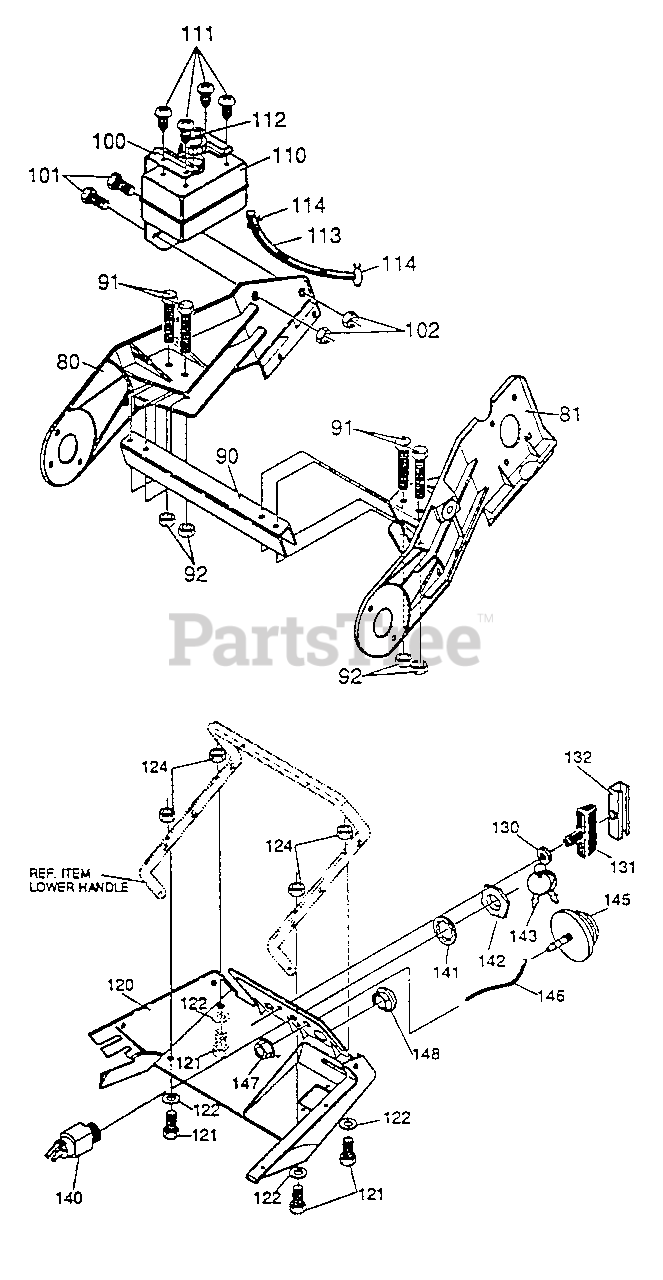

Frame Components Parts Diagram

  • Title
80

Husqvarna 601001345

FRAME, SIDE RH

$

$

Not available

81

Husqvarna 601001346

FRAME, SIDE LH

$

$

Not available

90

Husqvarna 601001347

CHANNEL, FRAME SUPPORT

$

$

Not available

91

Husqvarna 601001348

SCREW, 1/4-20 X 2.00

$

$

Not available

92

Husqvarna 601000062

NUT, 1/4-20 REG HEX CTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

100

Husqvarna 601001349

BRACKET, FUEL TANK

$

$

Not available

101

Husqvarna 601000068

SCREW, 1/4-20 X .75

$

$

Not available

102

Husqvarna 601000062

NUT, 1/4-20 REG HEX CTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

110

Husqvarna 601001350

TANK, FUEL

$

$

Not available

111

Husqvarna 601001351

SCREW, 1/4-14 X .88

$

$

Not available

112

Husqvarna 601001352

CAP, GAS TANK 2CY

$

$

Not available

113

Husqvarna 601001353

TUBING, GAS LINE

$

$

Not available

114

Husqvarna 601000554

CLAMP, HOSE

$

$

Not available

120

Husqvarna 601001354

COVER, BOTTOM

$

$

Not available

121

Husqvarna 601000069

SCREW, 1/4-20 X 1.25
(Superseded to 601001857)

$

$

Not available

122

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

124

Husqvarna 601000062

NUT, 1/4-20 REG HEX CTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

130

Husqvarna 601001355

GROMMET & WASHER, ROPE GUIDE

$

$

Not available

131

Husqvarna 601001356

KNOB, SHORT

$

$

Not available

132

Husqvarna 601001357

INSERT METAL, KNOB

$

$

Not available

140

Husqvarna 601001358

SWITCH, IGNIT

$

$

Not available

141

Husqvarna 601001359

WASHER, REG INTLK.

$

$

Not available

142

Husqvarna 601001360

NUT, 5/8-32 HXHD IGN SWITCH

$

$

Not available

143

Husqvarna 601001361

2 KEYS & RING

$

$

Not available

145

Husqvarna 601001362

PRIMER, ENGINE

$

$

Not available

146

Husqvarna 601001363

HOSE, PRIM

$

$

Not available

147

Husqvarna 601000102

NUT, 1/4-20 REG HEX KEPS

$

$

Not available

148

Husqvarna 601001364

PLUG 2", DIA. BLACK DOME

$

$

Not available
