ST 20 E - Husqvarna 20" Snow Blower (1995-01) Handle Parts Diagram

20" Snow Blower

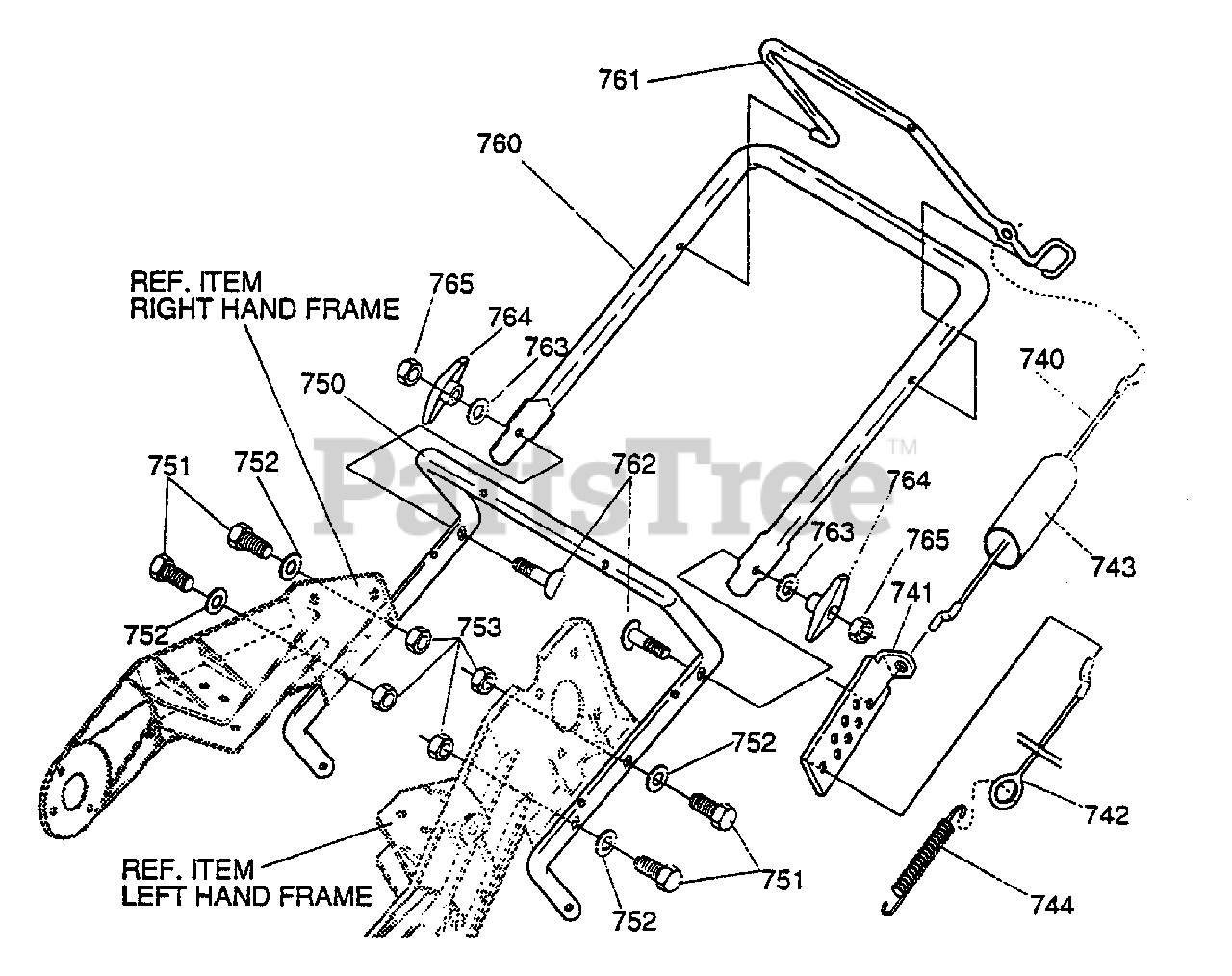

Handle Parts Diagram

  • Title

740

Husqvarna 601001392

CABLE, UPPER CONTROL

$

$

Not available

741

Husqvarna 601001393

BRACKET, CABLE ADJ

$

$

Not available

742

Husqvarna 601001394

CABLE, LOWER CONTROL

$

$

Not available

743

Husqvarna 601001395

BOOT, CLUTCH SPRING

$

$

Not available

744

Husqvarna 601001396

SPRING, EXTERNAL

$

$

Not available

750

Husqvarna 601001397

HANDLE, LOWER

$

$

Not available

751

Husqvarna 601000069

SCREW, 1/4-20 X 1.25
(Superseded to 601001857)

$

$

Not available

752

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

753

Husqvarna 601000062

NUT, 1/4-20 REG HEX CTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

760

Husqvarna 601001398

HANDLE, UPPER

$

$

Not available

761

Husqvarna 601001399

BAIL, CONTROL

$

$

Not available

762

Husqvarna 601001400

BOLT, 5/16-18 X 1.75
(Superseded to 601002150)

$

$

Not available

763

Husqvarna 601001401

WASHER, FORM .344 ID 1.0

$

$

Not available

764

Husqvarna 601000084

KNOB, T W/NUT

$

$

Not available

765

Husqvarna 601000012

NUT, 5/16-18 REG HEX

$

$

Not available
