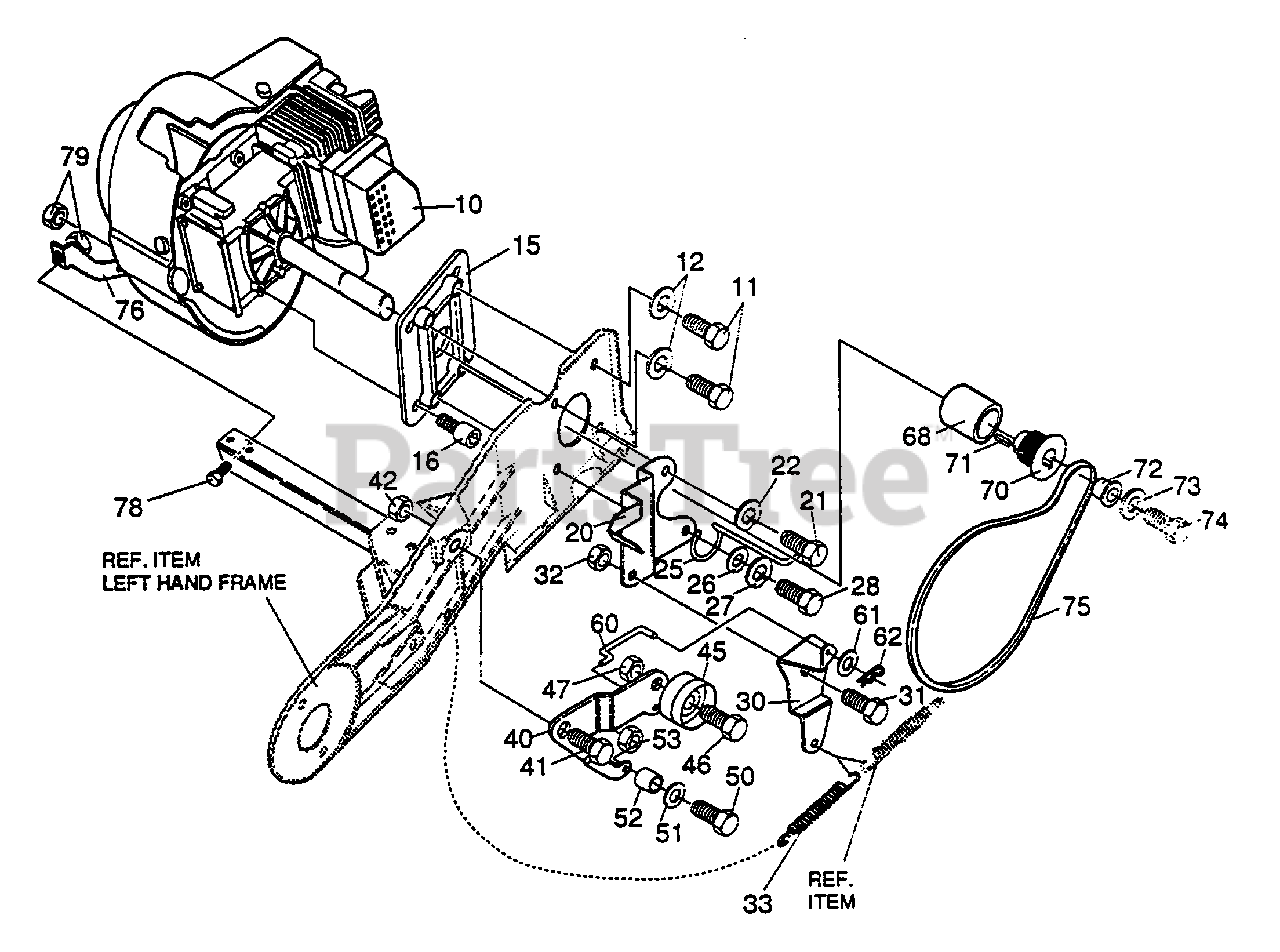

ST 20 E - Husqvarna 20" Snow Blower (1995-01) Engine Parts Diagram

20" Snow Blower

Engine Parts Diagram

  • Title

10

ENGINE, 4HP 2CYL

Note: (SEE ENGINE MANUAL)

$

$

Not available

11

Husqvarna 601001323

SCREW, 5/16-24 X .63

$

$

Not available

12

Husqvarna 601001324

WASHER, HVSPTLK

$

$

Not available

15

Husqvarna 601000078

PLATE, ENGINE ADAPTER

$

$

Not available

16

Husqvarna 601000023

SCREW, 5/16-24 X 5/8

$

$

Not available

20

Husqvarna 601001325

BRKT, IDLER PIVOT

$

$

Not available

21

Husqvarna 601000078

SCREW, 5/16-24X .63

$

$

Not available

22

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

25

Husqvarna 601001326

GUIDE, BELT

$

$

Not available

26

Husqvarna 601000019

FLATWASHER .344 X .69 X .065

$3.49

$

In Stock, only 1 left!

0

27

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

28

Husqvarna 601001327

SCREW, 5/16-24 X 1.00

$

$

Not available

30

Husqvarna 601001328

ARM, IDLER PIVOT

$

$

Not available

31

Husqvarna 601001329

SHOULDER BOLT, .500 X .182

$

$

Not available

32

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTRLK

$6.99

$

In Stock, only 2 left!

0

33

Husqvarna 601001330

SPRING, EXT

$

$

Not available

40

Husqvarna 601001331

ARM, IDLER

$

$

Not available

41

Husqvarna 601001332

BOLT, .500 X .182
(Superseded to 601001329)

$

$

Not available

42

Husqvarna 601000059

NUT, 5/16-18 REG HEX CTRLK

$6.99

$

In Stock, only 2 left!

0

45

Husqvarna 601001333

PULLEY, IDLER

$

$

Not available

46

Husqvarna 601001334

SCREW, 3/8-16 X 1.50

$

$

Not available

47

Husqvarna 601001335

NUT, 3/8-16 HEX CTRLK JAM

$

$

Not available

50

Husqvarna 601001293

SCREW, 1/4-20 X 1.50

$

$

Not available

51

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

52

Husqvarna 601001336

ROLLER, BELT

$

$

Not available

53

Husqvarna 601000062

NUT, 1/4-20 REG HEX CTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

60

Husqvarna 601001337

ROD, CLUTCH

$

$

Not available

61

Husqvarna 601000533

FLATWASHER .188 X .38 X .040

$

$

Not available

62

Husqvarna 601000026

PIN, COTTER

$

$

Not available

68

OPTIONAL

$

$

Not available

70

Husqvarna 601001338

PULLEY, ENGINE 4.5

$

$

Not available

71

Husqvarna 601001339

KEY, SQUARE

$

$

Not available

72

Husqvarna 601001340

PLUG, ENGINE PULLEY

$

$

Not available

73

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

74

Husqvarna 601001341

SCREW, 5/16-24 X 1.00
(Superseded to 601001327)

$

$

Not available

75

Husqvarna 601001342

BELT, POLY-V

$

$

Not available

76

Husqvarna 601001343

BRACKET, ENGINE SUPPORT

$

$

Not available

78

Husqvarna 601001006

SCREW, 5/16-18 X .63

$

$

Not available

79

Husqvarna 601000059

NUT 5/16-18 REG HEX CTRLK

$6.99

$

In Stock, only 2 left!

0
