ST 20 E - Husqvarna 20" Snow Blower (1995-01) Chute Control Rod Parts Diagram

20" Snow Blower

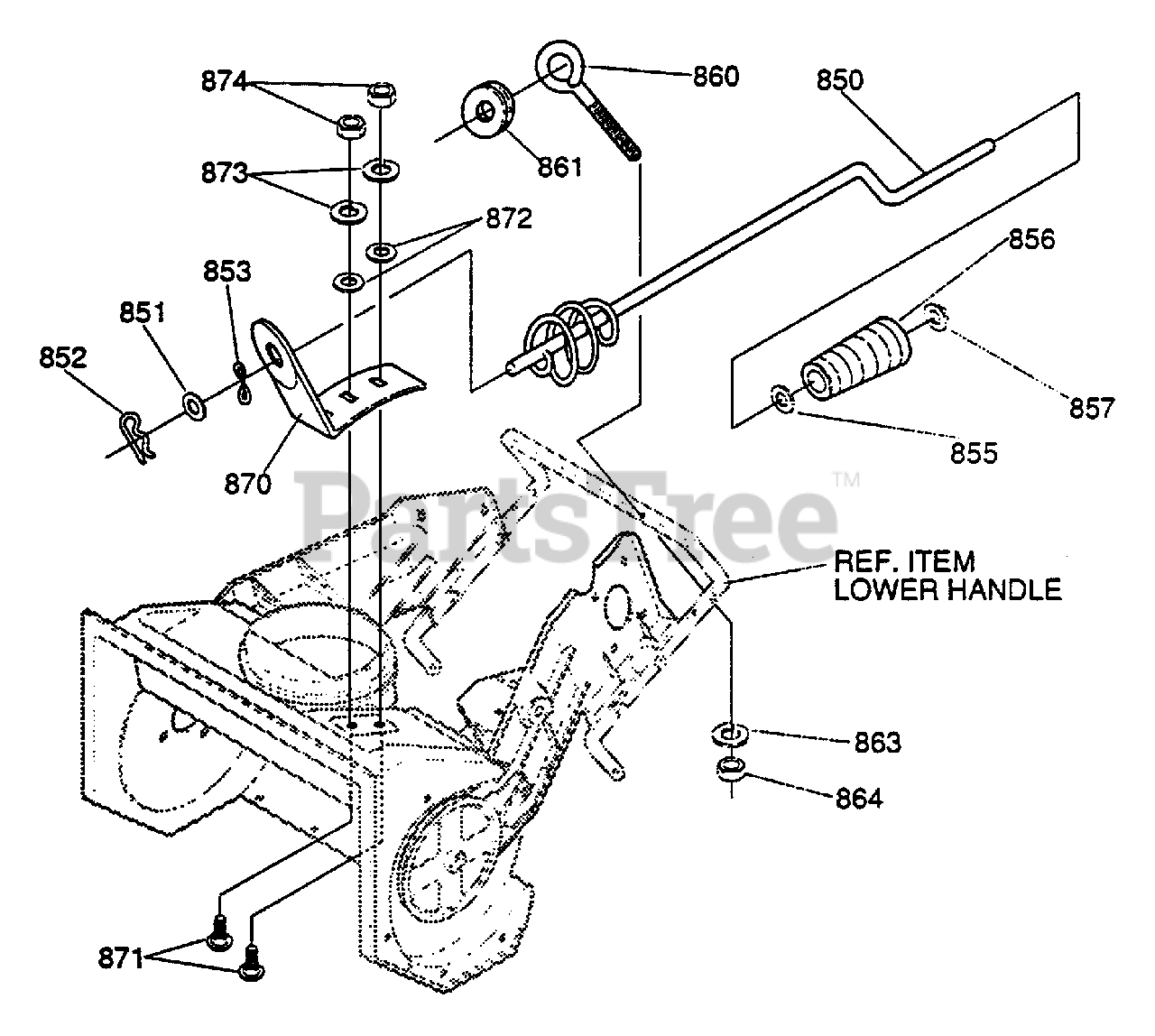

Chute Control Rod Parts Diagram

  • Title
850

Husqvarna 601001402

ROD, ASSY UPR CHUTE CTRL

$

$

Not available

851

Husqvarna 601000020

WASHER, FLAT

$

$

Not available

852

Husqvarna 601001403

PIN, COTTER

$

$

Not available

853

Husqvarna 601001404

WASHER, CURVED SPRING

$

$

Not available

855

Husqvarna 601000020

WASHER, FLAT

$

$

Not available

856

Husqvarna 601001405

KNOB, SLEEVE

$

$

Not available

857

Husqvarna 601001406

CAP NUT, PUSH-ON

$

$

Not available

860

$

$

Not available

861

Husqvarna 601001408

GROMMET, EYE BOLT

$

$

Not available

863

Husqvarna 601000015

WASHER, REG SPTLK

$

$

Not available

864

Husqvarna 601001409

NUT, 3/8-16

$

$

Not available

870

Husqvarna 601001410

BRACKET, CHUTE ROTATE

$

$

Not available

871

Husqvarna 601001423

BOLT, 5/16-18 X .63

$

$

Not available

872

Husqvarna 601001412

WASHER, FLAT

$

$

Not available

873

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

874

Husqvarna 601001424

NUT, 5/16-18

$

$

Not available
