ST 1942 (2691569-00) (960440015) - Snapper 42" Lawn Tractor, Hydro Drive, 19hp Steering Group Parts Diagram

42" Lawn Tractor, Hydro Drive, 19hp

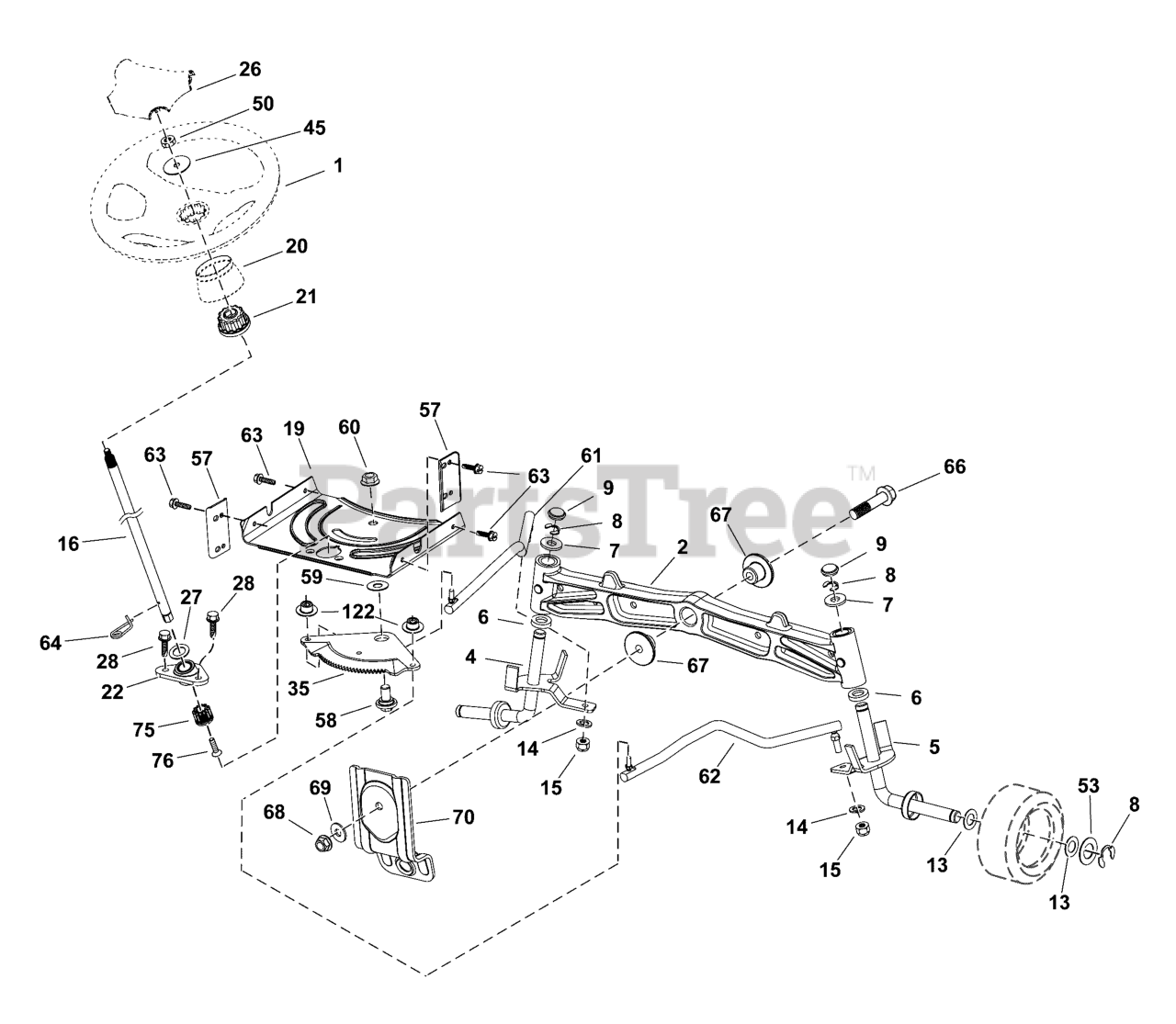

Steering Group Parts Diagram

  • Title

1

Snapper 705241

Wheel, Steering

$161.99

$

Usually ships in 2-12 days

0

2

Snapper 84004247

ASSEMBLY, Front Axle

$336.99

$

Usually ships in 2-12 days

0

4

Snapper 705151

Spindle Asm., LH

$101.99

$

In Stock, only 1 left!

0

5

Snapper 705152

Spindle Asm., RH

$69.99

$

In Stock, only 2 left!

0

6

Snapper 84004242

BEARING, Race Thrust Harden

$22.99

$

In Stock, only 1 left!

0

7

Snapper 704995

Washer 25/32 x 1-5/8 x 16 Ga.

$7.99

$

In Stock, Qty 6

0

8

Snapper 705319

RING, Clip #T5304-75

$6.49

$

In Stock, Qty 10

0

9

Snapper 705313

Cap, Spindle

$

$

Not available

13

Snapper 704996

Washer 25/32 x 1-1/4 x 16 Ga.

$7.99

$

In Stock, Qty 20+

0

14

Snapper 84004024

WASHER, 3/8, SLW ZD

$9.99

$

Usually ships in 2-12 days

0

15

Snapper 705348

Nut, Crown Lock 3/8-24 unf

$3.99

$

Usually ships in 2-12 days

0

16

Snapper 84004292

SHAFT, Steering

$

$

Currently unavailable

19

Snapper 705081

Plate Steering

$36.99

$

In Stock, only 1 left!

0

20

Snapper 705250

Boot, Steering

$12.99

$

Usually ships in 2-12 days

0

21

Snapper 84004295

ADAPTER, Steering Wheel

$

$

Currently unavailable

22

Snapper 84004296

BEARING

$

$

Currently unavailable

26

Snapper 705242

Insert, Wheel Steering

$10.99

$

Usually ships in 2-12 days

0

27

Snapper 84002497

WASHER

$

$

Currently unavailable

28

Snapper 705322

Screw 3/8-16 x .75 Smgml Tap/R.Z

$6.49

$

Usually ships in 2-12 days

0

35

Snapper 705082

Gear, Sector Plate

$64.99

$

Usually ships in 2-12 days

0

45

Snapper 84002498

COVER-CYLINDER HEAD

$31.99

$

Usually ships in 2-12 days

0

50

Snapper 84004161

NUT, 3/8-16, Lock

$12.99

$

In Stock, only 1 left!

0

53

Snapper 705052

WASHER, Hardened

$10.99

$

In Stock, only 1 left!

0

57

Snapper 705176

Bracket Upstop

$6.49

$

Usually ships in 2-12 days

0

58

Snapper 705086

Bolt Shoulder Sector Pivot CFM

$13.99

$

In Stock, only 1 left!

0

59

Snapper 705087

Washer Thrust Sector Steering

$9.99

$

In Stock, only 1 left!

0

60

Snapper 705358

Nut Flange Lock 5/8-11

$6.99

$

In Stock, only 2 left!

0

61

Snapper 705084

Draglink, LH

$121.99

$

In Stock, only 2 left!

0

62

Snapper 705085

Draglink, RH

$121.99

$

Usually ships in 2-12 days

0

63

Snapper 705321

Screw 5/16-18 X 3/4 Smgml Tap/Bl
(Superseded to 709742)

$8.99

$

Usually ships in 2-12 days

0

64

Snapper 705132

Retainer Clip Spring Steering

$8.99

$

Usually ships in 2-12 days

0

66

Snapper 705339

Bolt Hex Fghd 7/16-14 x 3 Serr

$5.99

$

Usually ships in 2-12 days

0

67

Snapper 705083

Bushing PM Front Axle

$12.99

$

Usually ships in 2-12 days

0

68

Snapper 705354

Nut Lock Flange 7/16-14 Gr. 5

$6.49

$

Usually ships in 2-12 days

0

69

Snapper 705125

Washer 1.5 x .505 x .118

$5.49

$

Usually ships in 2-12 days

0

70

Snapper 84004320

BRACKET, Deck Susp. Front

$

$

Currently unavailable

75

Snapper 84004299

PINION

$

$

Currently unavailable

76

Snapper 84004300

SCREW, Socket Head

$

$

Currently unavailable

122

Snapper 705261

Cap Gear Sector

$4.49

$

In Stock, only 1 left!

0
