ST-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 1465 - 9999) ELECTRICAL SYSTEM Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

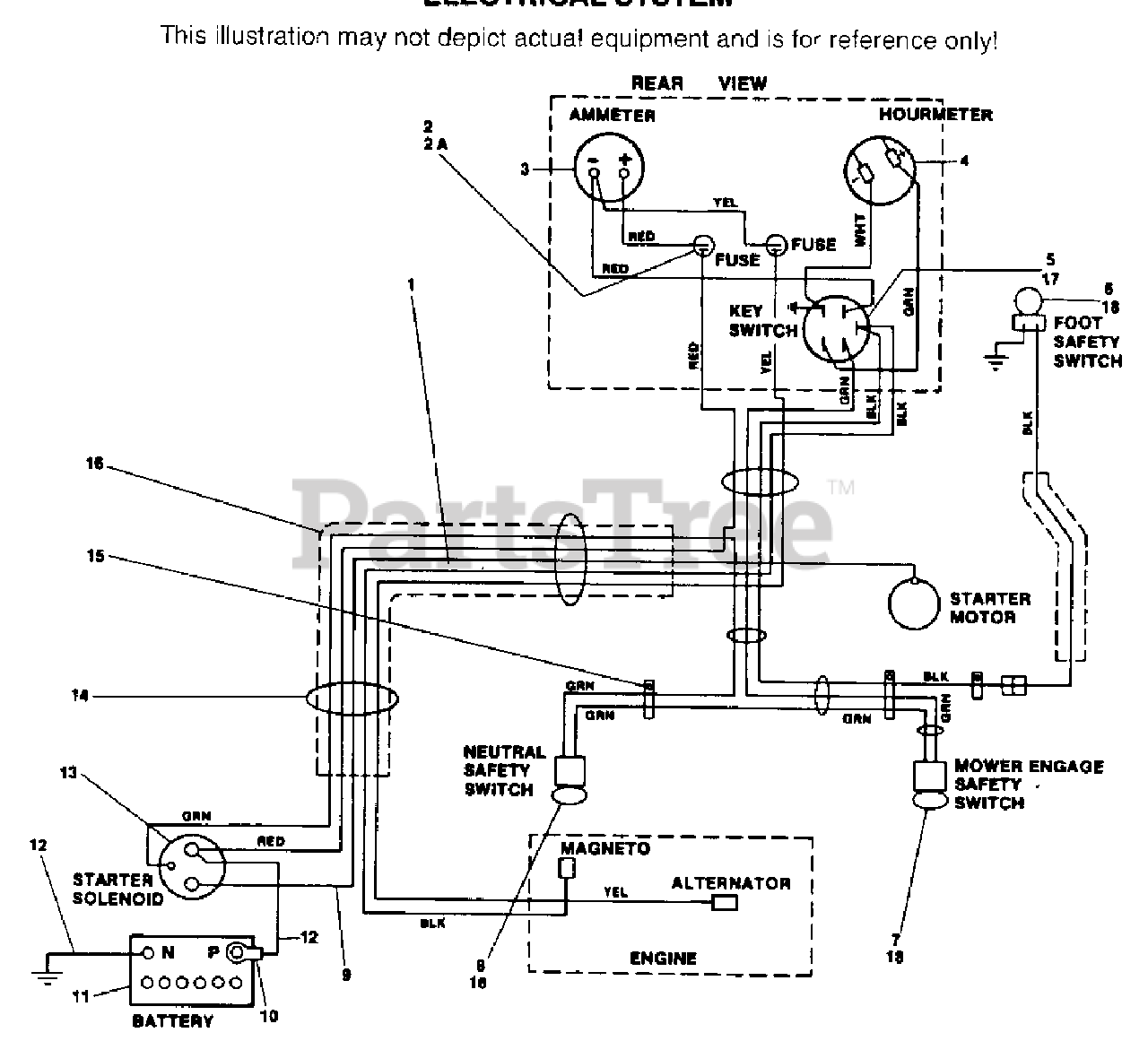

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 48259

WIRING HARNESS, COMPLETE

$

$

Not available

2

Scag 48024

FUSE HOLDER

$10.99

$

In Stock, only 1 left!

0

2A

Scag 48025

FUSE, 20

$

$

Not available

3

Scag 48022

AMMETER
(Superseded to 487596)

$64.99

$

Usually ships in 2-12 days

0

4

Scag 48023

HOUR METER

$157.99

$

Usually ships in 2-12 days

0

5

Scag 48017

KEY SWITCH

$22.99

$

Usually ships in 2-12 days

0

6

Scag 48026

FOOT SAFETY SWITCH
(Superseded to 481476)

$56.99

$

Usually ships in 2-12 days

0

7

Scag 48019

MOWER ENGAGE SAFETY SWITCH

$

$

Not available

8

Scag 48021

NEUTRAL SAFETY SWITCH

$33.99

$

In Stock, only 1 left!

0

9

Scag 48029-02

BATTERY CABLE

$15.99

$

Usually ships in 2-12 days

0

10

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

11

Scag 48015

BATTERY

$

$

Not available

12

Scag 48029-01

BATTERY CABLE

$9.99

$

Usually ships in 2-12 days

0

13

Scag 48016

STARTER SOLENOID

$86.99

$

Usually ships in 2-12 days

0

14

Scag 48028

CABLE TIE
(Superseded to 48028-01)

$

$

Not available

15

Scag 48030

CABLE CLAMP
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

16

Scag 48033

PLASTIC CONDUIT

$

$

Not available

17

Scag 48018

CONNECTOR, STARTER SWITCH

$1.49

$

Usually ships in 2-12 days

0

18

Scag 48020

CONNECTOR, SAFETY SWITCH

$1.49

$

Usually ships in 2-12 days

0
