ST-18KH - Scag Three-Wheel Riding Mower, 18hp Kohler (SN: 1001 - 1464) ENGINE DECK Parts Diagram

Three-Wheel Riding Mower, 18hp Kohler

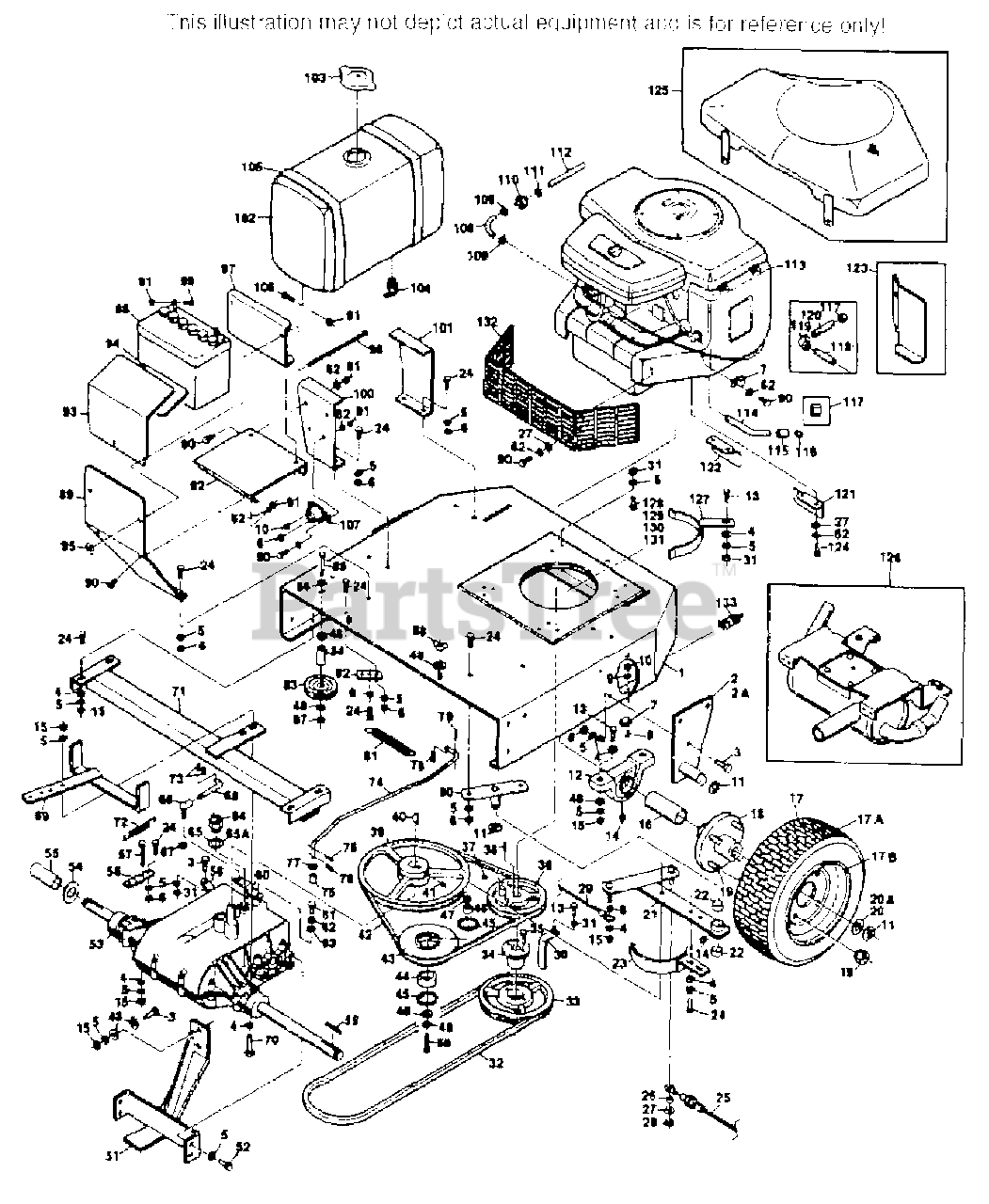

ENGINE DECK Parts Diagram

  • Title

2

Scag 45027-01

HITCH BRACKET WLD. - RH

$

$

Not available

2A

Scag 45027-02

HITCH BRACKET WLD. - LH

$

$

Not available

3

HEX HEAD BOLT, 5/16-18 X 1

$

$

Not available

4

WASHER, 11/32 X 11/16 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

5

LOCKWASHER, SPRING, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

6

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

7

Scag 48030-01

CLAMP
(Superseded to 48030-17)

$3.49

$

Usually ships in 2-12 days

0

8

PHILLIPS WASHER HD. SCREW, #10-32 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

9

LOCKWASHER, #10 EXT TOOTH

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

10

HEX NUT, #10-32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

11

Scag 04050-02

RETAINING RING, 3/4 EXT."E"

$0.99

$

In Stock, Qty 7

0

12

Scag 48104

BEARING, PILLOW BLOCK
(Superseded to 48104-01)

$

$

Not available

13

HEX HEAD BOLT, 5/16-18 X 1-1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

Scag 48114-01

GREASE FITTING, STR., 1/4-28
(Superseded to 48114-04)

$0.99

$

In Stock, Qty 20+

0

15

HEX LOCK NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

17

Scag 48004-01

DRIVE WHEEL ASSEMBLY(INCL. 17A-19)
(Superseded to 48004)

$

$

Not available

17A

Scag 48004-02

TIRE, 16 X 6.50-8, 2-PLY
(Superseded to 481893)

$217.99

$

Usually ships in 2-12 days

0

17B

Scag 48004-04

RIM
(Superseded to 481890)

$89.99

$

In Stock, only 1 left!

0

18

Scag 48004-05

HUB & FLANGE WLD.(INCL. BOLTS)
(Superseded to 481892)

$

$

Not available

19

Scag 48004-06

BOLT AND NUT

$

$

Not available

20

Scag 04041-08

WASHER, 49/64 X 1-1/4 X 16 GA.

$0.99

$

In Stock, Qty 20+

0

20A

Scag 04042-03

WASHER, 13/16 X 1-3/8 X 3/32

$1.49

$

Usually ships in 2-12 days

0

21

Scag 46144

IDLER ARM WILD.(INCL. 14 & 22)

$

$

Not available

22

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

23

Scag 45014

BELT GUIDE WLD.

$

$

Not available

24

HEX HD. BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

26

Scag 43049

SLEEVE, FOOT CABLE

$5.99

$

Usually ships in 2-12 days

0

27

WASHER, 9/32 X 5/8 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

28

HEX LOCK NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

31

HEX NUT, 5/16-18, ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

33

Scag 48168

PULLEY(INCL. 34 & 35)
(Superseded to 482744)

$

$

Not available

34

Scag 48141

TAPER HUB

$29.99

$

In Stock, only 1 left!

0

35

HEX HD, BOLT, 1/4-20 X 1-3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

36

Scag 48063

PULLEY

$75.99

$

Usually ships in 2-12 days

0

37

SET SCREW, HEX SOCKET CUP PT.,

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

5/16-18 X 1-1/4

$

$

Not available

38

Scag 04063-03

KEY, 1/4 X 1/4 X 2-1/2

$2.49

$

Usually ships in 2-12 days

0

39

Scag 48064

PULLEY, TRANSAXLE

$

$

Not available

40

Scag 04063-07

KEY, WOODRUFF #9

$0.99

$

In Stock, Qty 12

0

41

SETSCREW HEX SOCKET CUP PT., 5/16-18 X 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

43

Scag 48065

PULLEY, IDLER

$

$

Not available

44

Scag 48102

BEARING

$11.99

$

Usually ships in 2-12 days

0

45

Scag 04050-06

RETAINING RING, 1-9/16 INT. BASIC

$2.49

$

Usually ships in 2-12 days

0

46

Scag 43044

SLEEVE

$

$

Not available

47

Scag 43039

SPACER

$

$

Not available

48

WASHER, 25/64 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

49

LOCKWASHER, SPRING, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

50

HEX HD. BOLT, 3/8-16 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

52

HEX HEAD BOLT, TAPTITE, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

54

Scag 04042-02

THRUST WASHER

$3.49

$

Usually ships in 2-12 days

0

56

Scag 42075

SPACER, TRANSAXLE

$

$

Not available

57

HEX HD. BOLT, 5/16-18 X 2-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

59

Scag 04063-04

KEY, 3/16 X 3/16 X 2-1/2

$

$

Not available

60

Scag 42061

SHIFT LEVER

$

$

Not available

61

Scag 04001-55

HEX HD. BOLT, 1/4-28 X 3/4 GRD. 8

$0.99

$

Usually ships in 2-12 days

0

62

LOCKWASHER, SPRING, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

63

Scag 04043-01

WASHER, 17/64 X 7/8 X 1/8 H.T.

$39.99

$

In Stock, only 3 left!

0

64

Scag 48021

NEUTRAL SAFETY SWITCH

$33.99

$

In Stock, only 1 left!

0

65

Scag 48122-01

FIBER WASHER, .010

$0.99

$

Usually ships in 2-12 days

0

65A

Scag 48122-02

FIBER WASHER, .020

$0.99

$

Usually ships in 2-12 days

0

66

Scag 48118

BALL JOINT

$24.99

$

Usually ships in 2-12 days

0

67

Scag 04021-06

HEX LOCK NUT, 3/8-24

$

$

Currently unavailable

68

Scag 43029

SHIFT CONNECTOR ROD

$

$

Not available

70

HEX HEAD BOLT, 5/16-18 X 3

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

72

Scag 48052

SPRING, BRAKE RETURN

$

$

Not available

73

Scag 04062-02

HAIR PIN, SMALL

$0.99

$

In Stock, Qty 20+

0

75

Scag 43043

SLEEVE

$12.99

$

Usually ships in 2-12 days

0

76

COTTER PIN, 3/32 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

78

Scag 04062-01

HAIR PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

79

COTTER PIN, 3/32 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

80

Scag 45015

PIVOT BASE WLD.

$

$

Not available

81

Scag 48051

SPRING, BELT CLUTCH

$5.49

$

In Stock, only 2 left!

0

82

Scag 42060

BRACKET, SPRING MOUNTING

$

$

Not available

83

Scag 48066

PULLEY, BRAKE CABLE

$

$

Not available

84

Scag 43024

SPACER, PULLEY

$

$

Not available

85

HEX HEAD BOLT, 3/8-16 X 3

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

86

WASHER, 13/32 X 1-1/2 X 7 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

87

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

88

Scag 04022-04

WING NUT, 3/8-16, ELASTIC STOP
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

90

HEX HEAD BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

91

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

92

Scag 42188

BATTERY SHELF

$

$

Not available

93

Scag 42024

BATTERY COVER

$

$

Not available

94

Scag 48099

BATTERY COVER PAD

$5.99

$

Usually ships in 2-12 days

0

95

Scag 04022-01

WING NUT, 1/4-20, ELASTIC STOP
(Superseded to 04029-01)

$2.49

$

In Stock, Qty 19

0

96

Scag 04003-01

CARRIAGE BOLT, 1/4-20 X 6
(Superseded to 04003-39)

$1.49

$

In Stock, Qty 10

0

97

Scag 42055

BATTERY CLAMP

$

$

Not available

98

Scag 48015

BATTERY

$

$

Not available

99

HEX HEAD BOLT, 1/4-20 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

102

Scag 48054

FUEL TANK

$

$

Not available

103

Scag 48055

FUEL TANK CAP

$

$

Not available

104

Scag 48056

FUEL SHUT-OFF VALVE

$

$

Not available

105

Scag 42048

FUEL TANK STRAP

$

$

Not available

106

RD. HEAD MACH. SCREW, 1/4-20 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

110

Scag 48057-01

FUEL FILTER
(Superseded to 48057)

$

$

Not available

111

Scag 48059-01

FUEL HOSE CLAMP

$0.99

$

In Stock, Qty 7

0

133

Scag 48019

SAFETY SWITCH, BLADE CLUTCH

$

$

Not available
