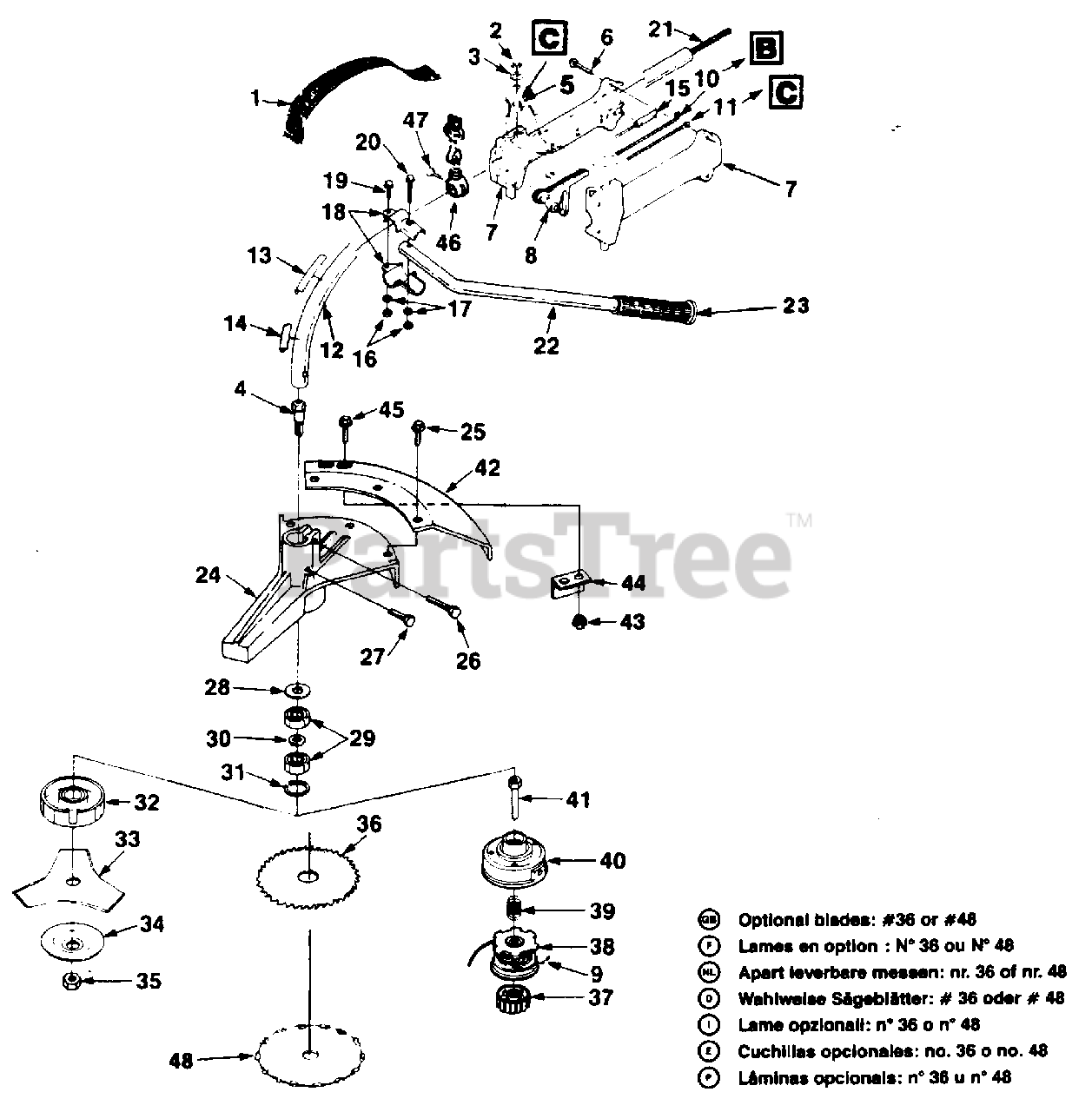

ST 185 (UT-15044-1A) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

Boom & Head Parts Diagram

  • Title

1

Homelite DA92703B

HARNESS w/CONNECTOR

$

$

Currently unavailable

2

Homelite 72084A1

NUT
(Superseded to UP04146)

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 95231

PLATE- Indicating
(Superseded to UP04266)

$

$

Not available

4

Homelite 98834A

SHAFT- Spindle
(Superseded to A04457A)

$

$

Currently unavailable

5

Homelite 93653

SWITCH- Toggle
(Superseded to UP04261)

$

$

Not available

6

Homelite 82368

SCREW- Plastite (#8 x 3/4")
(Superseded to PS00055)

$

$

Not available

7

Homelite A00879

HANDLE GRIP ASSEMBLY

$

$

Not available

8

Homelite 98772A

TRIGGER
(Superseded to UP04558)

$

$

Not available

9

Homelite DA97952B

LINE- Replacement (.080 Dia.) (100 Ft.)
(Superseded to D06509A)

$

$

Not available

10

Homelite A98918

LEAD- Electrical

$

$

Not available

11

Homelite A98919

LEAD- Ground

$

$

Currently unavailable

12

Homelite A00112C

HOUSING- Driveshaft

$

$

Currently unavailable

13

Homelite 989241

DECAL- Starting Instructions

$

$

Currently unavailable

14

Homelite 02985

DECAL- Warning
(Superseded to 983751001)

$

$

Not available

15

Homelite A03006

CABLE- Throttle

$

$

Not available

16

Homelite 81267

NUT (1/4-20)

$

$

Not available

17

Homelite 83061

WASHER (1/4")

$

$

Not available

18

Homelite 00422

CLAMP- Handle bar
(Superseded to 099075001007)

$1.49

$

In Stock, only 1 left!

0

19

Homelite 88078

SCREW (1/4-20 x 1")

$

$

Not available

20

Homelite 88071

SCREW (1/4-20 x 1 1/2")

$

$

Not available

21

Homelite 98818

SHAFT- Flexible

$

$

Not available

22

Homelite A97709A

HANDLE BAR

$

$

Not available

23

Homelite 94474B

GRIP

$

$

Not available

24

Homelite 987321B

HOUSING- Lower bearing
(Superseded to A04457A)

$

$

Currently unavailable

25

Homelite 806813

SCREW (1/4-20 x 1/2")

$

$

Not available

26

Homelite 88078

SCREW (1/4-20 x 1")

$

$

Not available

27

Homelite 80869

SCREW (10-24 x 1/2")

$

$

Not available

28

Homelite 98838

WASHER- Thrust

$

$

Not available

29

Homelite 98798

BEARING- Ball
(Superseded to UP05589)

$14.99

$

Usually ships in 3-7 days

0

30

Homelite 98839

SPACER- Bearing

$

$

Not available

31

Homelite 98799

RING- Retaining

$4.99

$

In Stock, only 1 left!

0

32

Homelite 988351A

WASHER- Flange
(Superseded to UP07278)

$

$

Not available

33

Homelite D98717A

BLADE- Tri-Arc (8")
(Superseded to D98717C)

$21.99

$

In Stock, only 1 left!

0

34

Homelite 98836

WASHER- Cupped

$17.99

$

Usually ships in 3-7 days

0

35

Homelite 81282

NUT- Hex locking (R.H.)
(Superseded to UP03492)

$4.99

$

Usually ships in 3-7 days

0

36

Homelite D98935A

BLADE- Saw (8") (optional)

$

$

Currently unavailable

37

Homelite A98866A

RETAINER- Spool (R.H. Thread)
(Superseded to 308042002)

$

$

Not available

38

Homelite DA98912B

SPOOL & STRING (Dual Line)

$

$

Currently unavailable

39

Homelite 98848

SPRING- Compression
(Superseded to UP06526)

$1.99

$

In Stock, only 3 left!

0

40

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

41

Homelite 98849

CONNECTOR- Drive

$30.99

$

Usually ships in 3-7 days

0

42

Homelite 988451

DEFLECTOR- Grass

$

$

Currently unavailable

43

Homelite 81208

NUT (10-32)

$

$

Not available

44

Homelite 98858

BLADE- Cut-off
(Superseded to 07129)

$

$

Not available

45

Homelite 80869

SCREW (10-32 x 3/8")

$

$

Not available

46

Homelite A94442

BRACKET- Hanger

$18.99

$

Usually ships in 3-7 days

0

47

Homelite 82260

SCREW- Thumb (10-24 x 1/2")

$

$

Not available

48

Homelite DA00714A

BLADE- Saw 7" "Machete" (optional)

$

$

Currently unavailable
