ST-17KA - Scag Three-Wheel Riding Mower, 17hp Kawasaki (SN: 1001 - 1270) INSTRUMENT PANEL Parts Diagram

Three-Wheel Riding Mower, 17hp Kawasaki

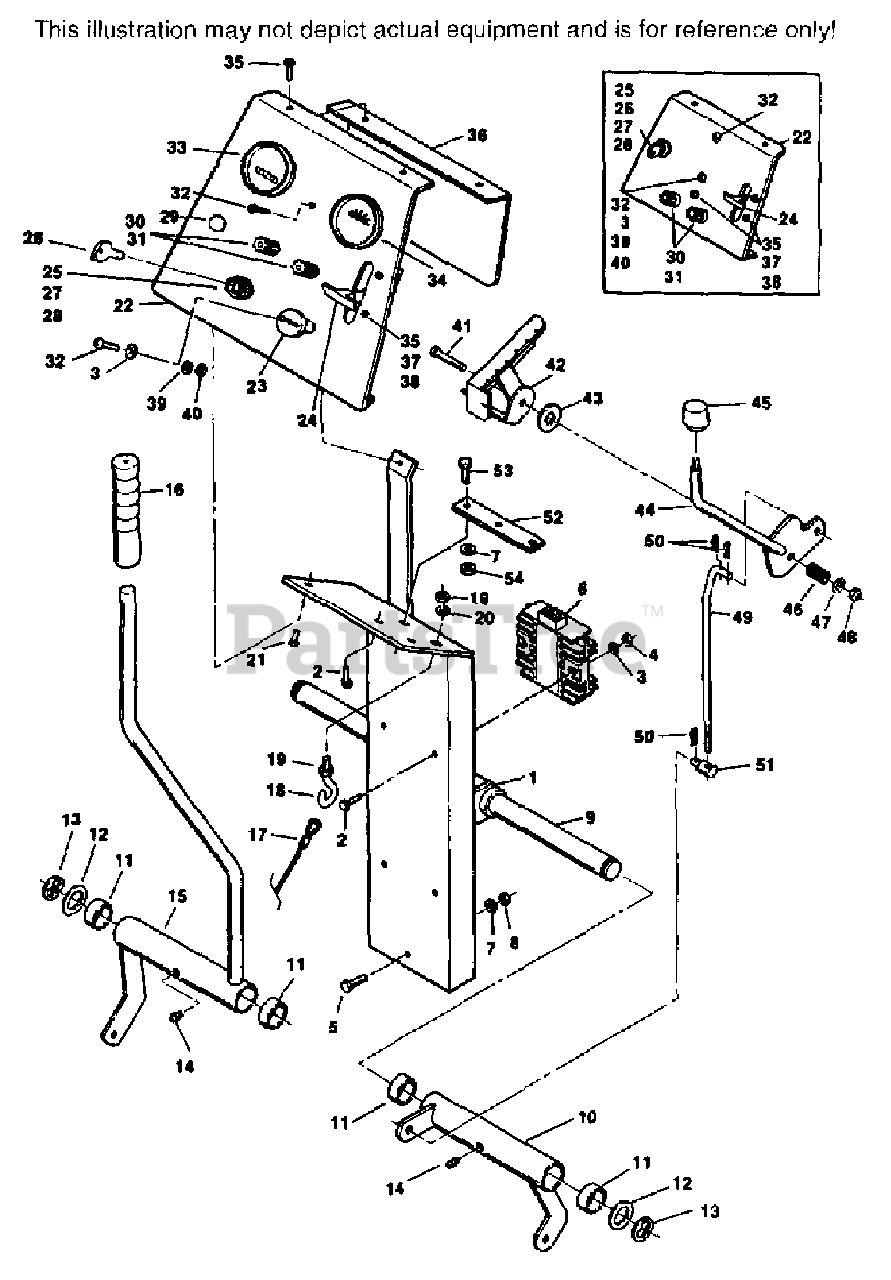

INSTRUMENT PANEL Parts Diagram

  • Title

1

Scag 45025

CONSOLE SUPPORT WLD

$

$

Not available

3

WASHER, 9/32 X 5/8 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

5

HEX HD BOLT, 5/16-18 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

7

LOCKWASHER, 5/16 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

8

HEX LOCK NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

9

Scag 43017

BELL CRANK SHAFT

$

$

Not available

10

Scag 46142

SHIFTER WLD.(INCL. 11 & 14)

$

$

Not available

11

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

12

Scag 04041-08

WASHER, 49/64 X 1-1/4 X 16 GA.

$0.99

$

In Stock, Qty 20+

0

13

Scag 04050-02

RETAINING RING, 3/4 EXT. "E"

$0.99

$

In Stock, Qty 7

0

14

Scag 48114-01

GREASE FITTING, 1/4-28 STR.
(Superseded to 48114-04)

$0.99

$

In Stock, Qty 20+

0

15

Scag 46143

MOWER ENGAGE WLD.(INCL. 11, 14, 16)

$

$

Not available

16

Scag 48093

GRIP, MOWER LEVER

$1.99

$

In Stock, only 1 left!

0

17

Scag 48045

WINCH CABLE ASSEMBLY

$202.99

$

Usually ships in 2-12 days

0

18

Scag 04070-03

EYEBOLT, 3/8-16 X 2

$38.99

$

Usually ships in 2-12 days

0

19

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

20

LOCKWASHER, 3/8 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

21

HEX HD BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

24

Scag 48246

THROTTLE CONTROL

$55.99

$

Usually ships in 2-12 days

0

25

Scag 48017

STARTER SWITCH(INCL. 26-28)

$22.99

$

Usually ships in 2-12 days

0

26

Scag 48017-02

KEY, IGNITION

$3.99

$

In Stock, Qty 9

0

27

Scag 48017-03

LOCKWASHER, INT. TOOTH 5/8

$0.99

$

In Stock, Qty 6

0

28

Scag 48017-04

HEX NUT, 5/8-11

$1.49

$

In Stock, Qty 5

0

30

Scag 48024

FUSE HOLDER

$10.99

$

In Stock, only 1 left!

0

31

Scag 48025-01

FUSE, 20A
(Superseded to 48025)

$

$

Not available

32

TRUSS HEAD SCREW, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

35

WASHER HD SCREW, #10-32 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

37

LOCKWASHER, EXT. TOOTH #10

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

38

HEX NUT, #10-32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

39

LOCKWASHER, 1/4 SPRING

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

40

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

41

HEX HD BOLT, 3/8-16 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

42

Scag 45024

SHIFT QUADRANT WLD.

$

$

Not available

43

Scag 04041-10

WASHER, 3/8 X 2 X 16 GA.

$1.99

$

Usually ships in 2-12 days

0

44

Scag 45023

SHIFTER HANDLE WLD.

$

$

Not available

45

Scag 48092

SHIFTER KNOB

$5.99

$

Usually ships in 2-12 days

0

46

Scag 48050

SPRING

$

$

Not available

47

WASHER, 13/32 X 13/16 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

48

HEX LOCK NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

49

Scag 43030

SHIFTER CONNECTOR ROD

$20.99

$

Usually ships in 2-12 days

0

50

Scag 04062-01

HAIR PIN COTTER, LARGE

$0.99

$

In Stock, Qty 20+

0

51

Scag 43032

SWIVEL JOINT

$6.49

$

In Stock, Qty 7

0
