ST 160 (3016 HR) - Troy-Bilt Tractor (SN: B360100101 - B360199999) BODYWORK & TRIM ASSEMBLY Parts Diagram

Tractor

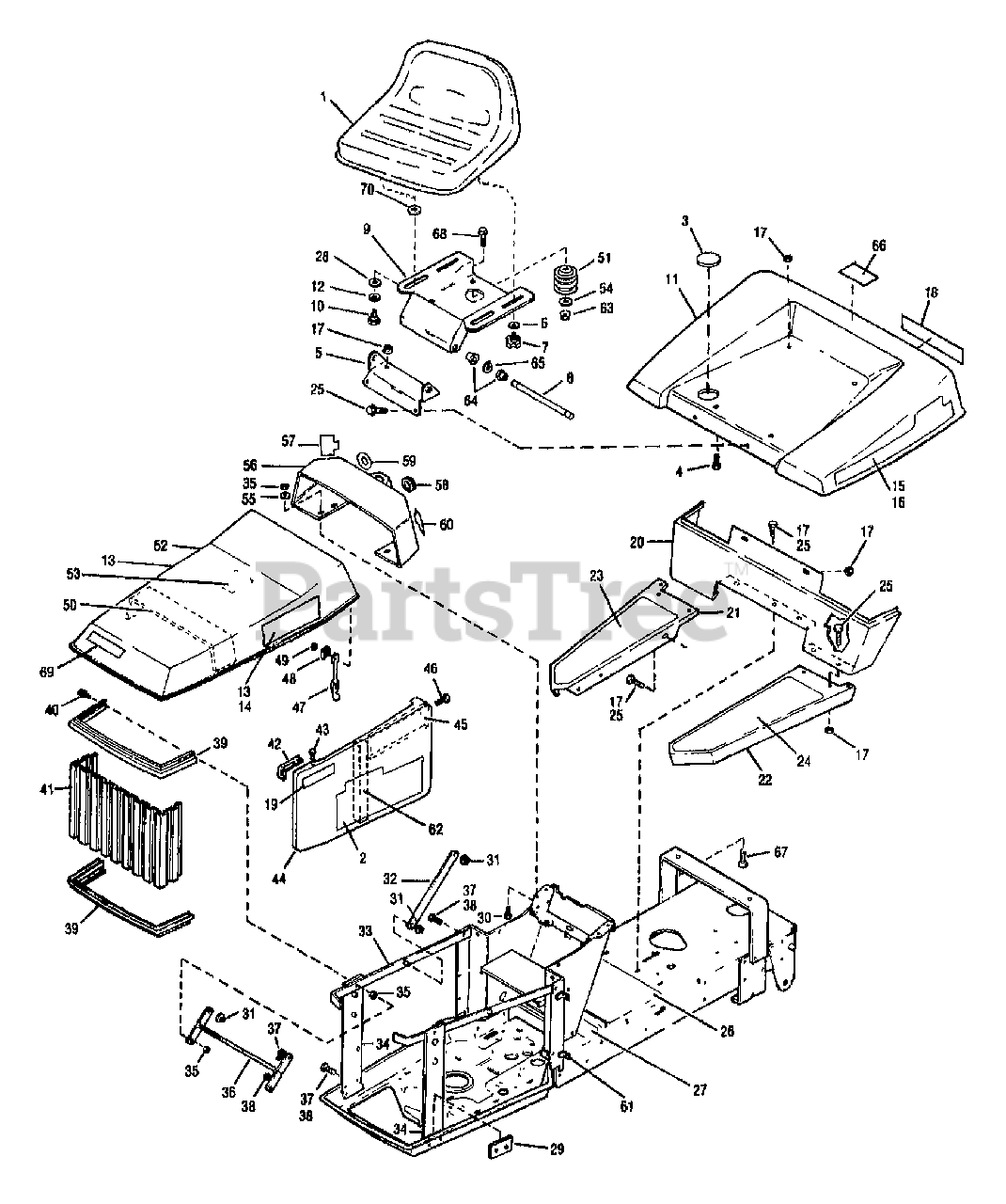

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1756861

SEAT {3214HR,3214HRS,3312HR}

$

$

Currently unavailable

1

Troy-Bilt 1759105

SEAT {3312HR,3312HRS}

$

$

Currently unavailable

1

Troy-Bilt 1759106

SEAT-TRACTOR {3016HR,3016HRS}

$

$

Currently unavailable

2

MTD 1757281

DECAL-SIDE COVER LH {3212HR,3114HR}

$

$

Not available

2

Troy-Bilt 1757282

DECAL-SIDE COVER RH {3212HR,3114HR}

$

$

Currently unavailable

2

Troy-Bilt 1757939

DECAL-SIDECVR LH RED {3312HR,3212HRS,3214HR, 3214HRS,3016HR,3016HRS}

$

$

Currently unavailable

2

MTD 1757938

DECAL-SIDECVR RH RED {3312HR,3312HRS,3214HR, 3214HRS,3016HR,3016HRS}

$

$

Not available

3

Troy-Bilt 1755790

PLUG

$

$

Currently unavailable

4

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

5

MTD 1756466STB

BRACKET-PIVOT

$

$

Not available

6

0

FLAT WASHER 3/8

$

$

Not available

7

MTD 1734269

KNOB

$

$

Not available

8

MTD 1755622

ROD

$

$

Not available

9

Troy-Bilt 1755620STB

ASSM-SEAT SUPPORT

$

$

Currently unavailable

10

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5ZP

$

$

Not available

11

Troy-Bilt 1755848GAR

FENDER-REAR

$

$

Currently unavailable

12

MTD 1705793

WASHER-1.06X.51X.09 NYLON

$

$

Not available

13

MTD 1757280

DECAL-HOOD RH {3212HR,3114HR}

$

$

Not available

13

MTD 1757937

DECAL-LOGO {3214HR,3214HRS,3312HR}

$

$

Not available

13

MTD 1759100

DECAL-LOGO {3312HR,3312HRS,3016HR,3016HRS, 3214HRS}

$

$

Not available

14

MTD 1757279

DECAL-HOOD LH {3212HR,3114HR}

$

$

Not available

14

MTD 1757937

DECAL-LOGO {3312HR,3214HR}

$

$

Not available

15

Troy-Bilt 1757286

DECAL-FENDER RH {3212HR}

$

$

Currently unavailable

15

MTD 1757284

DECAL-FENDER RH {3114HR}

$

$

Not available

15

Troy-Bilt 1757942

DECAL-FENDER RH RED {3312HR,3312HRS}

$

$

Currently unavailable

15

MTD 1757944

DECAL-FENDER RH RED {3214HR,3214HRS}

$

$

Not available

15

MTD 1759104

DECAL-FENDER {3016HR,3016HRS}

$

$

Not available

16

MTD 1757285

DECAL-FENDER LH {3212HR}

$

$

Not available

16

MTD 1757283

DECAL-FENDER LH {3114HR}

$

$

Not available

16

MTD 1757943

DECAL-FENDER LH RED {3312HR,3312HRS}

$

$

Not available

16

MTD 1757945

DECAL-FENDER LH RED {3214HR,3214HRS}

$

$

Not available

16

MTD 1759103

DECAL-FENDER LH {3016HR,3016HRS}

$

$

Not available

17

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

18

MTD 1757254

DECAL-LOGO {3212HR,3114HR}

$

$

Not available

18

MTD 1757936

DECAL-LOGO FENDER {3214HR,3214HRS,3312HR}

$

$

Not available

18

MTD 1759102

DECAL-LOGO FENDER {3312HR,3312HRS,3016HR, 3016HRS,3214HRS}

$

$

Not available

19

MTD 1757277

DECAL {3212HR,3114HR}

$

$

Not available

20

MTD 1743987GAR

SUPT-RUNNING BOARD

$

$

Not available

21

MTD 1751805GAR

BOARD-RUNNING RH

$

$

Not available

22

MTD 1751803GAR

BOARD-RUNNING LH

$

$

Not available

23

MTD 1756888

PAD-FOOT RH {3212HR,3016HR,3016HRS,3312HR, 3312HRS}

$

$

Not available

23

MTD 1757915

PAD-FOOT RH {3114HR,3214HR,3214HRS}

$

$

Not available

24

MTD 1756890

PAD-FOOT LH

$

$

Not available

25

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

26

MTD 1756889

PAD-FOOT

$

$

Not available

27

MTD 1755945

DECAL-INSTRUCTION

$

$

Not available

28

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

29

MTD 1754415

SPACER-PLATE

$

$

Not available

30

0

HEX HD. SCREW

$

$

Not available

31

Troy-Bilt 1747836

RETAINER-PUSH ON .24X.73 ZP
(Superseded to 726-0233)

$4.49

$

In Stock, only 3 left!

0

32

Troy-Bilt 1742459GAR

LINK-HINGE

$

$

Currently unavailable

33

MTD 1758587GAR

ASSM-HINGE STRAP

$

$

Not available

34

Troy-Bilt 1752914GAW

ASSM-GRILLE SUPPORT {3212HR,3114HR}

$

$

Currently unavailable

34

MTD 1752914STB

ASSM-GRILLE SUPT (RED)

$

$

Not available

35

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

36

Troy-Bilt 1742458GAR

LINK-HINGE

$

$

Currently unavailable

37

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

38

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 1742493GAW

CAP-GRILLE {3212HR,3114HR}

$

$

Currently unavailable

39

Troy-Bilt 1742493GAR

CAP-GRILLE {3312HR,3312HRS,3214HR,3214HRS, 3016HR,3016HRS}

$

$

Currently unavailable

40

0

HEX HD. SCREW

$

$

Not available

41

Troy-Bilt 1742494GAW

GRILLE-BLACK {3212HR,3114HR}

$

$

Currently unavailable

41

Troy-Bilt 1742494STB

GRILLE-BLACK {3312HR,3214HR}

$

$

Currently unavailable

42

MTD 1743566

GUIDE-SIDECOVER {3212HR,3114HR}

$

$

Not available

42

MTD 1753912

GUIDE-SIDE CVR (RED) {3312HR,3312HRS,3214HR, 3214HRS}

$

$

Not available

43

Troy-Bilt 1186059

RIVET-POP .125 {3212HR,3114HR}

$

$

Currently unavailable

43

Troy-Bilt 1756629

RIVET-POP {3312HR,3312HRS,3214HR,3214HRS}

$

$

Currently unavailable

44

Troy-Bilt 1743554GAW

COVER-SIDE LH {3212HR,3114HR}

$

$

Currently unavailable

44

Troy-Bilt 1743554GAR

COVER-SIDE LH RED {3312HR,3312HRS,3214HR, 3214HRS,3016HR,3016HRS}

$

$

Currently unavailable

44

Troy-Bilt 1743553GAW

COVER-SIDE RH {3212HR,3114HR}

$

$

Currently unavailable

44

MTD 1743553GAR

COVER-SIDE RH RED TRACTOR {3312HR,3312HRS, 3214HR,3214HRS,3016HR,3016HRS}

$

$

Not available

45

MTD 1744065

BLOCK-SEALING {3114HR,3214HR,3214HRS,3016HR, 3016HRS}

$

$

Not available

46

0

SCREW

$

$

Not available

47

MTD 1727127

LATCH-RUBBER

$

$

Not available

48

MTD 1727126

CLIP

$

$

Not available

49

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

50

MTD 1744067

STRIP-SEALING {3114HR,3214HR,3214HRS,3016HR, 3016HRS}

$

$

Not available

51

Troy-Bilt 1755449

SPRING-COMPRESSION

$

$

Not available

52

Troy-Bilt 1744051GAW

ASSM-HOOD {3212HR,3114HR}

$

$

Currently unavailable

52

Troy-Bilt 1744051GAR

ASSM-HOOD RED {3312HR,3312HRS,3214HR, 3214HRS,3016HR,3016HRS}

$

$

Currently unavailable

53

MTD 1756876

DECAL-SVC INST

$

$

Not available

54

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$6.49

$

Usually ships in 3-6 days

0

55

0

FLAT WASHER

$

$

Not available

56

MTD 1753039

PANEL-INSTRUCTION

$

$

Not available

57

MTD 1756871

DECAL-THROTTLE {3114HR,3214HR,3214HRS}

$

$

Not available

57

MTD 1755931

DECAL-THROTTLE {3212HR,3312HR,3312HRS}

$

$

Not available

58

MTD 1756739

CAP

$

$

Not available

59

MTD 1755932

DECAL-IGNITION

$

$

Not available

60

MTD 1755933

DECAL-CHOKE

$

$

Not available

61

MTD 1742934

NUT-SPEED

$

$

Not available

62

MTD 1754614

STRIP-SEALING {3114HR,3016HR,3016HRS,3312HR, 3214HRS}

$

$

Not available

63

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

64

MTD 1755779

BEARING-FLANGE

$

$

Not available

65

Troy-Bilt 1185257

RING-RET."E" .300 ID
(Superseded to 916-0125)

$

$

Not available

66

MTD 1757366

DECAL-FUEL

$

$

Not available

67

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

68

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

69

MTD 1757276

DECAL-MODEL {3212HR,3114HR}

$

$

Not available

69

MTD 1757935

DECAL-LOGO {3312HR,3314HR}

$

$

Not available

69

MTD 1759101

DECAL-LOGO {3312HR,3312HRS,3016HR,3016HRS, 3214HRS}

$

$

Not available

70

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available
