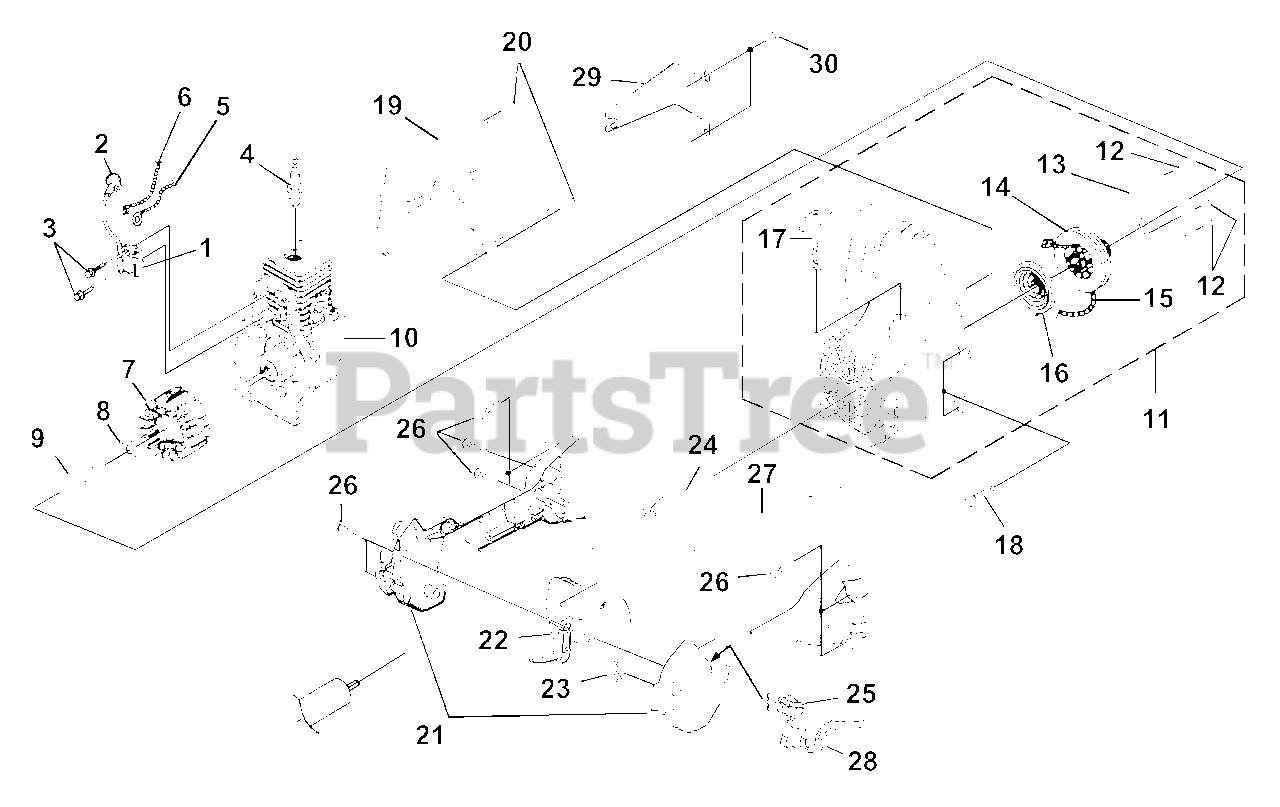

ST 155i CKD (UT-20746) - Homelite String Trimmer Ignition - Rotor - Starter Parts Diagram

String Trimmer

Ignition - Rotor - Starter Parts Diagram

  • Title

1

Homelite 94711CS

MODULE-Ignition

Note: Includes item 2

$

$

Not available

2

Homelite 33055

TERMINAL & COVER

$

$

Currently unavailable

3

Homelite 82540

SCREW-Taptite (8-32 X 1")

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm. Required Loctite Blue 242

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 79252

SPARK PLUG - Resistor
(Superseded to UP03883)

Note: Torque Specs 120-180 In/Lbs, 13.6-20.3 Nm.

$3.49

$

In Stock, only 3 left!

0

5

Homelite 06964

LEAD-Ground

$

$

Currently unavailable

6

Homelite 06963

LEAD-Electrical

$

$

Currently unavailable

7

Homelite UP03009

ROTOR KIT

Note: Includes item 8

$

$

Currently unavailable

8

Homelite 95479A

WASHER-Flat

$

$

Not available

9

Homelite 98795A

CONNECTOR-Drive

Note: Torque Specs 100-150 In/Lbs, 11.3-16.9 Nm.

$

$

Not available

10

Homelite UP03116

SHORT BLOCK
(Superseded to UP03116A)

Note: (See "Engine Internal" illustration and parts list)

$

$

Not available

11

Homelite UP00014

COMPLETE STARTER ASSEMBLY

Note: Includes item 12-17

$

$

Not available

12

Homelite 82546

SCREW-Taptite (8-16 X 1/2")
(Superseded to 660675001)

Note: Torque Specs 10-20 In/Lbs, 1.1-2.3 Nm.

$1.99

$

In Stock, only 1 left!

0

13

Homelite UP03013

BAFFLE-Air
(Superseded to PS00326)

$2.49

$

In Stock, only 1 left!

0

14

Homelite 98770A

PULLEY-Starter

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

In Stock, only 4 left!

0

17

Homelite PS00179

GRIP-Starter

$

$

Not available

18

Homelite 82538

SCREW-Taptite (10-24 X 3/4")

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$1.99

$

Usually ships in 3-7 days

0

19

Homelite UP00023

HOUSING-Rear Kit
(Superseded to 09210)

Note: Includes item 20

$

$

Not available

20

Homelite 82537

SCREW-Taptite (10-14 X 7/8")

$1.99

$

Usually ships in 3-7 days

0

21

Homelite UP03114

CONTROL HANDLE ASSY.
(Superseded to UP03114A)

Note: Includes item 22-28

$

$

Not available

22

Homelite UP03207

TRIGGER-Throttle
(Superseded to UP03207A)

Note: Includes item 23

$5.99

$

Usually ships in 3-7 days

0

23

Homelite UP03210

SPRING
(Superseded to PS01718)

$2.49

$

In Stock, only 2 left!

0

24

Homelite UP03173

THROTTLE INTERLOCK
(Superseded to PS01128)

$11.99

$

Usually ships in 3-7 days

0

25

Homelite 07385

SWITCH
(Superseded to 760661001)

$

$

Not available

26

Homelite 82589

SCREW-Taptite (10-14 X 1")

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$2.99

$

In Stock, Qty 7

0

27

Homelite UP03172

CABLE-Throttle
(Superseded to PS01177)

$1.49

$

In Stock, only 1 left!

0

28

Homelite UP03174

LEAD-Electrical
(Superseded to PA00387)

$6.99

$

Usually ships in 3-7 days

0

29

Homelite PS00218

GUARD-Muffler

$26.99

$

Usually ships in 3-7 days

0

30

Homelite 82541

SCREW-Thread Forming (10-14 X 1/2")

Note: Torque Specs 5-20 In/Lbs, .6-2.3 Nm.

$1.99

$

In Stock, only 3 left!

0
