ST 155 V (UT-20717) - Homelite String Trimmer Muffler - Air Cleaner Parts Diagram

String Trimmer

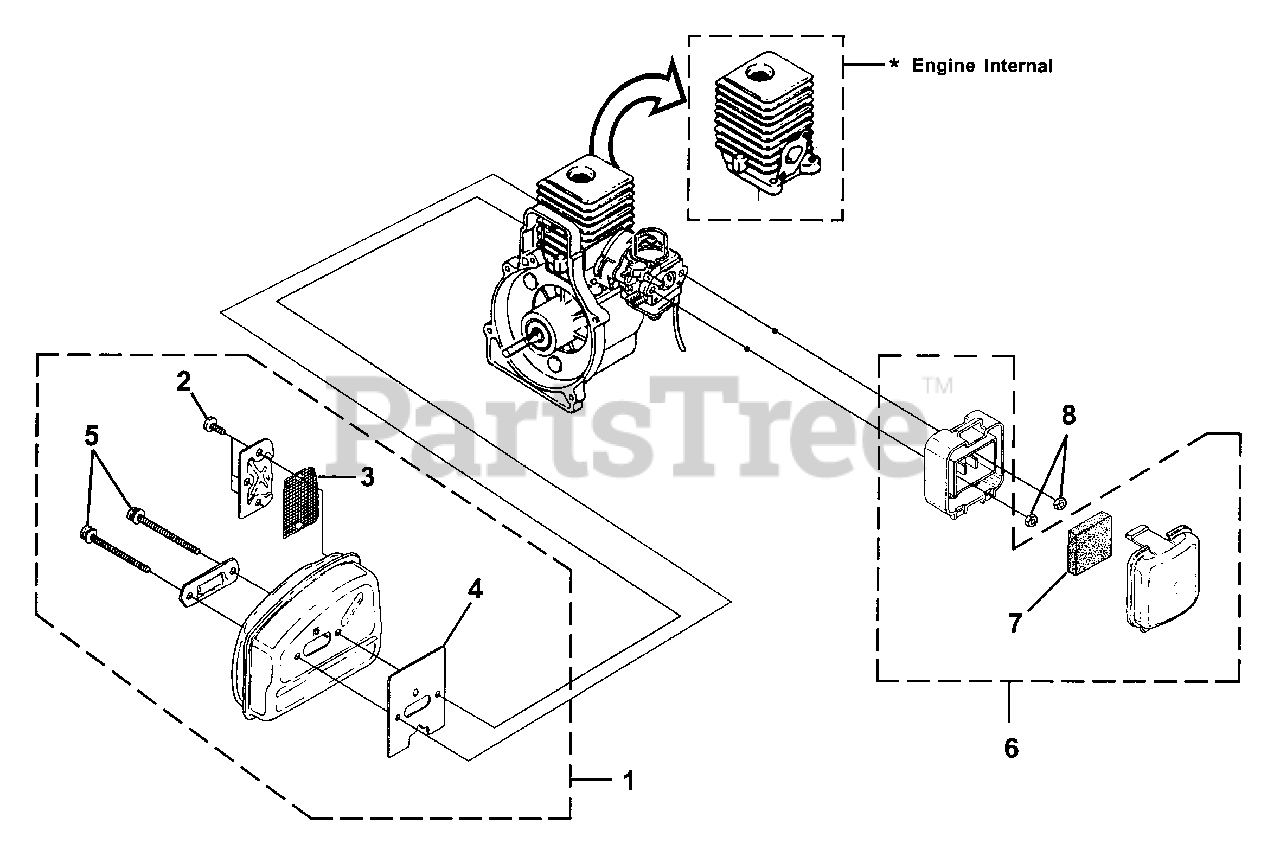

Muffler - Air Cleaner Parts Diagram

  • Title

1

Homelite A07142A

MUFFLER ASSY.
(Superseded to PA01073)

$35.99

$

Usually ships in 3-7 days

0

2

Homelite 82600

SCREW, Taptite - (8-32 X 3/8")

Note: Torque Specs 25-35 In/Lbs 2.8-4.0 Nm.

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 06502

SCREEN-Spark

$

$

Not available

4

Homelite 09343

GASKET-Muffler

$

$

Not available

5

Homelite 88083

SCREW, Truss Hd. - (10-24 X 2.188)
(Superseded to PS03999)

Note: Torque Specs 50-60 In/Lbs 5.6-6.8 Nm.

$

$

Not available

6

Homelite UP00022

AIR FILTER KIT
(Superseded to 983930001)

$

$

Not available

7

Homelite 98760

FILTER-AIR

$

$

Not available

8

Homelite 81208

NUT-Hex (10-24)

Note: Torque Specs 30-40 In/Lbs 3.4-4.5 Nm.

$

$

Not available
