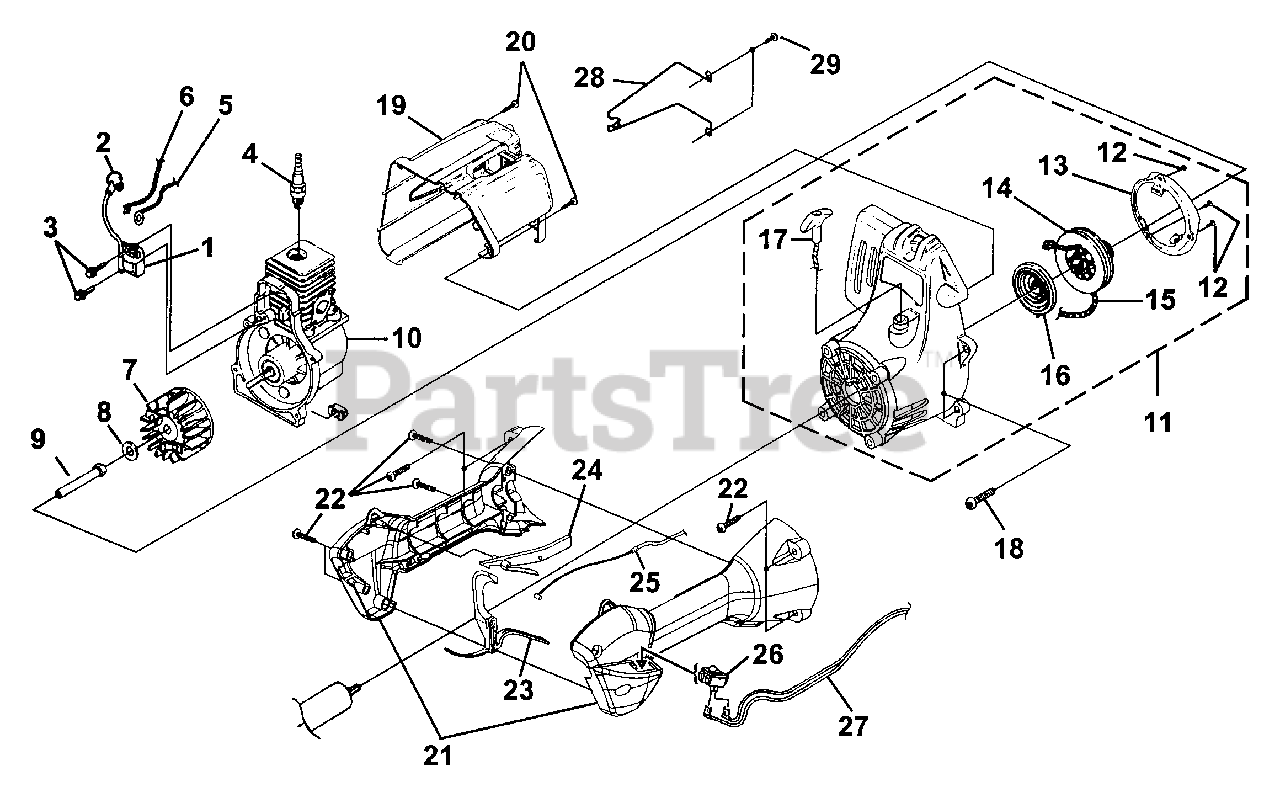

ST 155 V (UT-20717) - Homelite String Trimmer Ignition - Rotor - Starter Parts Diagram

String Trimmer

Ignition - Rotor - Starter Parts Diagram

  • Title

1

Homelite 94711CS

MODULE-Ignition

$

$

Not available

2

Homelite A33055

TERMINAL & COVER

$

$

Not available

3

Homelite 82540

SCREW-Taptite (8-32 X 1")

Note: Torque Specs 30-40 In/Lbs 3.4-4.5 Nm; Required Loctite Blue 242

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 79252

SPARK PLUG - Resistor
(Superseded to UP03883)

Note: Torque Specs 120-180 In/Lbs 13.6-20.3 Nm.

$3.49

$

In Stock, only 3 left!

0

5

Homelite A06964

LEAD-Ground

$

$

Not available

6

Homelite A06963

LEAD-Electrical

$3.99

$

Usually ships in 3-7 days

0

7

Homelite A04158S

ROTOR KIT
(Superseded to UP03856A)

$

$

Not available

8

Homelite 95479A

WASHER-Flat

$

$

Not available

9

Homelite 98795A

CONNECTOR-Drive

Note: Torque Specs 100-150 In/Lbs 11.3-16.9 Nm.

$

$

Not available

10

Homelite UP00017

SHORT BLOCK
(Superseded to UP03123)

Note: (See "Engine Internal" illustration and parts list)

$

$

Not available

11

Homelite UP00014

COMPLETE STARTER ASSEMBLY

$

$

Not available

12

Homelite 82546

SCREW-Taptite (8-16 X 1/2")
(Superseded to 660675001)

Note: Torque Specs 10-20 In/Lbs 1.1-2.3 Nm.

$1.99

$

In Stock, only 1 left!

0

13

Homelite 09221

BAFFLE-Air
(Superseded to PS00326)

$2.49

$

In Stock, only 1 left!

0

14

Homelite 98770A

PULLEY-Starter

$3.99

$

Usually ships in 3-7 days

0

15

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$5.49

$

In Stock, only 4 left!

0

17

Homelite PS00179

GRIP-Starter

$

$

Not available

18

Homelite 82538

SCREW-Taptite (10-24 X 3/4")

Note: Torque Specs 30-40 In/Lbs 3.4-4.5 Nm.

$1.99

$

Usually ships in 3-7 days

0

19

Homelite UP00023

HOUSING-Rear Kit
(Superseded to 09210)

$

$

Not available

20

Homelite 82537

SCREW-Taptite (10-14 X 7/8")

$1.99

$

Usually ships in 3-7 days

0

21

Homelite UP00024

CONTROL HANDLE ASSY.

$

$

Not available

22

Homelite 82537

SCREW-Taptite (10-14 X 7/8")

Note: Torque Specs 30-50 In/Lbs 3.4-5.6 Nm.

$1.99

$

Usually ships in 3-7 days

0

23

Homelite 09219

TRIGGER-Throttle

$

$

Not available

24

Homelite 09220

INTERLOCK-Throttle

$6.49

$

Usually ships in 3-7 days

0

25

Homelite 09285

CABLE-Throttle

$

$

Not available

26

Homelite 09375

SWITCH
(Superseded to 985703001)

$

$

Not available

27

Homelite A09367

LEAD-Electrical
(Superseded to UP04566)

$

$

Not available

28

Homelite PS00218

GUARD-Muffler

$26.99

$

Usually ships in 3-7 days

0

29

Homelite 82541

SCREW-Thread Forming (10-14 X 1/2")

Note: Torque Specs 5-20 In/Lbs .6-2.3 Nm.

$1.99

$

In Stock, only 3 left!

0
