ST 140 (3214 HRS) - Troy-Bilt Tractor (SN: B400100101 - B400102100) ENGINE ASSEMBLY Parts Diagram

Tractor

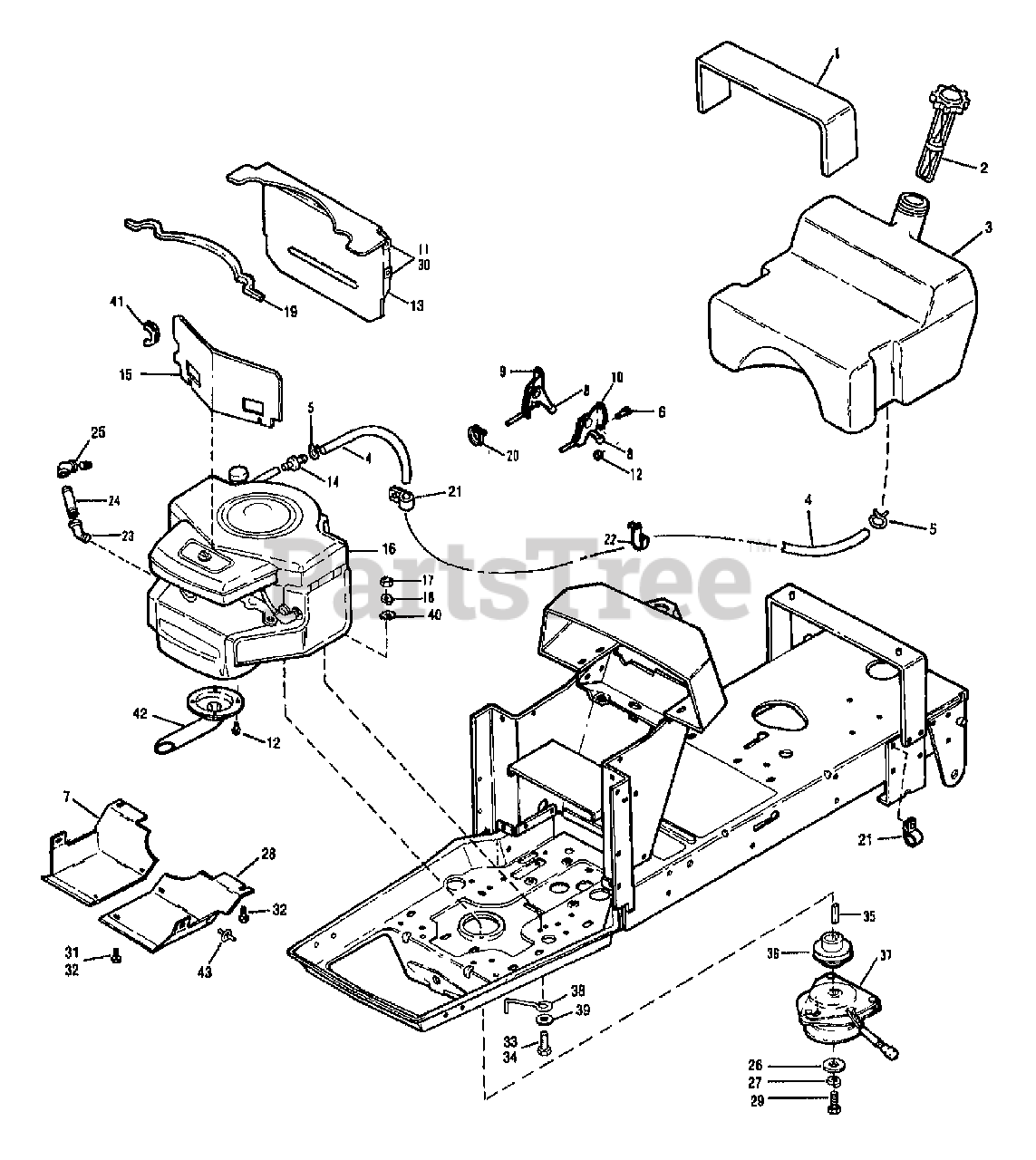

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1744390

PAD-FUEL TANK

$

$

Currently unavailable

2

Troy-Bilt 1756044

CAP-GAS
(Superseded to 751-0531B)

$83.99

$

In Stock, Qty 5

0

3

Troy-Bilt 1756460

TANK-FUEL

$

$

Currently unavailable

4

MTD 1752795

LINE-FUEL 52"

$

$

Not available

5

Troy-Bilt 1750687

CLAMP-HOSE
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

6

MTD 1750962

SCR

$

$

Not available

7

Troy-Bilt 1754564STB

SHIELD-HEAT RH

$

$

Currently unavailable

8

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

9

MTD 1755904

THROTTLE-CONTROL

$

$

Not available

10

MTD 1755903

CHOKE-CONTROL

$

$

Not available

11

0

N/A

$

$

Not available

12

MTD 1185712

SCR

$

$

Not available

13

Troy-Bilt 1752882GAR

SHIELD-HEAT {3114HR}

$

$

Currently unavailable

13

Troy-Bilt 1752882STB

SHIELD-HEAT (RED) {3016HR,3016HRS,3214HR, 3214HRS}

$

$

Currently unavailable

14

Troy-Bilt 1727491

FILTER-FUEL
(Superseded to BS-298090S)

$

$

Not available

15

Troy-Bilt 1754578GAR

SHIELD-HEAT {3214HRS}

$

$

Currently unavailable

15

Troy-Bilt 1754578STB

SHIELD-HEAT (RED) {3016HR,3016HRS,3214HR, 3214HRS}

$

$

Currently unavailable

16

0

ENGINE, B&S 14 HP MODEL 400707 {3214HR, 3114HR,3214HR}

$

$

Not available

16

0

ENGINE, B&S 16 HP MODEL 402707 {3016HR, 3016HRS}

$

$

Not available

17

0

N/A

$

$

Not available

18

0

N/A

$

$

Not available

19

Troy-Bilt 1732137

SEALING-STRIP

$

$

Currently unavailable

20

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

21

MTD 1747738

CLIP-J

$

$

Not available

22

MTD 1745366

HANGER-CABLE

$

$

Not available

23

MTD 1743683

ELBOW-45 DEGREES

$

$

Not available

24

MTD 1743685

NIPPLE-PIPE

$

$

Not available

25

MTD 1743684

ELBOW-90 DEGREES

$

$

Not available

26

MTD 1744455

WASHER-SPEC 1.42X.468X.25 ZP

$

$

Not available

27

0

N/A

$

$

Not available

28

Troy-Bilt 1754563STB

SHIELD-HEAT LH

$

$

Currently unavailable

29

Troy-Bilt 1744454

SCR-HH 7/16-20X3 G5 ZP
(Superseded to 710-0510)

$11.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

32

Troy-Bilt 1186307

SCR
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

33

0

N/A

$

$

Not available

34

0

N/A

$

$

Not available

35

MTD 1187474

KEY-.25 SQ X 1.25

$

$

Not available

36

Troy-Bilt 1742535

SHEAVE

$

$

Currently unavailable

37

Troy-Bilt 1755341

CLUTCH-ELECTRIC
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

38

MTD 1754787

CLUTCH-RETAINER

$

$

Not available

39

0

N/A

$

$

Not available

40

0

N/A

$

$

Not available

41

MTD 1754612

TRIM

$

$

Not available

42

Troy-Bilt 1754887STB

PIPE-EXHAUST

$

$

Currently unavailable

43

MTD 1740752

RIVET-POP .125

$

$

Not available
