ST 140 (3114 HR) - Troy-Bilt Tractor (SN: 0100101 - 0199999) FRAME, LIFT & STEERING ASSEMBLY Parts Diagram

Tractor

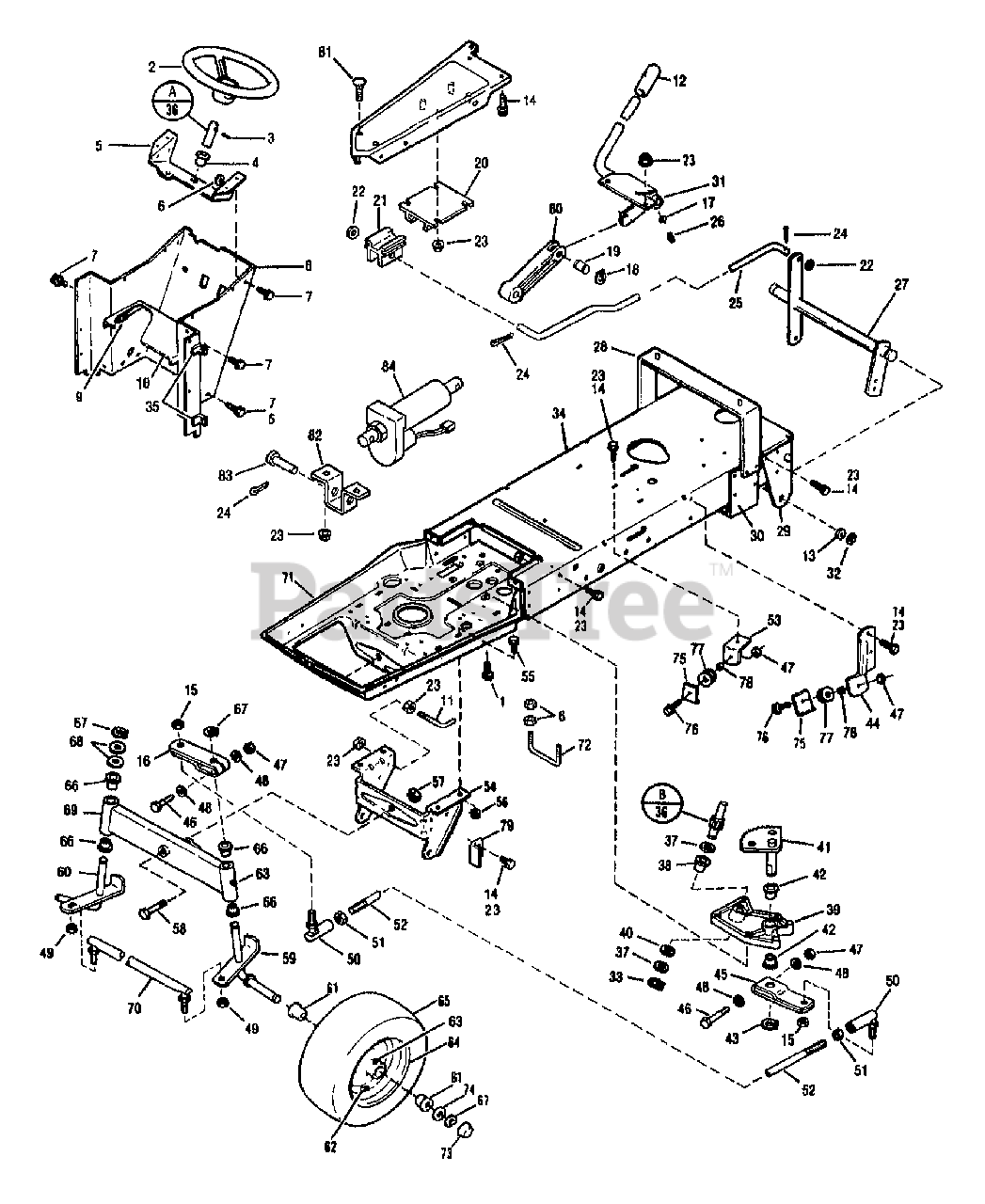

FRAME, LIFT & STEERING ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

2

MTD 1756862

WHEEL-STEERING

$

$

Not available

2

Troy-Bilt 1757804

STEERING WHEEL {3016HR,3016HRS}

$

$

Currently unavailable

3

0

N/A

$

$

Not available

4

MTD 1185632

BEARING-FLANGED NYLON

$

$

Not available

5

MTD 1756608

SUPPORT-STEERING SHAFT

$

$

Not available

6

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

8

Troy-Bilt 1758724GAR

INSTR. PANEL SUPPORT

$

$

Currently unavailable

8

MTD 1758797GAR

SUPT-INSTRUMENT PANEL {3016HR,3016HRS}

$

$

Not available

9

MTD 1185456

NUT-SPEED

$

$

Not available

10

MTD 1756073GAR

SUPPORT-BATTERY

$

$

Not available

11

Troy-Bilt 1757291

GUIDE-BELT

$

$

Not available

12

Troy-Bilt 1703539

GRIP-FLEX {3212HR,3312HR,3016HR,3016HRS}
(Superseded to 720-0274)

$11.99

$

In Stock, Qty 11

0

13

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

15

MTD 1750957

NUT-HEX/JAM 1/2-20 ZP

$

$

Not available

16

Troy-Bilt 1750495

ARM-STEERING

$

$

Currently unavailable

17

MTD 1805368

WASHER {3212HR,3312HR,3016HR,3016HRS}

$

$

Not available

18

MTD 1185427

RING-RETAINING {3212HR,3312HR,3016HR,3016HRS}

$

$

Not available

19

MTD 1747189

PIN {3212HR,3312HR,3016HR,3016HRS}

$

$

Not available

20

Troy-Bilt 1758272

KIT-GUIDE (TRACTOR)

$

$

Currently unavailable

21

Troy-Bilt 1758272

KIT-GUIDE (TRACTOR)

$

$

Currently unavailable

22

0

N/A

$

$

Not available

23

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

24

0

N/A

$

$

Not available

25

MTD 1751070

ROD-LIFT

$

$

Not available

26

Troy-Bilt 1185803

FITTING-GREASE {3212HR,3312HR,3016HR,3016HRS}

$

$

Currently unavailable

27

Troy-Bilt 1754950GAR

ASSM-LIFT SHAFT

$

$

Currently unavailable

28

Troy-Bilt 1754944GAR

ASSM-FENDER SUPPORT

$

$

Currently unavailable

29

MTD 1749801GAR

ASSM-PANEL REAR

$

$

Not available

30

Troy-Bilt 1740984GAR

SUPT-AXLE

$

$

Currently unavailable

31

Troy-Bilt 1749028GAR

ASSM-LIFT LEVER {3212HR,3312HR,3016HR, 3016HRS}

$

$

Currently unavailable

32

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

33

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, Qty 12

0

34

Troy-Bilt 1755847GAR

FRAME-REAR

$

$

Currently unavailable

35

MTD 1742934

NUT-SPEED

$

$

Not available

36

Troy-Bilt 1751284

SHIFT-STEER

$

$

Currently unavailable

37

MTD 1730375

WASHER-SHIM

$

$

Not available

38

MTD 1747303

BEARING

$

$

Not available

39

MTD 1750594

ASSM-STEER SUPT

$

$

Not available

40

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

41

MTD 1750501

ASSM-SECTOR GEAR

$

$

Not available

42

Troy-Bilt 1185386

BEARING-FLANGE

$

$

Not available

43

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 1747315GAR

BRACKET

$

$

Currently unavailable

45

MTD 1750581

ASSM-ARM SPINDLE

$

$

Not available

46

0

N/A

$

$

Not available

47

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

48

MTD 1708755

WASHER-.875X.390X.134

$

$

Not available

49

Troy-Bilt 1110150

NUT-LOCK
(Superseded to 912-0214)

$6.49

$

In Stock, only 3 left!

0

50

MTD 1716180

JOINT-BALL

$

$

Not available

51

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

52

Troy-Bilt 1750499GAR

ROD-STEER

$

$

Currently unavailable

53

MTD 1747316GAR

BRACKET

$

$

Not available

54

Troy-Bilt 1750811GAR

BRKT-ATTACHMENT

$

$

Currently unavailable

55

MTD 1186345

SCR

$

$

Not available

56

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

57

Troy-Bilt 1758231

NUT-H/LK 5/8-11
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

58

MTD 1758232

SCR-HH 5/8-11X2.25 G5 ZP

$

$

Not available

59

Troy-Bilt 1750486GAR

ASSM-SPINDLE LH

$

$

Currently unavailable

60

MTD 1750490GAR

ASSM-SPINDLE RH

$

$

Not available

61

Troy-Bilt 1720327

BUSHING
(Superseded to 1750341099)

$

$

Not available

62

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

64

Troy-Bilt 1757420GAW

WHEEL

$

$

Currently unavailable

64

MTD 1757981

WHEEL-RED {3312HR,3214HR}

$

$

Not available

65

Troy-Bilt 1756864

TIRE
(Superseded to 734-1731-0901)

$49.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 1742133

BUSHING
(Superseded to 1764140)

$5.49

$

In Stock, Qty 11

0

67

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

68

Troy-Bilt 1701447

WASHER-1.25X.765X.049

$4.49

$

In Stock, Qty 18

0

69

MTD 1750494GAR

ASSM-FRONT AXLE

$

$

Not available

70

MTD 1750841GAR

ROD-TIE

$

$

Not available

71

MTD 1742343GAR

FRAME-FRONT

$

$

Not available

72

Troy-Bilt 1744320

GUIDE-BELT

$

$

Currently unavailable

73

Troy-Bilt 1744444

CAP-WHEEL

$

$

Not available

74

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

75

MTD 1747320

GUIDE-CABLE

$

$

Not available

76

0

N/A

$

$

Not available

77

MTD 1756177

PULLEY-CABLE

$

$

Not available

78

Troy-Bilt 1747322

SPACER-.75X.40X.51 P/M

$

$

Currently unavailable

79

Troy-Bilt 1751715GAR

BRACKET

$

$

Currently unavailable

80

Troy-Bilt 1754179

LINK-PUSH

$

$

Not available

81

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP {3114HR,3214HR}
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

82

MTD 1750307

BRACKET-LIFT {3114HR,3214HR}

$

$

Not available

83

MTD 1706419

PIN-CLEVIS .5X2.0 ZP {3114HR,3214HR}

$

$

Not available

84

MTD 1750450

ACTUATOR {3114HR,3214HR}

$

$

Not available
