ST 140 (3114 GR) - Troy-Bilt Tractor (SN: 0100101 - 0199999) PEERLESS TRANSAXLE ASSEMBLY Parts Diagram

Tractor

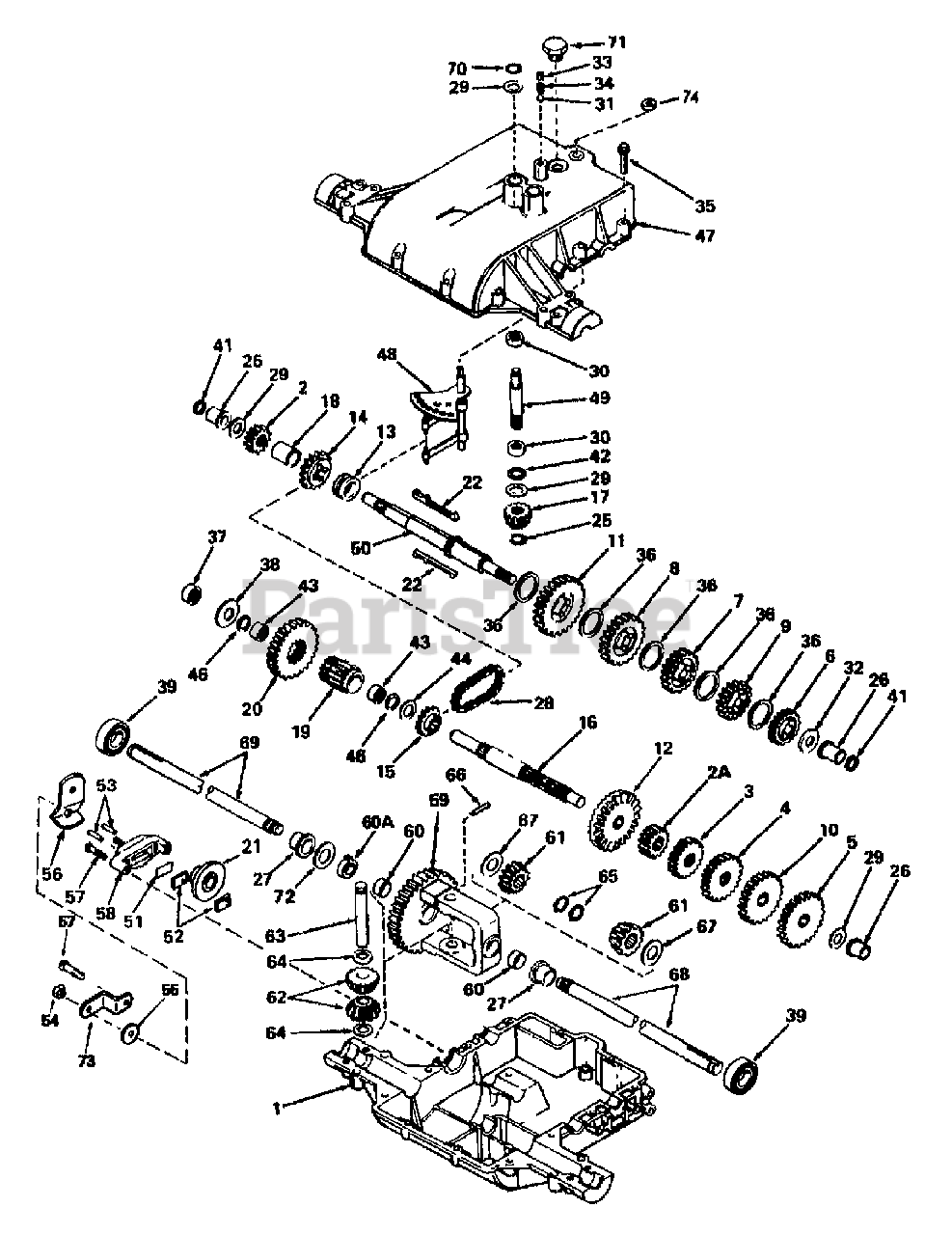

PEERLESS TRANSAXLE ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 770071A

TRANSAXLE CASE

$

$

Currently unavailable

2

Troy-Bilt 778136

SPUR GEAR

$

$

Currently unavailable

2A

Troy-Bilt 778145

SPUR GEAR

$

$

Currently unavailable

3

Troy-Bilt 778126A

SPUR GEAR

$

$

Currently unavailable

4

Troy-Bilt 778127A

SPUR GEAR

$

$

Currently unavailable

?5

Troy-Bilt 778163

SPUR GEAR

$

$

Currently unavailable

6

Troy-Bilt 778162

SPUR GEAR

$

$

Currently unavailable

7

Troy-Bilt 778123A

SPUR GEAR
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

8

Troy-Bilt 778124A

SPUR GEAR
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

9

Troy-Bilt 778122A

SPUR GEAR

$

$

Currently unavailable

10

Troy-Bilt 778128A

SPUR GEAR

$

$

Currently unavailable

11

Troy-Bilt 778146A

SPUR GEAR

$

$

Currently unavailable

12

Troy-Bilt 778154

BEVEL GEAR

$

$

Currently unavailable

13

$

$

Currently unavailable

14

Troy-Bilt 786060

SPROCKET

$

$

Currently unavailable

15

Troy-Bilt 786061

SPROCKET

$

$

Currently unavailable

16

Troy-Bilt 776204

COUNTERSHAFT

$

$

Currently unavailable

17

Troy-Bilt 778153

INPUT PINION

$

$

Currently unavailable

18

$

$

Currently unavailable

19

Troy-Bilt 778138

OUTPUT GEAR

$

$

Currently unavailable

20

Troy-Bilt 778139

OUTPUT GEAR

$

$

Currently unavailable

21

MTD 790003

BRAKE DISK
(Superseded to TC-790003)

$20.99

$

Usually ships in 3-12 days

0

22

Troy-Bilt 792089A

SHIFT KEY

$

$

Currently unavailable

25

Troy-Bilt 788040

RET RING

$

$

Currently unavailable

26

Troy-Bilt 780105A

BUSHING
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

27

$

$

Currently unavailable

28

Troy-Bilt 786062A

ROLLER CHAIN

$

$

Currently unavailable

29

Troy-Bilt 780072

WASHER
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 780122

NEEDLE BEARING

$

$

Currently unavailable

$

$

Currently unavailable

32

$

$

Currently unavailable

?33

$

$

Currently unavailable

34

Troy-Bilt 792079

SPRING
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

35

$

$

Currently unavailable

36

Troy-Bilt 780108

WASHER
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

37

Troy-Bilt 780121

BALL BEARING

$

$

Currently unavailable

38

$

$

Currently unavailable

39

Troy-Bilt 780119

BALL BEARING

$

$

Currently unavailable

$

$

Currently unavailable

42

$

$

Currently unavailable

43

Troy-Bilt 780112

NEEDLE BEARING

$

$

Currently unavailable

44

$

$

Currently unavailable

46

MTD 788053

SQUARE CUT RING
(Superseded to TC-788053)

$4.49

$

Usually ships in 3-12 days

0

47

$

$

Currently unavailable

48

Troy-Bilt 784290

ROD & FORK

$

$

Currently unavailable

49

Troy-Bilt 776226

INPUT SHAFT

$

$

Currently unavailable

50

Troy-Bilt 776183A

BRAKE SHAFT

$

$

Currently unavailable

51

Troy-Bilt 790007

BRAKE PAD PLATE
(Superseded to TC-790007)

$5.99

$

Usually ships in 3-12 days

0

52

Troy-Bilt 790006

BRAKE PAD
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 786026

DOWEL PIN
(Superseded to TC-786026)

$4.49

$

Usually ships in 3-12 days

0

$

$

Currently unavailable

55

$

$

Currently unavailable

56

Troy-Bilt 790031

BRAKE LEVER

$

$

Currently unavailable

57

$

$

Currently unavailable

58

$

$

Currently unavailable

59

Troy-Bilt 778053A

DIFF GEAR ASSY

$

$

Currently unavailable

60

$

$

Currently unavailable

60A

$

$

Currently unavailable

61

Troy-Bilt 778166

BEVEL GEAR

$

$

Currently unavailable

62

MTD 778131

BEVEL GEAR
(Superseded to TC-778131)

$39.99

$

In Stock, Qty 6

0

63

Troy-Bilt 786034

DRIVE PIN

$

$

Currently unavailable

64

$

$

Currently unavailable

65

Troy-Bilt 792018

RET RING

$

$

Currently unavailable

66

Troy-Bilt 792040

ROLL PIN

$

$

Currently unavailable

67

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

70

Troy-Bilt 792035

RET RING
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

$

$

Currently unavailable

72

UNKNOWN

$

$

Not available

73

$

$

Currently unavailable

$

$

Currently unavailable
