ST 1332 (632130x16D) - Frontier 32" Snow Thrower (2005) Handle Parts Diagram

32" Snow Thrower

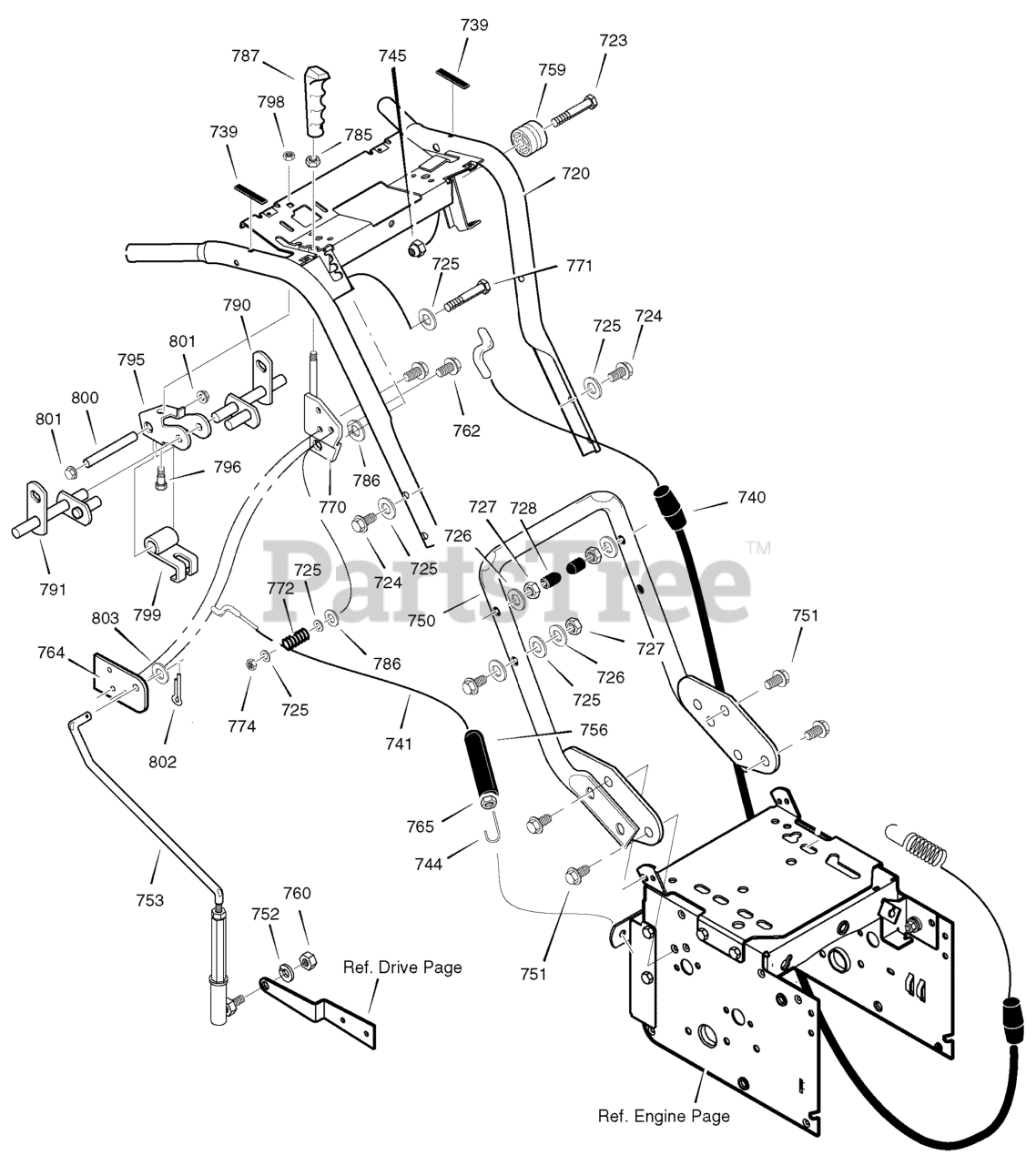

Handle Parts Diagram

  • Title
720

Murray MT1501381E701

ASSY., HANDLE

$

$

Currently unavailable

723

$

$

Currently unavailable

724

$

$

Currently unavailable

725

$

$

Currently unavailable

726

$

$

Currently unavailable

727

$

$

Currently unavailable

728

Murray MT7289

STOP, PLASTIC

$

$

Currently unavailable

739

Murray MT4049

BUMPER

$

$

Currently unavailable

740

Murray MT1501363

CABLE, DRIVE

$

$

Currently unavailable

741

Murray MT1501451

CABLE, AUGER

$

$

Currently unavailable

744

Murray MT1673

SPRING, AUGER CLUTCH

$

$

Currently unavailable

745

Murray MT15X116

NUT, HEX -- 1/4--20

$

$

Currently unavailable

750

Murray MT1501449E701

HANDLE, LOWER

$

$

Currently unavailable

751

$

$

Currently unavailable

752

$

$

Currently unavailable

753

Murray MT1501465

ASSEMBLY, ROD

$

$

Currently unavailable

756

Murray MT308146

BOOT, SPRING

$

$

Currently unavailable

759

Murray MT579860

SPOOL, CABLE

$

$

Currently unavailable

760

Murray MT71042

NUT, 5/16--24

$

$

Currently unavailable

762

Murray MT310169

SCREW 1/4--20X0.63

$

$

Currently unavailable

764

Murray MT1501367 YZ

BRACKET, CONTROL

$

$

Currently unavailable

765

Murray MT15X145

NUT, HEX -- 1/4--20

$

$

Currently unavailable

770

Murray MT1501375 YZ

BRACKET, SHIFT

$

$

Currently unavailable

771

$

$

Currently unavailable

772

$

$

Currently unavailable

774

Murray MT71046

NUT, HEX, 3/8--16

$

$

Currently unavailable

785

Murray MT71045

NUT, HEX, 3/8--16

$

$

Currently unavailable

786

$

$

Currently unavailable

787

Murray MT306689

GRIP, LEVER

$

$

Currently unavailable

790

Murray MT578926E701

ROD, ASSY LH

$

$

Currently unavailable

791

Murray MT578924E701

ROD, ASSY RH

$

$

Currently unavailable

795

Murray MT579002

BRACKET, CAM

$

$

Currently unavailable

796

$

$

Currently unavailable

798

Murray MT71038

NUT, NYLOCK

$

$

Currently unavailable

799

Murray MT8417

CAM LOCK

$

$

Currently unavailable

800

Murray MT584673

PIN, SPRING PIVOT

$

$

Currently unavailable

801

Murray MT73664

NUT, PUSH ON

$

$

Currently unavailable

802

Murray MT71081

PIN, COTTER

$

$

Currently unavailable

803

$

$

Currently unavailable
