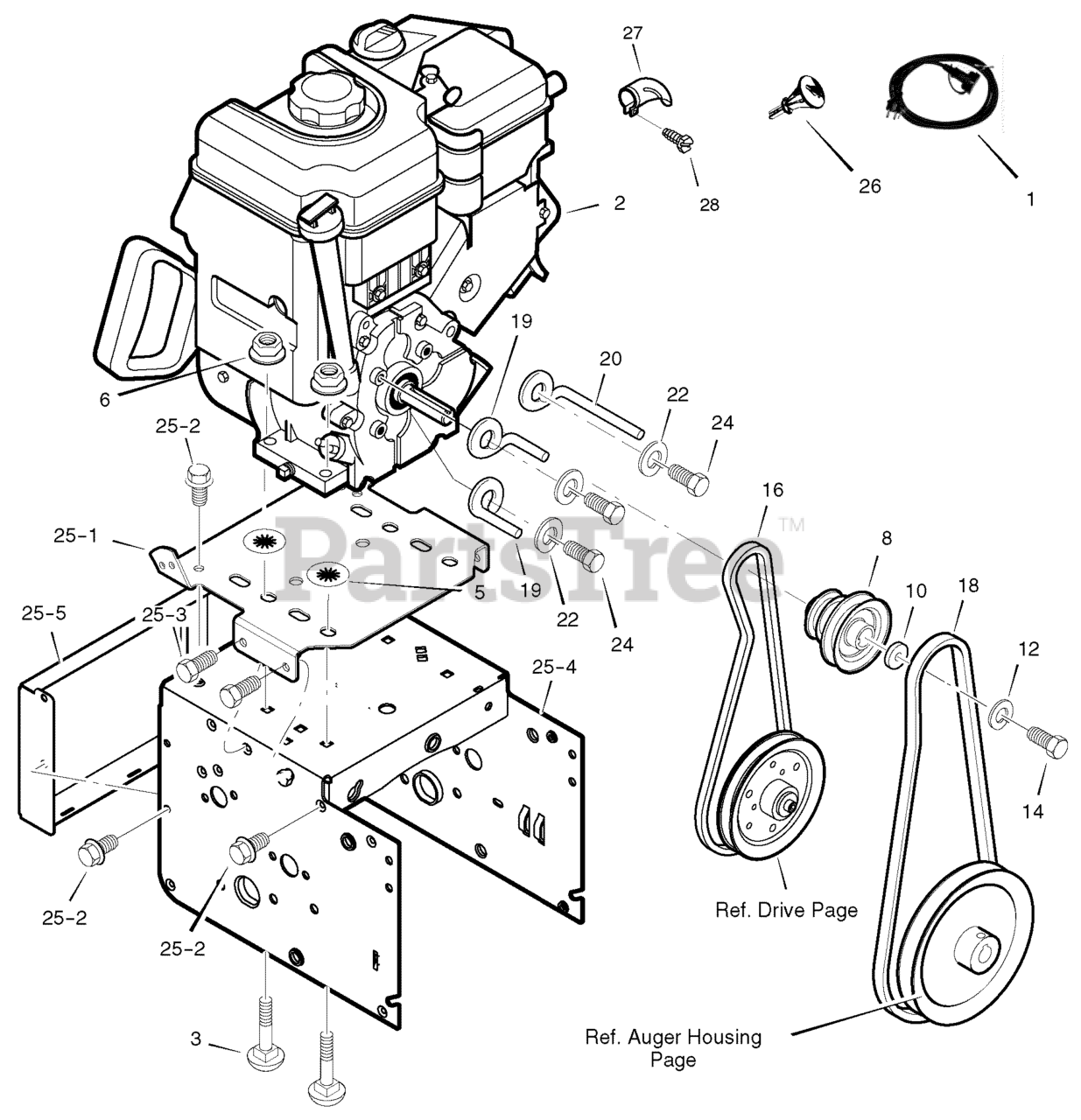

ST 1332 (632130x16D) - Frontier 32" Snow Thrower (2005) Engine Parts Diagram

32" Snow Thrower

Engine Parts Diagram

  • Title
1

Murray MT6219

CORD, STARTER

$

$

Currently unavailable

2

ENGINE

$

$

Not available

3

Murray MT002X97

BOLT, CARRIAGE 5/16--18

$

$

Currently unavailable

5

Murray MT028X76

RETAINER, PUSH

$

$

Currently unavailable

6

Murray MT710026

NUT, HEX 5/16--18

$

$

Currently unavailable

8

Murray MT1501109

PULLEY, ENGINE

$

$

Currently unavailable

10

$

$

Currently unavailable

12

Murray MT71063

WASHER .38ID

$

$

Currently unavailable

14

Murray MT001X20

SCREW, 3/8--24X1.00

$

$

Currently unavailable

16

Murray MT37X127

BELT, HYDRO DRIVE

$

$

Currently unavailable

18

Murray MT585416

BELT, AUGER V 4L

$

$

Currently unavailable

19

Murray MT1501368

GUIDE, BELT

$

$

Currently unavailable

20

Murray MT1501201

GUIDE, BELT

$

$

Currently unavailable

22

Murray MT71060

WASHER, SPTLK .31X.58X.08

$

$

Currently unavailable

24

Murray MT710097

SCREW, 5/16-24 x 0.75

$

$

Currently unavailable

25

FRAME ASSEMBLY

$

$

Not available

25--1

Murray MT1501062E511

PLATE, ENGINE MOUNT

$

$

Currently unavailable

25--2

Murray MT310169

SCREW, TAP 1/4--20 X .63

$

$

Currently unavailable

25--3

Murray MT25X020

SCREW, TAP 5/16--18 X .50

$

$

Currently unavailable

25--4

Murray MT1501295E511

FRAME, MOTOR BOX

$

$

Currently unavailable

25--5

Murray MT1501333E511

PANEL, BACK -- HYDRO

$

$

Currently unavailable

26

Murray MT1501214

KEY, ENGINE

$

$

Currently unavailable

27

Murray MT697816

DEFLECTOR, MUFFLER

$

$

Currently unavailable

28

$

$

Currently unavailable

----

Murray MTF--051059L

OWNER'S MANUAL

$

$

Currently unavailable
