ST 1332 (632130x16D) - Frontier 32" Snow Thrower (2005) Auger Housing Parts Diagram

32" Snow Thrower

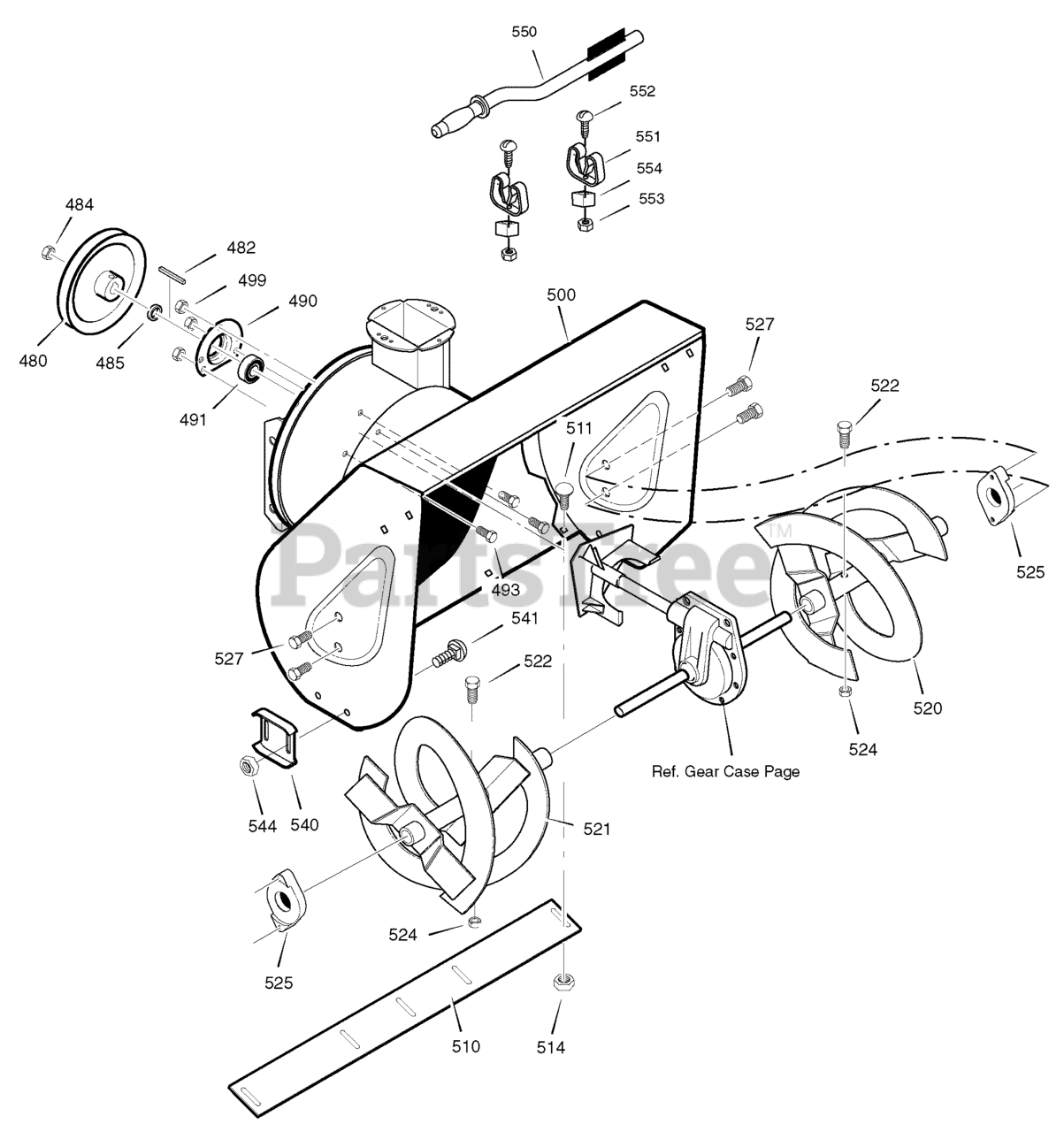

Auger Housing Parts Diagram

  • Title
480

Murray MT583146

PULLEY, 4L 8.40 OD

$

$

Currently unavailable

482

Murray MT2001022

KEY, SQUARE 3/16 X 3/4

$

$

Currently unavailable

484

Murray MT15X112

NUT, 1/2--20

$

$

Currently unavailable

485

Murray MT1501158

SPACER, FRICTION PULLEY

$

$

Currently unavailable

490

Murray MT582957 YZ

RETAINER, BALL BRNG

$

$

Currently unavailable

491

Murray MT1501389

BEARING, BALL

$

$

Currently unavailable

493

Murray MT001X92

BOLT, HEX 5/16--18X .50

$

$

Currently unavailable

499

Murray MT710026

NUT, 5/16--18 HEXWDFLLK

$

$

Currently unavailable

500

Murray MT1501721E511

HOUSING, ASSY

$

$

Currently unavailable

510

Murray MT760666E701

BLADE, SCRAPER

$

$

Currently unavailable

511

Murray MT001X45

BOLT, 5/16--18X.62

$

$

Currently unavailable

514

Murray MT710026

NUT, 5/16--18

$

$

Currently unavailable

520

Murray MT1501602E701

AUGER, ASSY, LH

$

$

Currently unavailable

521

Murray MT1501595E701

AUGER, ASSY, RH

$

$

Currently unavailable

522

Murray MT578647

SCREW, 5/16-18

$

$

Currently unavailable

524

Murray MT71391

NUT, 5/16--18

$

$

Currently unavailable

525

Murray MT53757

BEARING, FLANGE

$

$

Currently unavailable

527

Murray MT25X021

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

540

Murray MT1502093E701

SKID, HEIGHT ADJUST

$

$

Currently unavailable

541

Murray MT908156

BOLT, 5/16--18 X .50

$

$

Currently unavailable

544

Murray MT710026

NUT, 5/16--18

$

$

Currently unavailable

550

Murray MT1501576

BRUSH, CLEANOUT

$

$

Currently unavailable

551

Murray MT1501672

CLIP, RETAINER

$

$

Currently unavailable

552

$

$

Currently unavailable

553

$

$

Currently unavailable

554

$

$

Currently unavailable

----

Murray MT1501217

KIT, SHEAR BOLT

$

$

Currently unavailable
