ST-12B - Scag Three-Wheel Riding Mower, 12hp Briggs & Stratton (SN: 0469 - 9999) TRANSAXLE ASSEMBLY FOR 18" WHEELS ONLY Parts Diagram

Three-Wheel Riding Mower, 12hp Briggs & Stratton

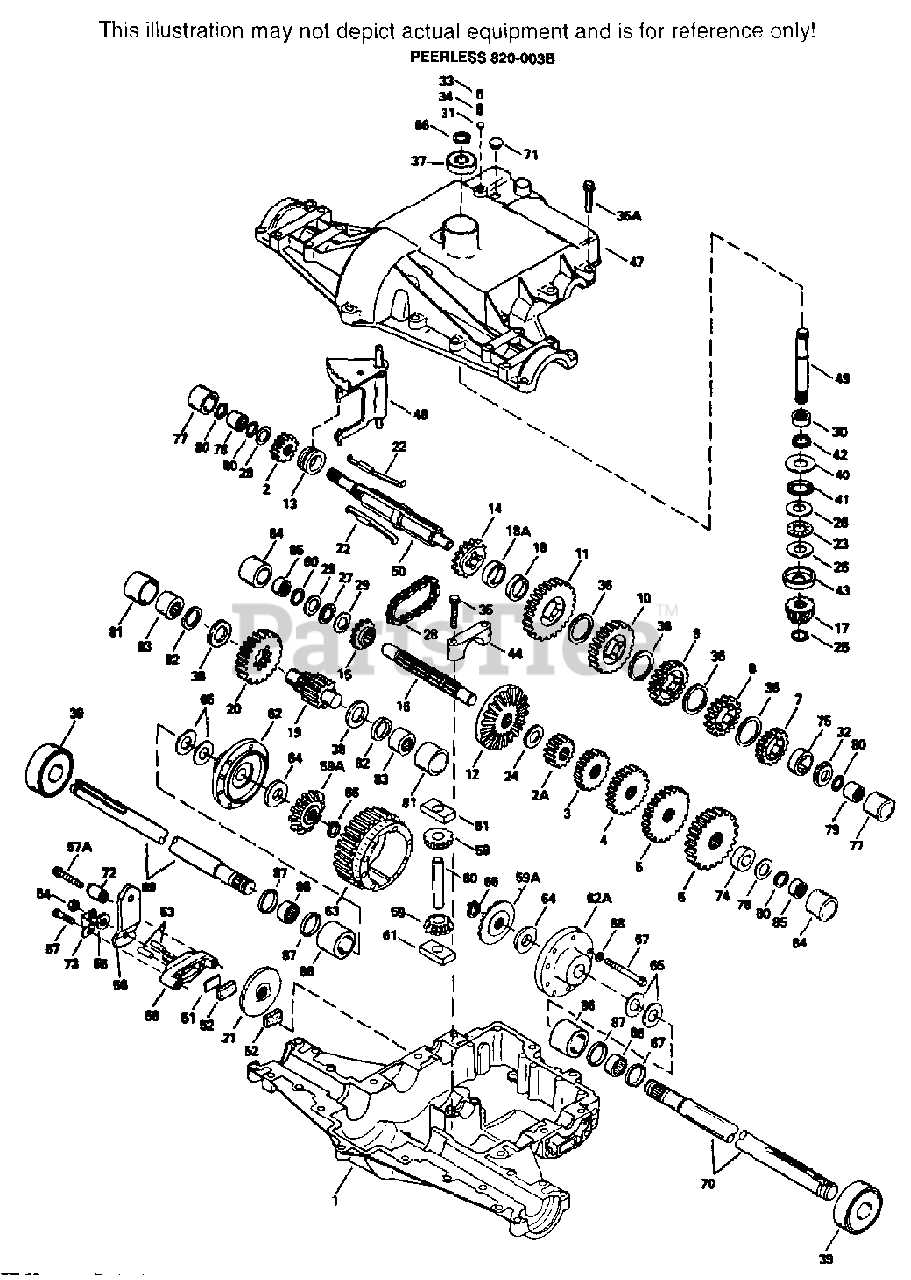

TRANSAXLE ASSEMBLY FOR 18" WHEELS ONLY Parts Diagram

  • Title

1

Scag 770088

CASE, TRANSAXLE(1)

$

$

Not available

2

Scag 778253

GEAR, SPUR(15 TEETH)(1)

$

$

Not available

2A

Scag 778211

GEAR, SPUR(12 TEETH)(1)

$

$

Not available

3

Scag 778199

GEAR, SPUR(15 TEETH)(1)

$

$

Not available

4

Scag 778200

GEAR, SPUR(20 TEETH)(1)

$

$

Not available

5

Scag 778201

GEAR, SPUR(25 TEETH)(1)

$

$

Not available

6

Scag 778202

GEAR, SPUR(28 TEETH)(1)

$

$

Not available

7

Scag 778203

GEAR, SPUR(22 TEETH)(1)

$

$

Not available

8

Scag 778204

GEAR, SPUR(25 TEETH)(1)

$

$

Not available

9

Scag 778205

GEAR, SPUR(30 TEETH)(1)

$

$

Not available

10

Scag 778206

GEAR, SPUR(35 TEETH)(1)

$

$

Not available

11

Scag 778207

GEAR, SPUR(37 TEETH)(1)

$

$

Not available

12

Scag 778246

GEAR, BEVEL(33 TEETH)(1)

$

$

Not available

13

Scag 784216

COLLAR, SHIFT(1)

$

$

Not available

14

Scag 786123

SPROCKET(18 TEETH)(1)

$

$

Not available

15

Scag 786082

SPROCKET(9 TEETH)(1)

$

$

Not available

16

Scag 776276

SHAFT, COUNTER(1)

$

$

Not available

17

Scag 778245

BEVEL PINION, INPUT(13 TEETH)(1)

$

$

Not available

18

Scag 786121

SPACER, NEUTRAL(.350/.340 THICK)(1)

$

$

Not available

18A

Scag 786122

SPACER, NEUTRAL(.276/.268 THICK)(1)

$

$

Not available

?19

Scag 776275

SHAFT, OUTPUT(9 TEETH)(1)

$

$

Not available

20

Scag 778247

GEAR, OUTPUT(35 TEETH)(1)

$

$

Not available

21

Scag 790043

DISC, BRAKE(1)

$

$

Not available

22

Scag 792123A

KEY(4)

$

$

Not available

23

Scag 780084

BEARING, THRUST(1)

$

$

Not available

24

Scag 780051

WASHER, THRUST(1)

$

$

Not available

25

Scag 788040

RING, RETAINING(1)

$

$

Not available

26

Scag 780051

WASHER, THRUST(2)

$

$

Not available

27

Scag 780071

BEARING, THRUST(1)

$

$

Not available

28

Scag 786081

CHAIN, ROLLER(NO. 41 CHAIN, 24 LINKS)(1)

$

$

Not available

29

Scag 780072

WASHER, THRUST(3)

$

$

Not available

30

Scag 780155

BEARING, NEEDLE(1)

$

$

Not available

31

Scag 792077

BALL, STEEL(1)

$

$

Not available

32

Scag 780139

WASHER, THRUST(1)

$

$

Not available

33

Scag 792078

SET SCREW, 3/8-16 X 3/8(1)

$

$

Not available

34

Scag 792079

SPRING(1)

$

$

Not available

35

Scag 792073

SCREW, FLNG. HEX HD., 1/4-20 X 1-1/4(2)

$

$

Not available

35A

Scag 792129

SCREW, HEX HD., 5/16-18 X 1-1/4(17)

$

$

Not available

36

Scag 780108

WASHER, THRUST(4)

$

$

Not available

37

Scag 780119

BEARING, BALL(1)

$

$

Not available

38

Scag 780128

WASHER, THRUST(2)

$

$

Not available

39

Scag 780050

BEARING, BALL(2)

$

$

Not available

40

Scag 780165

WASHER, FLAT(1)

$

$

Not available

41

Scag 788077

"O" RING(1)

$

$

Not available

42

Scag 788042

SEAL, OIL(1)

$

$

Not available

43

Scag 780166

WASHER, CUPPED(1)

$

$

Not available

44

Scag 786131

CAP, BEARING(1)

$

$

Not available

47

Scag 772097A

COVER, TRANSAXLE(INCL. 30, 37, & 42)(1)

$

$

Not available

48

Scag 784342

ROD & FORK ASSY., SHIFT(1)

$

$

Not available

49

Scag 776274

SHAFT, INPUT(1)

$

$

Not available

50

Scag 776314

SHAFT, BRAKE(1)

$

$

Not available

51

Scag 790007

PLATE, BRAKE PAD(1)

$15.99

$

In Stock, only 4 left!

0

52

Scag 790006

PAD, BRAKE(2)

$27.99

$

Usually ships in 2-12 days

0

53

Scag 786026

PIN, DOWEL(2)

$

$

Not available

54

Scag 792075

LOCK NUT, 5/16-24(1)

$

$

Not available

55

Scag 792076

WASHER, FLAT(1)

$

$

Not available

56

Scag 790014

LEVER, BRAKE(1)

$

$

Not available

57

Scag 792073

SCREW, FLG HEX HD. 1/4-20 X 1-1/4(1)

$

$

Not available

57A

Scag 792085

SCREW, FLG HEX HD. 1/4-20 X 2-1/4(1)

$

$

Not available

58

Scag 790025

HOLDER, BRAKE PAD(1)

$

$

Not available

59

Scag 778197

PINION, DIFFERENTIAL, BEVEL(2)

$

$

Not available

59A

Scag 778198

GEAR, BEVEL(2)

$

$

Not available

?60

Scag 786019

PIN, DRIVE(1)

$

$

Not available

61

Scag 786027

BLOCK, DRIVE(2)

$

$

Not available

62

Scag 774833

CARRIER, DIFFERENTIAL(1)

$

$

Not available

62A

Scag 774834

CARRIER, DIFFERENTIAL(1)

$

$

Not available

63

Scag 778248

GEAR, RING(31 TEETH)(1)

$

$

Not available

64

Scag 780107

WASHER(2)

$

$

Not available

65

Scag 780042

WASHER, THRUST(4)

$

$

Not available

?66

Scag 792018

RING, SNAP(2)

$

$

Not available

?67

Scag 792020

SCREW, HEX HD., 1/4-20 X 2-1/4"(4)

$

$

Not available

?68

Scag 792006

LOCKWASHER, 1/4"(4)

$

$

Not available

?69

Scag 774796A

AXLE(12 1/4" LONG)(1)

$

$

Not available

70

Scag 774795A

AXLE(26 1/4" LONG)(1)

$

$

Not available

71

Scag 792074

PLUG HEX HD., 9/16-18(1)

$

$

Not available

72

Scag 786067

SPACER(1)

$

$

Not available

73

Scag 786086

BRACKET, BRAKE LEVER(1)

$

$

Not available

74

Scag 786071

SPACER(1)

$

$

Not available

?75

Scag 786072

SPACER(1)

$

$

Not available

76

Scag 780153

WASHER(1)

$

$

Not available

77

Scag 786144

SLEEVE(STEPPED)(2)

$

$

Not available

78

Scag 780150

BEARING, NEEDLE(1)

$

$

Not available

79

Scag 780152

BEARING, NEEDLE(CAPPED)(1)

$

$

Not available

80

Scag 792001

"O" RING(5)

$

$

Not available

81

Scag 786142

SLEEVE(STEPPED)(2)

$

$

Not available

82

Scag 788071

RING, SQUARE CUT(2)

$

$

Not available

83

Scag 780049

BEARING, NEEDLE(CAPPED)(2)

$

$

Not available

84

Scag 786148

SLEEVE(STEPPED)(2)

$

$

Not available

85

Scag 780151

BEARING, NEEDLE(CAPPED)(2)

$

$

Not available

86

Scag 786145

SLEEVE(STEPPED)(2)

$

$

Not available

87

Scag 788070

RLING, SQUARE CUT(4)

$

$

Not available

88

Scag 780031

BEARING NEEDLE(2)

$

$

Not available

Scag 48310

TRANSAXLE ASSY., COMPLETE

$

$

Not available
