ST 121 E (961810009-00) - Husqvarna 21" Snow Blower (2011-06) HANDLE Parts Diagram

21" Snow Blower

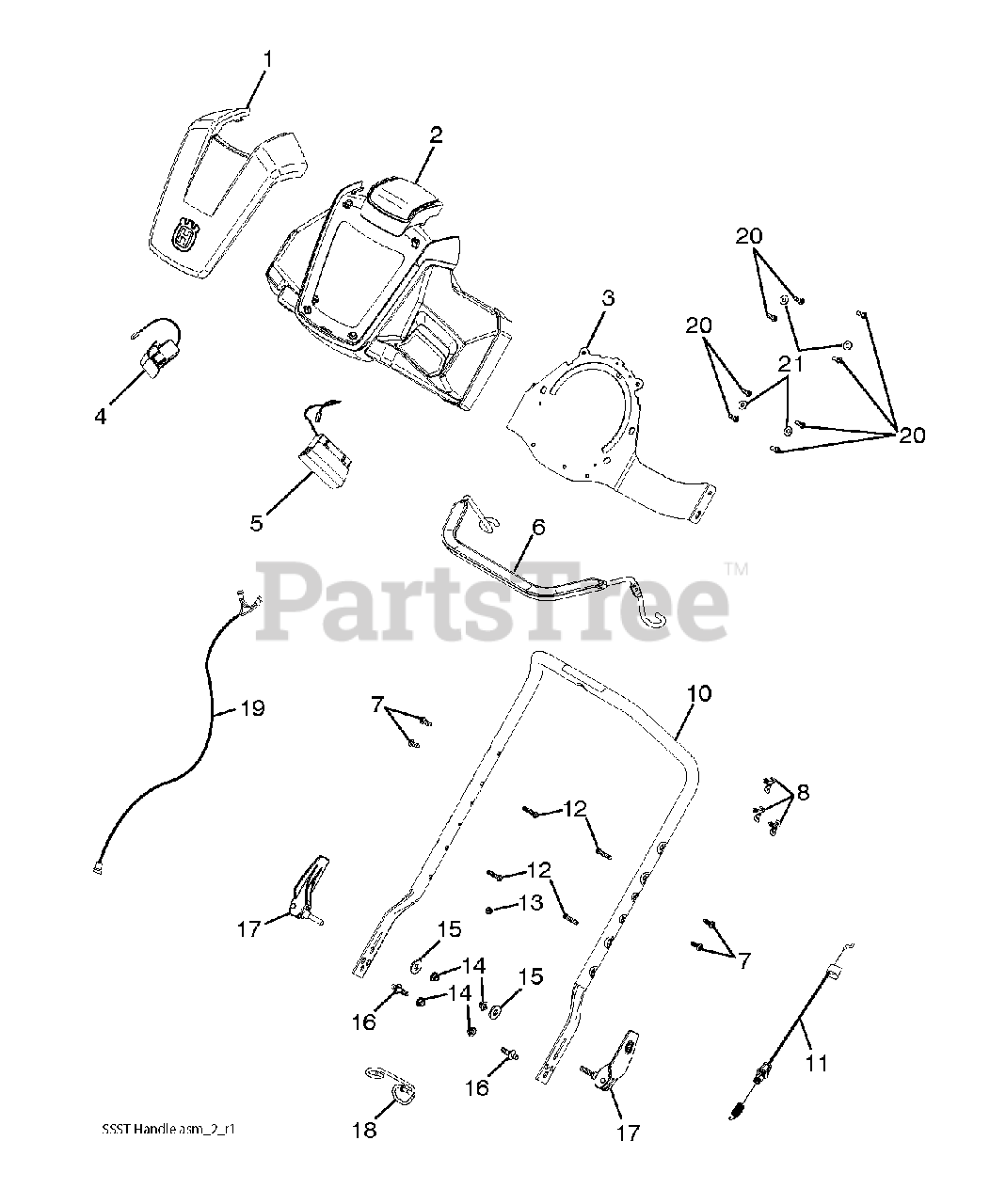

HANDLE Parts Diagram

  • Title

1

Husqvarna 532443245

SUBASM.CONTROL.SHROUD

$40.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532441624

COVER.HANDLE.LG.SHROUD

$46.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532443318

BRACKET.SUPPORT.DCC.STAMP

$42.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532442775

RP SUBASM.RH.LED.SGL.STAGE.SNO
(Superseded to 580680501)

$170.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532442776

SUBASM.LH.LED.SINGLE.STAGE.SNO

$

$

Not available

6

Husqvarna 532443433

BAIL.OVERMOLD.HUSQ.SSST.BLACK

$84.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532442250

SCREW.PAN.HD.TORX.1/4-20X.750

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

10

Husqvarna 532443432

HANDLE.UPPER.ERGO.SSST.GREY

$66.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532443018

CABLE.CLUTCH.SSST.SHORT

$31.99

$

In Stock, Qty 7

0

12

Husqvarna 817411318

SCREW.HWH.13-16X1.12

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 532132004

NUT
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 532442248

NUT 5/16- 18 FLANGE NYLOCK.BLK

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, only 2 left!

0

16

Husqvarna 532188821

BOLT

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 532443021

SUBASM.QUICK.ADJUST.COLD

$31.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532442234

GUIDE.ROPE.SNOW

$26.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532443046

HARNESS.LED

$20.99

$

Usually ships in 3-10 days

0

20

Husqvarna 817411312

SCREW.HX.13X.750

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 819091016

WASHER

$4.99

$

Usually ships in 3-10 days

0
