ST 120 (3312 HRS) - Troy-Bilt Tractor (SN: B390200101 - B390399999) FRAME, LIFT & STEERING ASSEMBLY Parts Diagram

Tractor

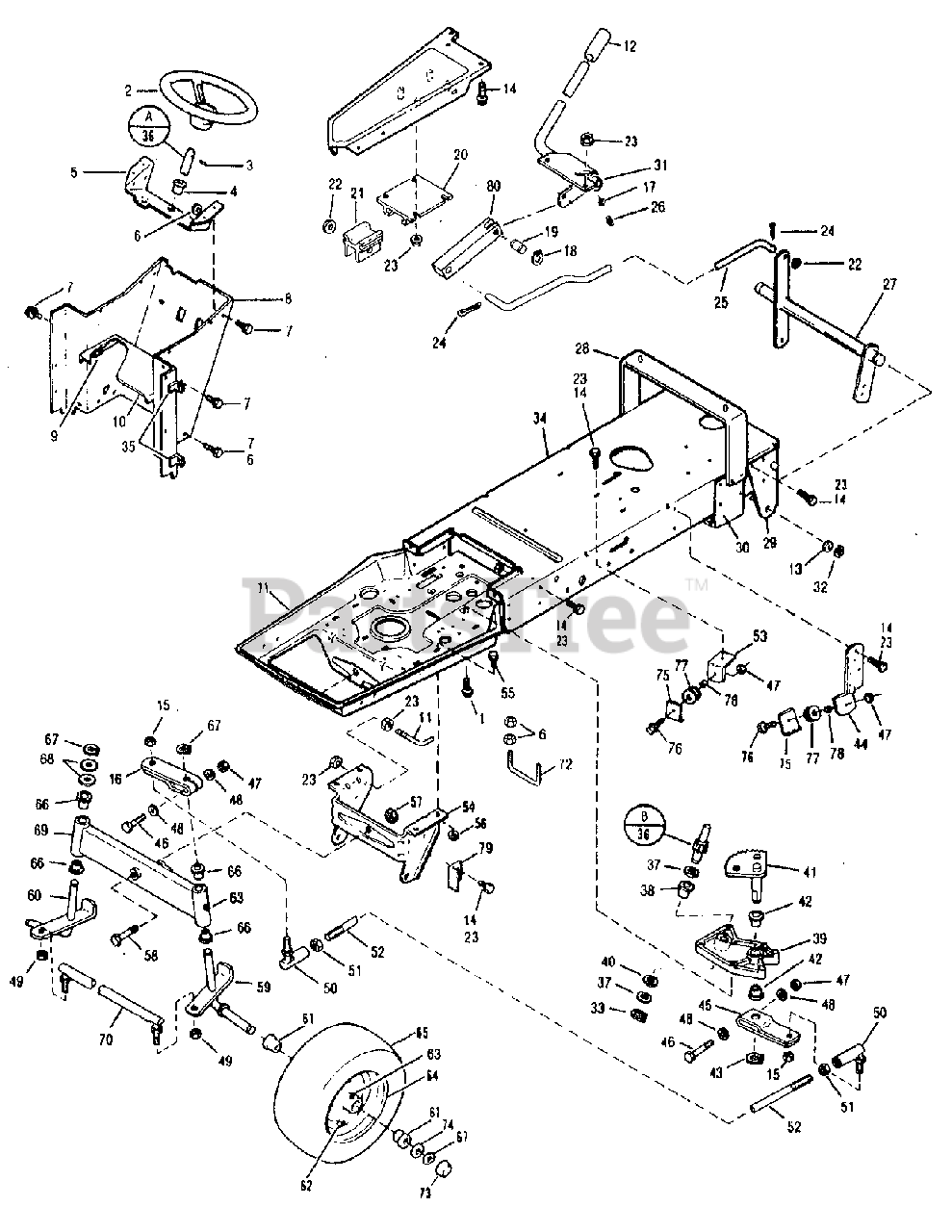

FRAME, LIFT & STEERING ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1724491

Thread Forming Screw, 5/16-18x3/4
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

2

MTD 1756862

Steering Wheel

$

$

Not available

3

N/A

Roll Pin, 1/4x2-1/4

Note: Common Hardware-Purchase Locally. Grade 5 or better where applicable.

$

$

Not available

4

MTD 1185632

Flange Bearing

$

$

Not available

5

MTD 1752363

Steering Shaft Support

$

$

Not available

6

Troy-Bilt 1186389

Flange Nut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1185309

Flange Screw, 1/4-20x5/8

$

$

Currently unavailable

8

MTD 1758724010

Instrument Panel Support

$

$

Not available

9

Troy-Bilt 11858456

U-Type Speed Nut, 1/4-20

$

$

Currently unavailable

10

MTD 1756073001

Battery Support

$

$

Not available

11

Troy-Bilt 1757291

Belt Guide

$

$

Not available

12

Troy-Bilt 1703539

Handle Grip
(Superseded to 720-0274)

$11.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 1185830

Flat Washer
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1186330

Flange Lock Screw, 5/16-18x7/8
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

15

MTD 1750957

Jam Lock Nut, 1/2-20

$

$

Not available

16

Troy-Bilt 1750495

Steering Arm

$

$

Currently unavailable

17

MTD 1805368

Washer

$

$

Not available

18

MTD 1185427

Retaining Ring

$

$

Not available

19

MTD 1747189

Pin

$

$

Not available

20

Troy-Bilt 1758272

Stationary Guide (Incl. Ref. No. 21)

$

$

Currently unavailable

21

Troy-Bilt 1758272

Sliding Guide (Incl. Ref. No. 20)

$

$

Currently unavailable

22

N/A

Flat Washer, 1/2"

Note: Common Hardware-Purchase Locally. Grade 5 or better where applicable.

$

$

Not available

23

Troy-Bilt 1186391

Flange Lock Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

24

N/A

Cotter Pin, 1/8" x 1"

Note: Common Hardware-Purchase Locally. Grade 5 or better where applicable.

$

$

Not available

25

MTD 1751070

Lift Rod

$

$

Not available

26

Troy-Bilt 1185803

Grease Fitting

$

$

Currently unavailable

27

Troy-Bilt 1757950001

Lift Shaft Assembly

$

$

Currently unavailable

28

MTD 1754944001

Fender Support Assembly

$

$

Not available

29

MTD 1758842001

Rear Panel Assembly

$

$

Not available

30

Troy-Bilt 1740984001

Axle Support

$

$

Currently unavailable

31

Troy-Bilt 1759450001

Lift Lever Assembly

$

$

Currently unavailable

32

Troy-Bilt 1185388

Retaining Ring
(Superseded to 916-0231)

$

$

Not available

33

Troy-Bilt 1177567

Retaining Ring
(Superseded to 716-0106)

$4.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 1755847001

Rear Frame

$

$

Currently unavailable

35

MTD 1742934

Angle Bracket Speed Nut

$

$

Not available

36

Troy-Bilt 1751284

Steering Shaft

$

$

Currently unavailable

37

MTD 1730375

Shim Washer

$

$

Not available

38

MTD 1747303

Flange Bearing

$

$

Not available

39

MTD 1750594

Steering Support Assembly

$

$

Not available

40

Troy-Bilt 1715301

Thrust Washer

$9.99

$

Usually ships in 3-6 days

0

41

MTD 1750501

Sector Gear Assembly

$

$

Not available

42

Troy-Bilt 1185386

Flange Bearing

$

$

Not available

43

Troy-Bilt 1113527

Retaining Ring
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

44

MTD 1747315001

Bracket

$

$

Not available

45

MTD 1750581

Spindle Arm Assembly

$

$

Not available

46

N/A

Hex Head Screw, 3/8-16 x 2-1/4

Note: Common Hardware-Purchase Locally. Grade 5 or better where applicable.

$

$

Not available

47

Troy-Bilt 1733398

Hex Lock Nut, 3/8-16
(Superseded to 912-3000)

Note: Common Hardware-Purchase Locally. Grade 5 or better where applicable.

$4.49

$

In Stock, Qty 9

0

48

MTD 1708755

Flat Washer, 3/8"

Note: Common Hardware-Purchase Locally. Grade 5 or better where applicable.

$

$

Not available

49

Troy-Bilt 1110150

Lock Nut, 3/8-24
(Superseded to 912-0214)

$6.49

$

In Stock, only 3 left!

0

50

MTD 1716180

Ball Joint

$

$

Not available

51

Troy-Bilt 1186247

Jam Hex Nut, 1/2-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

52

Troy-Bilt 1750499001

Steering Rod

$

$

Currently unavailable

53

MTD 1747316001

Bracket

$

$

Not available

54

MTD 1750811001

Attachment Bracket

$

$

Not available

55

MTD 1186345

Flange Hex Screw, 3/8-16 x 3/4

$

$

Not available

56

Troy-Bilt 1186393

Flange Hex Nut,3/8-16

$3.49

$

In Stock, only 2 left!

0

57

Troy-Bilt 1758231

Hex Lock Nut, 5/8-11
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

58

Troy-Bilt 178232

Hex Head Screw, 5/8-11 x 2-1/2 (Grade 5 )

$

$

Currently unavailable

59

Troy-Bilt 1750486001

Spindle Assembly, LH

$

$

Currently unavailable

60

MTD 1750490001

Spindle Assembly, RH

$

$

Not available

61

Troy-Bilt 1720341

Flange Bearing

$

$

Currently unavailable

62

Troy-Bilt 1718086

Valve Stem
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 1185976

Grease Fitting
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

64

MTD 1757981

Wheel (Incl. Refs. 61 & 63)

$

$

Not available

65

Troy-Bilt 1763072

Tire, 15 x 6.00-6
(Superseded to 734-1731-0901)

$49.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 1742133

Flange Bearing
(Superseded to 1764140)

$5.49

$

In Stock, only 3 left!

0

67

Troy-Bilt 1185388

Retaining Ring
(Superseded to 916-0231)

$

$

Not available

68

Troy-Bilt 1701447

Washer

$4.49

$

In Stock, Qty 8

0

69

MTD 1750494001

Front Axle Assembly

$

$

Not available

70

MTD 1750841001

Tie Rod

$

$

Not available

71

MTD 1742343001

Front Frame

$

$

Not available

72

Troy-Bilt 1744320

Belt Guide

$

$

Currently unavailable

73

Troy-Bilt 1744444

Wheel Cap

$

$

Not available

74

Troy-Bilt 1185830

Special Washer
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

75

MTD 1747320

Cable Guide

$

$

Not available

76

N/A

Hex Screw, 3/8-16 x 1-1/4

Note: Common Hardware-Purchase Locally. Grade 5 or better where applicable.

$

$

Not available

77

MTD 1756177

Pulley

$

$

Not available

78

Troy-Bilt 1747322

Spacer

$

$

Currently unavailable

79

MTD 1751715001

Bracket

$

$

Not available

80

Troy-Bilt 1754179

Push Link

$

$

Not available
