ST 120 (3312 HR) - Troy-Bilt Tractor (SN: B020300101 - B020499999) ELECTRICAL ASSEMBLY Parts Diagram

Tractor

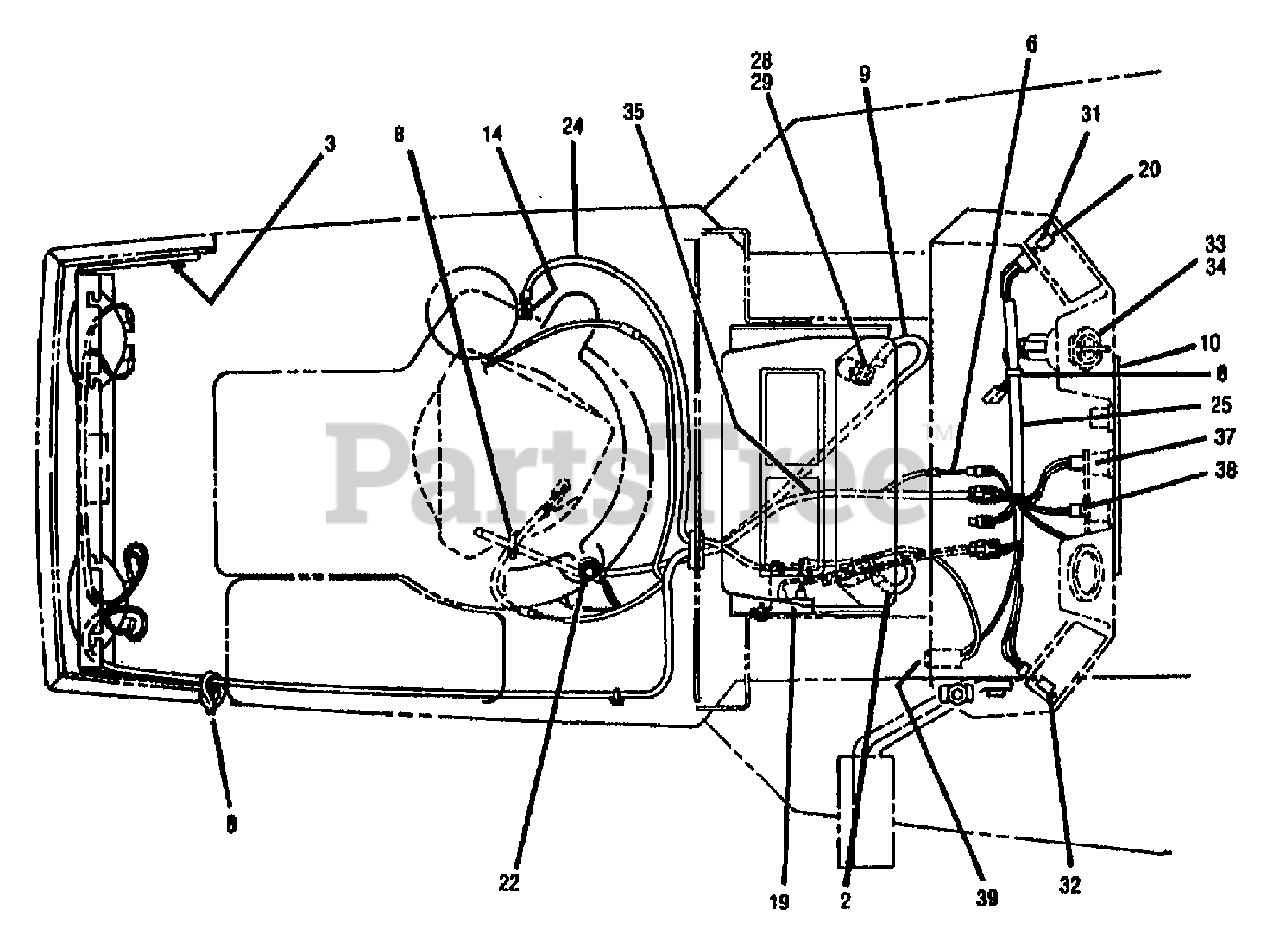

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
?1

0

NOT USED

$

$

Not available

2

Troy-Bilt 1756074

CABLE-BATTERY (+)

$

$

Not available

3

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

$

$

Currently unavailable

?5

MTD 1726435

HEADLAMP

$

$

Not available

6

MTD 1755616

ASSM-DIODE

$

$

Not available

?7

0

NOT USED

$

$

Not available

8

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

9

MTD 1756075

CABLE-BATTERY (-)

$

$

Not available

10

MTD 1756872

LENSE

$

$

Not available

?11

0

NOT USED

$

$

Not available

?12

0

N/A

$

$

Not available

?13

0

N/A

$

$

Not available

14

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

?15

MTD 1752586

BOLT-HOOK

$

$

Not available

?16

0

N/A

$

$

Not available

?17

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

?18

MTD 1752840

BATTERY

$

$

Not available

19

Troy-Bilt 1752137

SOLENOID
(Superseded to 1752137P)

$70.99

$

Usually ships in 3-6 days

0

20

MTD 1750963

SCR-FHP #6-32X.50 ZP

$

$

Not available

?21

MTD 1744022

RETAINER

$

$

Not available

22

0

N/A

$

$

Not available

?23

MTD 1748014

GROMMET-SPLIT

$

$

Not available

24

MTD 1741506

CABLE-STARTER

$

$

Not available

25

Troy-Bilt 1752134

HARNESS-CONSOLE WIRING

$

$

Currently unavailable

?26

MTD 1747738

CLIP-J

$

$

Not available

?27

Troy-Bilt 1761006

TRAY-BATTERY

$

$

Currently unavailable

28

0

N/A

$

$

Not available

29

0

N/A

$

$

Not available

?30

Troy-Bilt 1756076

HARNESS-INTERLOCK

$

$

Currently unavailable

31

Troy-Bilt 1754608

SWITCH-PTO

$66.99

$

Usually ships in 3-6 days

0

32

MTD 1754856

SWITCH-LIGHT

$

$

Not available

33

Troy-Bilt 1754250

SWITCH-IGNITION
(Superseded to 1754250P)

$73.99

$

Usually ships in 3-6 days

0

34

MTD 1753986

KEY-IGNITION

$

$

Not available

35

Troy-Bilt 1752908

HARNESS-WIRE ENGINE {3312HR,3312HRS}

$

$

Currently unavailable

35

Troy-Bilt 1763712

HARNESS-WIRE ENGINE {3312HR,3312HRS}

$

$

Currently unavailable

?36

MTD 1755802

BATTERY-HOLDDOWN

$

$

Not available

37

MTD 1751572

BULB (MFG NO. GE 73)
(Superseded to 1735285)

$

$

Not available

38

MTD 1186020

SCR-PHP M6-32X.38 ZP

$

$

Not available

39

Troy-Bilt 1743516

FUSE-30 AMP
(Superseded to 725-1543)

$4.49

$

Usually ships in 3-6 days

0

?40

MTD 1752809

GROMMET

$

$

Not available

?41

Troy-Bilt 1751328

SWITCH
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 8

0

?42

0

NOT USED

$

$

Not available

?43

MTD 1755349

SCR-PHP 1/4-20X.50 ZP

$

$

Not available

?44

Troy-Bilt 1752506

SWITCH-SEAT

$67.99

$

Usually ships in 3-6 days

0

?45

$

$

Currently unavailable

?46

$

$

Currently unavailable
