ST 120 (3312 HR) - Troy-Bilt Tractor (SN: B020100101 - B020299999) ELECTRICAL ASSEMBLY Parts Diagram

Tractor

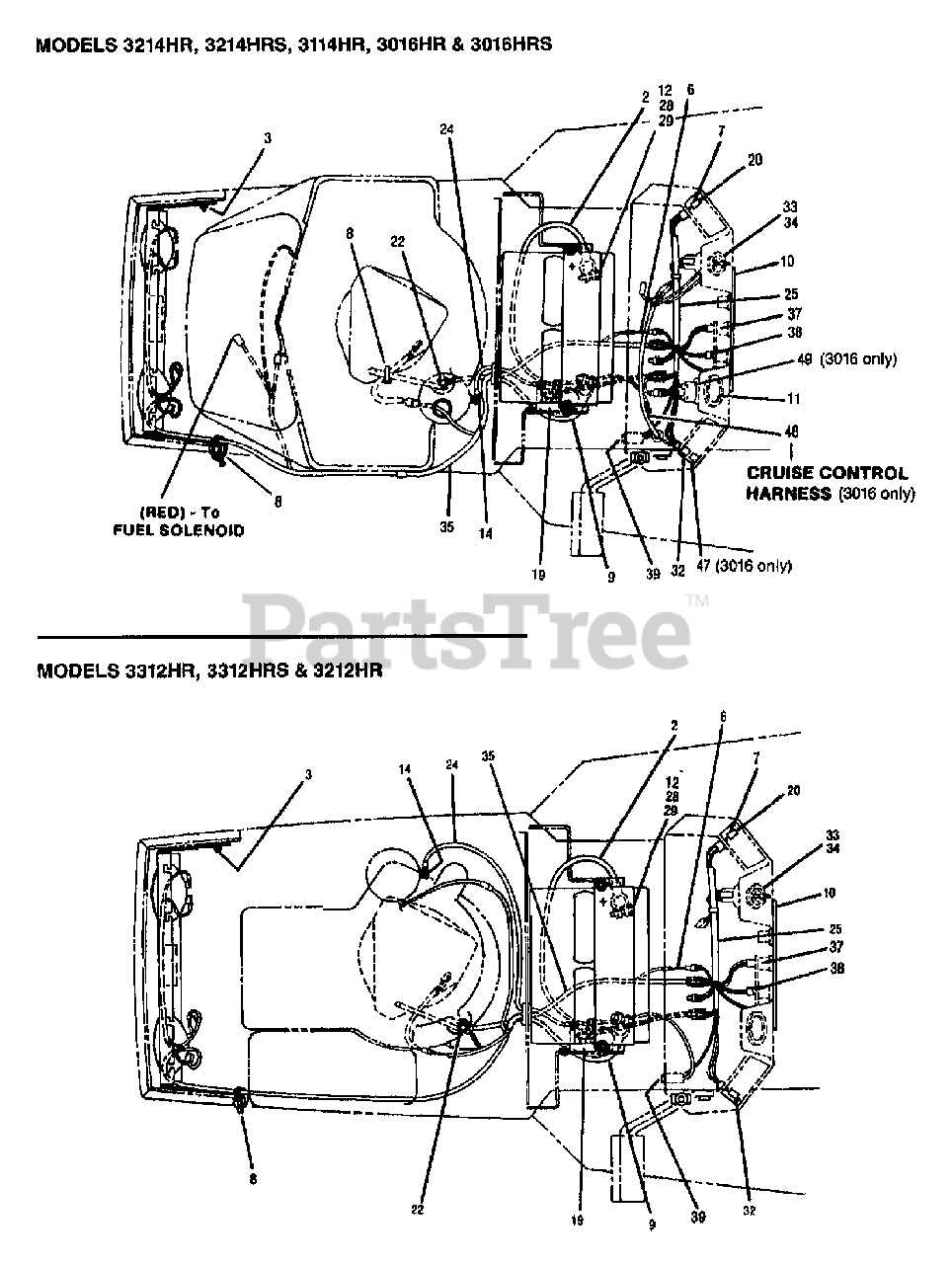

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

MTD 1751088

HARNESS-ACTUATOR {3214HR,3114HR}

$

$

Not available

2

Troy-Bilt 1756074

CABLE-BATTERY (+)

$

$

Not available

3

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

4

MTD 1744021STB

SUPPORT-LIGHT

$

$

Not available

5

MTD 1726435

HEADLAMP

$

$

Not available

6

MTD 1755616

ASSM-DIODE {3214HR,3114HR,3312HR,3212HR}

$

$

Not available

7

Troy-Bilt 1750978

SWITCH-ELEC LIFT {3214HR,3114HR}

$

$

Not available

8

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

9

MTD 1756075

CABLE-BATTERY (-)

$

$

Not available

10

MTD 1756872

LENSE

$

$

Not available

10

MTD 1759139

LENSE-INST PANEL TRACTOR {3016HR,3016HRS}

$

$

Not available

11

MTD 1754550

METER-HOUR (TRACTOR)

$

$

Not available

12

0

N/A

$

$

Not available

13

0

N/A

$

$

Not available

14

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

15

MTD 1752586

BOLT-HOOK

$

$

Not available

16

0

N/A

$

$

Not available

17

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

18

MTD 1752840

BATTERY

$

$

Not available

19

Troy-Bilt 1752137

SOLENOID
(Superseded to 1752137P)

$70.99

$

Usually ships in 3-6 days

0

20

MTD 1750963

SCR-FHP #6-32X.50 ZP

$

$

Not available

21

MTD 1744022

RETAINER

$

$

Not available

22

0

N/A

$

$

Not available

23

MTD 1748014

GROMMET-SPLIT

$

$

Not available

24

MTD 1722081

CABLE-STARTER {3214HR,3114HR,3016HR,3016HRS}

$

$

Not available

24

MTD 1741506

CABLE-STARTER {3312HR,3212HR}

$

$

Not available

25

Troy-Bilt 1752134

HARNESS-CONSOLE WIRING

$

$

Currently unavailable

26

MTD 1747738

CLIP-J

$

$

Not available

27

MTD 1756630

PAD-RUBBER

$

$

Not available

28

0

N/A

$

$

Not available

29

0

N/A

$

$

Not available

30

Troy-Bilt 1756076

HARNESS-INTERLOCK {3214HR,3114HR,3312HR, 3212HR}

$

$

Currently unavailable

30

MTD 1756180

HARNESS-INTERLOCK {3016HR,3016HRS}

$

$

Not available

31

Troy-Bilt 1754608

SWITCH-PTO

$66.99

$

Usually ships in 3-6 days

0

32

MTD 1754856

SWITCH-LIGHT

$

$

Not available

33

Troy-Bilt 1754250

SWITCH-IGNITION
(Superseded to 1754250P)

$73.99

$

Usually ships in 3-6 days

0

34

MTD 1753986

KEY-IGNITION

$

$

Not available

35

MTD 1752136

HARNESS-ENGINE {3214HR,3114HR}

$

$

Not available

35

Troy-Bilt 1752908

HARNESS-WIRE ENGINE {3312HR,3212HR}

$

$

Currently unavailable

35

MTD 1754676

HARNESS {3016HR,3016HRS}

$

$

Not available

36

MTD 1755802

BATTERY-HOLDDOWN

$

$

Not available

37

MTD 1751572

BULB (MFG NO. GE 73)
(Superseded to 1735285)

$

$

Not available

38

MTD 1186020

SCR-PHP M6-32X.38 ZP

$

$

Not available

39

Troy-Bilt 1743516

FUSE-30 AMP
(Superseded to 725-1543)

$4.49

$

Usually ships in 3-6 days

0

40

MTD 1752809

GROMMET

$

$

Not available

41

Troy-Bilt 1751328

SWITCH
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

42

MTD 1747353

HARNESS-ELEC LIFT {3214HR,3114HR}

$

$

Not available

43

MTD 1755349

SCR-PHP 1/4-20X.50 ZP

$

$

Not available

44

Troy-Bilt 1752506

SWITCH-SEAT

$67.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 1755487

GROMMET

$

$

Currently unavailable

46

Troy-Bilt 1754934

DECAL

$

$

Currently unavailable

47

MTD 1754607

SWITCH-SPEED CONTROL {3016HR,3016HRS}

$

$

Not available

48

Troy-Bilt 1744678

HARNESS, CRUISE

$

$

Currently unavailable

49

MTD 1749907

RELAY-SPEED CONTROL {3016HR,3016HRS}

$

$

Not available

50

Troy-Bilt 1756182

BLOCK {3016HR,3016HRS}

$

$

Currently unavailable

51

Troy-Bilt 1758070

SCR-HHS 10-24X.625 ZP {3016HR,3016HRS}
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

52

MTD 1751340

SWITCH {3016HR,3016HRS}

$

$

Not available
