ST 120 (3312 GRS) - Troy-Bilt Tractor (SN: B380200101 - B380299999) BODYWORK & TRIM ASSEMBLY Parts Diagram

Tractor

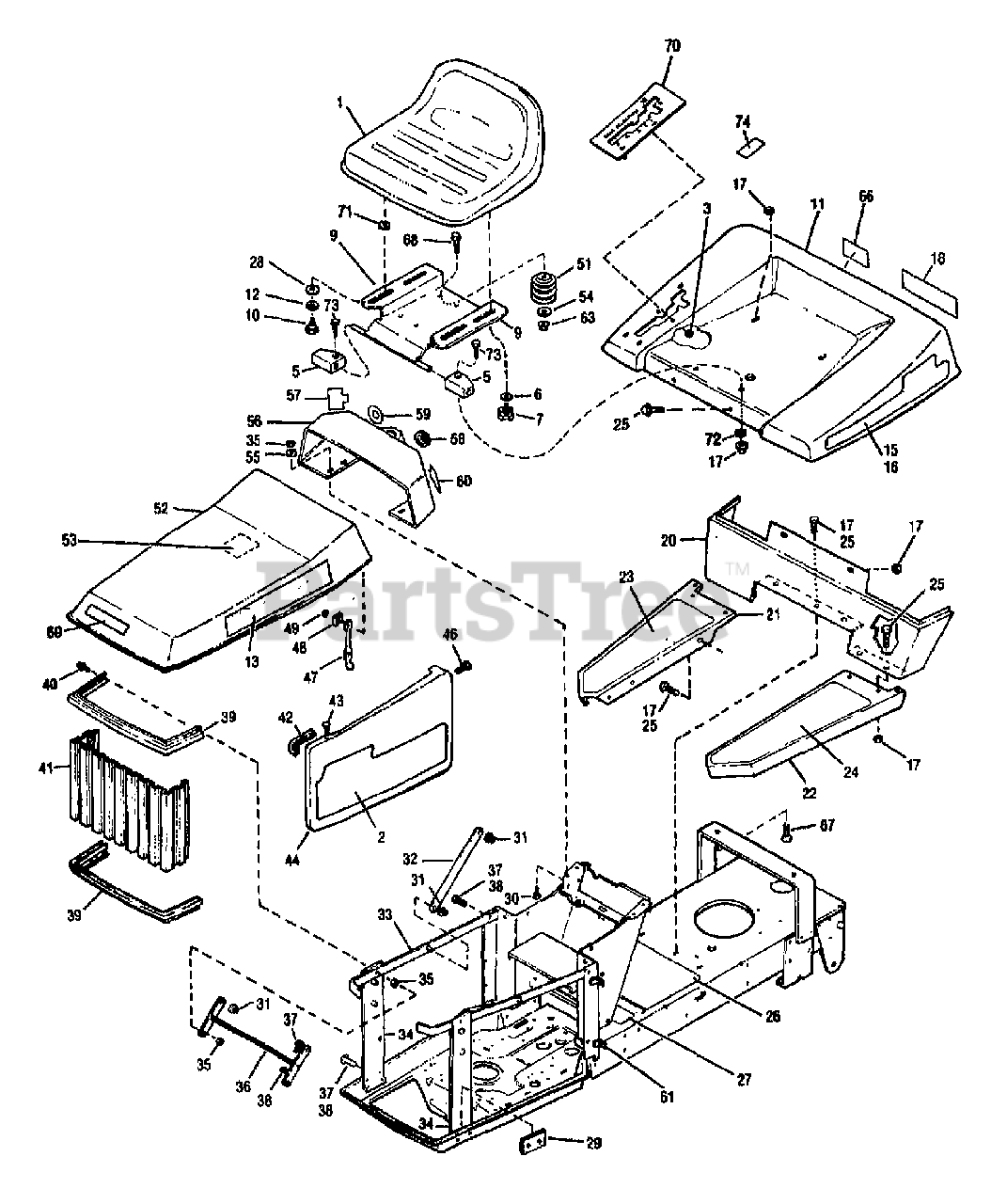

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1756861

SEAT

$

$

Currently unavailable

2

MTD 1757941

DECAL-SIDECVR LH RED

$

$

Not available

2

Troy-Bilt 1757940

DECAL-SIDECVR RH RED

$

$

Currently unavailable

3

Troy-Bilt 1750532

NUT-SELF THREADING
(Superseded to 712-0415)

$5.49

$

In Stock, only 3 left!

0

?4

0

N/A

$

$

Not available

5

MTD 1753911

BLOCK-PIVOT

$

$

Not available

6

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

7

MTD 1734269

KNOB

$

$

Not available

?8

0

N/A

$

$

Not available

9

MTD 1760963001

ASSM-SEAT SUPPORT

$

$

Not available

10

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5ZP

$

$

Not available

11

Troy-Bilt 1761041010

FENDER-REAR

$

$

Currently unavailable

12

MTD 1705793

WASHER-1.06X.51X.09 NYLON

$

$

Not available

13

MTD 1759100

DECAL-LOGO

$

$

Not available

?14

0

N/A

$

$

Not available

15

Troy-Bilt 1757942

DECAL-FENDER RH RED

$

$

Currently unavailable

16

MTD 1757943

DECAL-FENDER LH RED

$

$

Not available

17

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

18

MTD 1759102

DECAL-LOGO FENDER

$

$

Not available

?19

0

N/A

$

$

Not available

20

MTD 1743987010

SUPT-RUNNING BOARD

$

$

Not available

21

MTD 1751805010

BOARD-RUNNING RH

$

$

Not available

22

MTD 1751803010

BOARD-RUNNING LH

$

$

Not available

23

MTD 1762528

PAD-FOOT RH

$

$

Not available

24

MTD 1762529

PAD-FOOT LH

$

$

Not available

25

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

26

MTD 1762527

PAD-FOOT CENTER

$

$

Not available

27

Troy-Bilt 1755946

DECAL-INSTRUCTION

$

$

Currently unavailable

28

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

29

MTD 1754415

SPACER-PLATE

$

$

Not available

30

0

N/A

$

$

Not available

31

Troy-Bilt 1747836

RETAINER-PUSH ON .24X.73 ZP
(Superseded to 726-0233)

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 1742459001

LINK-HINGE

$

$

Currently unavailable

33

MTD 1758587010

ASSM-HINGE STRAP

$

$

Not available

34

MTD 1752914001

ASSM-GRILLE SUPT (RED)

$

$

Not available

35

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

?36

MTD 1742458001

LINK-HINGE

$

$

Not available

37

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

38

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

39

Troy-Bilt 1742493010

CAP-GRILLE

$

$

Currently unavailable

40

0

N/A

$

$

Not available

41

Troy-Bilt 1742494001

GRILLE-BLACK

$

$

Currently unavailable

42

MTD 1753912

GUIDE-SIDE CVR (RED)

$

$

Not available

43

Troy-Bilt 1756629

RIVET-POP

$

$

Currently unavailable

44

Troy-Bilt 1743554010

COVER-SIDE LH RED

$

$

Currently unavailable

44

MTD 1743553010

COVER-SIDE RH RED TRACTOR

$

$

Not available

?45

0

N/A

$

$

Not available

46

0

N/A

$

$

Not available

47

MTD 1727127

LATCH-RUBBER

$

$

Not available

48

MTD 1727126

CLIP

$

$

Not available

49

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

?50

0

N/A

$

$

Not available

51

Troy-Bilt 1755449

SPRING-COMPRESSION

$

$

Not available

52

Troy-Bilt 1744051010

ASSM-HOOD RED

$

$

Currently unavailable

53

MTD 1756876

DECAL-SVC INST

$

$

Not available

54

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$6.49

$

Usually ships in 3-6 days

0

55

0

N/A

$

$

Not available

56

MTD 1753039

PANEL-INSTRUCTION

$

$

Not available

57

MTD 1755931

DECAL-THROTTLE

$

$

Not available

?58

MTD 1756739

CAP

$

$

Not available

59

MTD 1755932

DECAL-IGNITION

$

$

Not available

60

MTD 1755933

DECAL-CHOKE

$

$

Not available

61

MTD 1742934

NUT-SPEED

$

$

Not available

?62

0

N/A

$

$

Not available

63

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

?64

0

N/A

$

$

Not available

?65

0

N/A

$

$

Not available

66

MTD 1757366

DECAL-FUEL

$

$

Not available

67

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

68

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

?69

MTD 1759101

DECAL-LOGO

$

$

Not available

70

Troy-Bilt 1759453

QUADRANT-SHIFT

$

$

Currently unavailable

71

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

72

Troy-Bilt 1723384

WASHER-1.5X.343X.104
(Superseded to 736-3089)

$

$

Not available

73

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

74

MTD 1900333

DECAL-U.S.A.

$

$

Not available
