ST 120 (3312 GR) - Troy-Bilt Tractor (SN: B010100101 - B010299999) BRAKE & CLUTCH ASSEMBLY Parts Diagram

Tractor

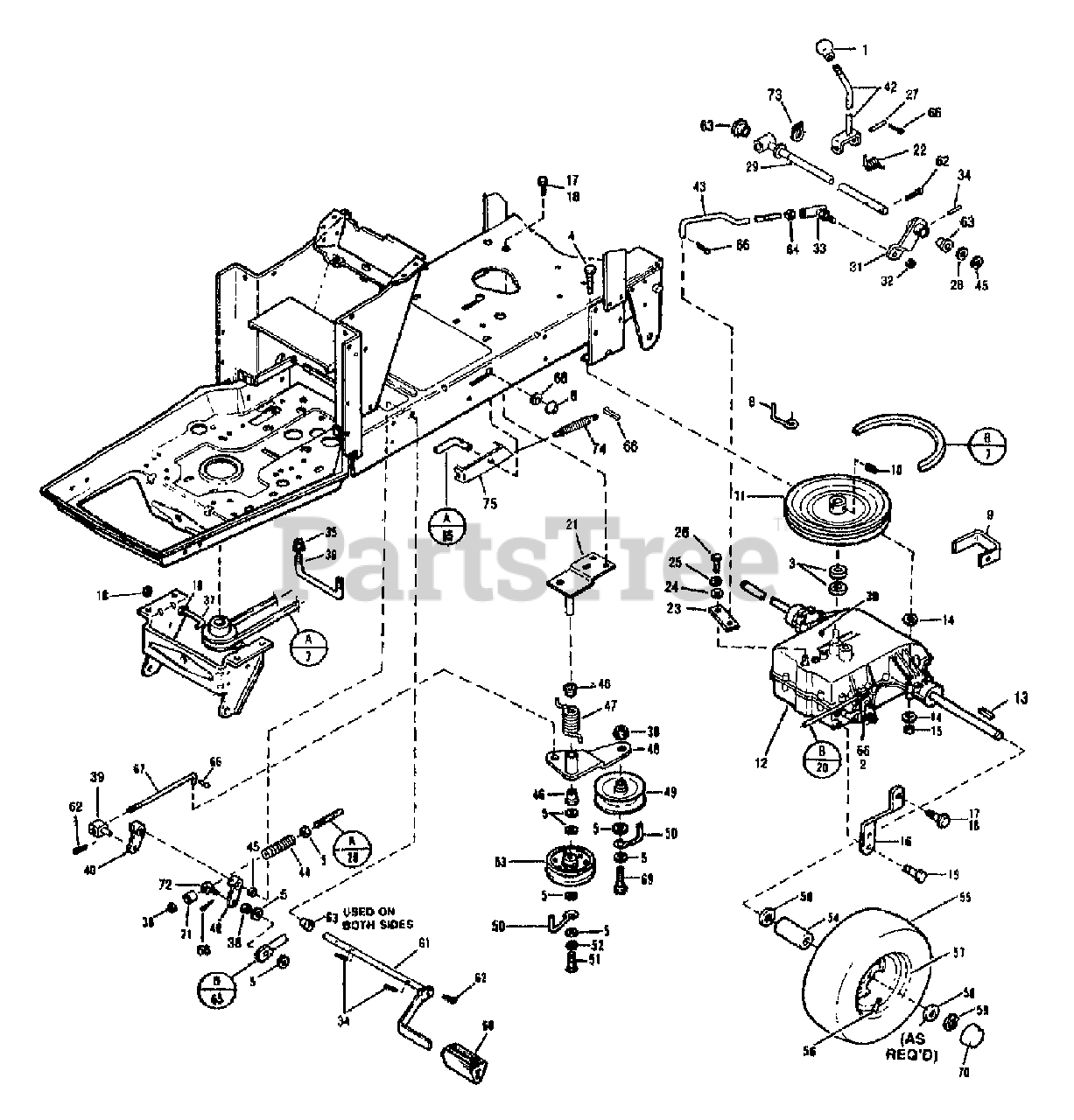

BRAKE & CLUTCH ASSEMBLY Parts Diagram

  • Title
1

$

$

Not available

2

0

N/A

$

$

Not available

3

Troy-Bilt 1705092

WASHER-1.0X.64X.09
(Superseded to 736-0156)

$4.49

$

In Stock, Qty 12

0

4

0

N/A

$

$

Not available

5

0

N/A

$

$

Not available

6

MTD 1747186

CAP-PUSH ON

$

$

Not available

$63.99

$

Usually ships in 3-6 days

0

8

MTD 1752798

ROD-BELT GUIDE

$

$

Not available

9

MTD 1750297

GUIDE-BELT

$

$

Not available

10

MTD 1185596

SCR-SET 5/16-18 X 5/16

$

$

Not available

11

MTD 1743640

SHEAVE-TRANSMISSION

$

$

Not available

12

0

TRANSMISSION, PEERLESS 5-SPEED, MODEL 801-046

$

$

Not available

12

0

TRANSMISSION, PEERLESS 5-SPEED, MODEL 920-011

$

$

Not available

$

$

Currently unavailable

14

0

N/A

$

$

Not available

15

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

16

MTD 1742103GAR

TRANS-SUPPORT

$

$

Not available

17

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

18

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

20

MTD 1746943

ROD-BRAKE

$

$

Not available

21

Troy-Bilt 1751808GAR

ASSM-LEVER SUPP

$

$

Currently unavailable

22

MTD 1750526

SPRING-TORSION

$

$

Not available

23

MTD 1743606

ARM-TRANS {3114GR,3214GR}

$

$

Not available

23

MTD 1754661

ARM-TRANSMISSION {3212GR,3312GR,3312GRS}

$

$

Not available

24

0

N/A

$

$

Not available

25

0

N/A

$

$

Not available

26

0

N/A

$

$

Not available

27

MTD 1750946

PIN-.375 X 2.42 ZP

$

$

Not available

28

Troy-Bilt 1705093

WASHER-1.0X.64X.029
(Superseded to 736-0302)

$

$

Not available

29

MTD 1750539

ASSM-SHAFT

$

$

Not available

30

0

N/A

$

$

Not available

31

MTD 1750299

ASSM-SHIFT ARM {3114GR,3214GR}

$

$

Not available

31

Troy-Bilt 1754663

ASSM-ARM SHIFT {3212GR,3312GR,3312GRS}

$

$

Currently unavailable

32

0

N/A

$

$

Not available

33

MTD 1752524

JOINT-BALL

$

$

Not available

34

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

35

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 1744320

GUIDE-BELT

$

$

Currently unavailable

37

Troy-Bilt 1757291

GUIDE-BELT

$

$

Not available

38

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

39

MTD 1748491

PIVOT

$

$

Not available

40

MTD 1751880

ASSM-ARM

$

$

Not available

42

MTD 1756047

ASSM-SHIFT LEVER

$

$

Not available

43

MTD 1752523

ROD-SHIFT {3114GR,3214GR}

$

$

Not available

43

MTD 1754660

ROD-SHIFT {3212GR,3312GR,3312GRS}

$

$

Not available

44

MTD 1728908

SPRING

$

$

Not available

45

0

N/A

$

$

Not available

46

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

47

MTD 1751809

SPRING-TORSION

$

$

Not available

48

MTD 1746941GAR

ASSM-IDLER ARM

$

$

Not available

49

Troy-Bilt 1726660

PULLEY-IDLER
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

50

Troy-Bilt 1725555

GUIDE-BELT
(Superseded to 1760096)

$

$

Not available

51

0

N/A

$

$

Not available

52

0

N/A

$

$

Not available

$48.99

$

Usually ships in 3-6 days

0

54

MTD 1742054

SPACER-1.0X.798X1.38 ZP

$

$

Not available

55

$

$

Not available

56

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

57

$

$

Currently unavailable

57

MTD 1757986

WHEEL-REAR {3312GR,3214GR}

$

$

Not available

58

MTD 1747998

WASHER-1.87X.765X.06 SPECIAL

$

$

Not available

59

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

60

MTD 1728694

FOOT REST

$

$

Not available

61

MTD 1756049

ASSM-BRAKE PEDAL

$

$

Not available

62

0

N/A

$

$

Not available

63

MTD 1714233

BUSHING-.68X.62X.15 FLNG

$

$

Not available

64

0

N/A

$

$

Not available

65

MTD 1751063

ROD-BRAKE LOCK

$

$

Not available

66

0

N/A

$

$

Not available

67

MTD 1746942

ROD-CLUTCH

$

$

Not available

68

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

69

0

N/A

$

$

Not available

70

MTD 1747873

CAP-WHEEL

$

$

Not available

71

MTD 1713783

SPACER-.62X.406X.56 ZP

$

$

Not available

72

$

$

Currently unavailable

73

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, Qty 12

0

74

MTD 1729482

SPRING

$

$

Not available

75

Troy-Bilt 1755584GAR

BRACKET-INTERLOCK

$

$

Currently unavailable
