ST 120 (3212 HR) - Troy-Bilt Tractor (SN: 0100101 - 0199999) HYDROSTATIC & BRAKE ASSEMBLY Parts Diagram

Tractor

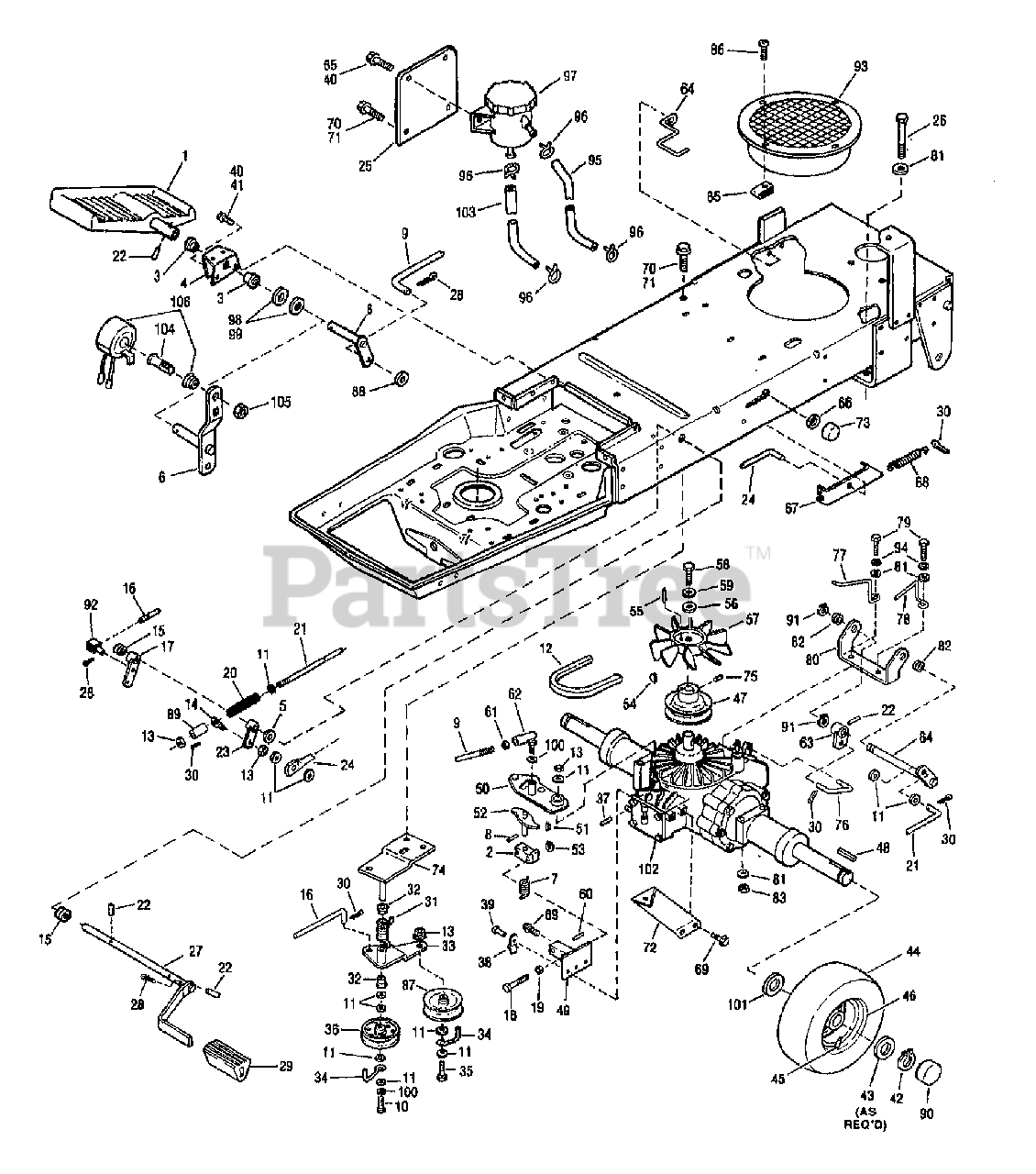

HYDROSTATIC & BRAKE ASSEMBLY Parts Diagram

  • Title
1

$

$

Currently unavailable

2

MTD 1753188

BLOCK-PIVOT

$

$

Not available

3

MTD 1185802

BEARING-FLANGE

$

$

Not available

4

Troy-Bilt 1756687GAR

SUPT-HYD PEDAL

$

$

Currently unavailable

5

0

N/A

$

$

Not available

6

MTD 1755880

ASSM-CONTROL ARM

$

$

Not available

6

MTD 1756166

ASSM-CONT {3016HR,3016HRS}

$

$

Not available

7

MTD 1753190

SPRING-TORSION

$

$

Not available

8

MTD 1120209

PIN-ROLL .188X.75

$

$

Not available

9

MTD 1755878

ROD-SPEED CONTROL

$

$

Not available

10

0

N/A

$

$

Not available

11

0

N/A

$

$

Not available

$83.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

14

$

$

Currently unavailable

15

MTD 1714233

BUSHING-.68X.62X.15 FLNG

$

$

Not available

16

MTD 1746942

ROD-CLUTCH

$

$

Not available

17

MTD 1751879

ASSM-ARM

$

$

Not available

18

MTD 1753187

SCR-ADJUSTING

$

$

Not available

19

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

20

MTD 1751022

SPRING-COMP.

$

$

Not available

21

MTD 1753170

ROD-BRAKE

$

$

Not available

22

0

N/A

$

$

Not available

23

MTD 1751880

ASSM-ARM

$

$

Not available

24

MTD 1751063

ROD-BRAKE LOCK

$

$

Not available

25

$

$

Currently unavailable

26

0

N/A

$

$

Not available

27

MTD 1756049

ASSM-BRAKE PEDAL

$

$

Not available

28

0

N/A

$

$

Not available

29

MTD 1728694

FOOT REST

$

$

Not available

30

0

N/A

$

$

Not available

31

MTD 1751809

SPRING-TORSION

$

$

Not available

32

Troy-Bilt 1755538

BELT-V
(Superseded to 1764008)

$139.99

$

Usually ships in 3-6 days

0

33

MTD 1746941GAR

ASSM-IDLER ARM

$

$

Not available

34

Troy-Bilt 1725555

GUIDE-BELT
(Superseded to 1760096)

$

$

Not available

35

0

N/A

$

$

Not available

$48.99

$

Usually ships in 3-6 days

0

37

0

N/A

$

$

Not available

38

MTD 1756144

LATCH

$

$

Not available

39

Troy-Bilt 1185879

RIVET-POP
(Superseded to 728-04021)

$3.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

41

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

42

Troy-Bilt 1118554

RING-RETAINING
(Superseded to 916-0102)

$5.49

$

In Stock, Qty 20+

0

43

MTD 1747872

WASHER-1.88X1.015X.06 ZP

$

$

Not available

44

$

$

Not available

45

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

46

$

$

Currently unavailable

46

MTD 1757984

WHEEL-REAR

$

$

Not available

47

MTD 1751586

SHEAVE-HYDRO

$

$

Not available

48

0

N/A

$

$

Not available

49

MTD 1753186

ASSM-ADJUSTOR BLOCK

$

$

Not available

50

MTD 1753199

ASSM-SPEED CONT ARM

$

$

Not available

51

0

N/A

$

$

Not available

52

MTD 1753193

ASSM-PIVOT SHAFT

$

$

Not available

53

MTD 1118799

RING-RET.EXT .375 ID

$

$

Not available

54

0

N/A

$

$

Not available

55

0

N/A

$

$

Not available

56

MTD 1756134

WASHER-1.0X.281X.179 ZP

$

$

Not available

57

MTD 1753203

FAN-HYDRO TRANSMISSION

$

$

Not available

58

0

N/A

$

$

Not available

59

0

N/A

$

$

Not available

60

MTD 1753189

PIN-DOWEL .375 X 2.51

$

$

Not available

61

0

N/A

$

$

Not available

62

Troy-Bilt 1756175

JOINT-BALL

$

$

Currently unavailable

63

MTD 1754953

ASSM-BRAKE ARM

$

$

Not available

64

MTD 1756627

GUIDE

$

$

Not available

65

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

66

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

67

Troy-Bilt 1755584GAR

BRACKET-INTERLOCK

$

$

Currently unavailable

67

Troy-Bilt 1756181GAR

BRKT {3016HR,3016HRS}

$

$

Currently unavailable

68

MTD 1729482

SPRING

$

$

Not available

69

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

70

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

71

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 1754946GAR

BRACE-TRANSAXLE

$

$

Currently unavailable

73

MTD 1747186

CAP-PUSH ON

$

$

Not available

74

Troy-Bilt 1751808GAR

ASSM-LEVER SUPP

$

$

Currently unavailable

75

Troy-Bilt 1747166

SCR-SET 1/4-28X.38 HXSKT

$4.49

$

Usually ships in 3-6 days

0

76

MTD 1754951

BRAKE-LINK

$

$

Not available

77

MTD 1755929

GUIDE-BELT

$

$

Not available

78

MTD 1755930

GUIDE-BELT

$

$

Not available

79

0

N/A

$

$

Not available

80

MTD 1754947

SUPPORT-SHAFT

$

$

Not available

81

0

N/A

$

$

Not available

82

MTD 1755928

BEARING-FLANGED

$

$

Not available

83

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

84

MTD 1755939

ASSM-JACKSHAFT

$

$

Not available

85

MTD 1739919

NUT-SPEED

$

$

Not available

86

0

N/A

$

$

Not available

87

Troy-Bilt 1726660

PULLEY-IDLER
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

88

0

N/A

$

$

Not available

89

MTD 1713783

SPACER-.62X.406X.56 ZP

$

$

Not available

90

MTD 1747873

CAP-WHEEL

$

$

Not available

91

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, only 2 left!

0

92

MTD 1748491

PIVOT

$

$

Not available

93

Troy-Bilt 1754948

SHROUD-FAN

$

$

Currently unavailable

94

0

N/A

$

$

Not available

95

Troy-Bilt 1755822

HOSE-FUEL 18"

$

$

Currently unavailable

96

MTD 1756626

CLAMP-HOSE

$

$

Not available

97

Troy-Bilt 1755088

ASSM-OIL RESERVOIR

$

$

Currently unavailable

98

Troy-Bilt 1705093

WASHER-1.0X.64X.029
(Superseded to 736-0302)

$

$

Not available

99

Troy-Bilt 1705092

WASHER-1.0X.64X.09
(Superseded to 736-0156)

$4.49

$

In Stock, Qty 12

0

100

0

N/A

$

$

Not available

101

Troy-Bilt 1701449

SHIM-1.25X1.01X.06

$

$

Currently unavailable

102

MTD 1756053

KIT-CONVERSION W/HYDRO

$

$

Not available

102

0

N/A

$

$

Not available

103

$

$

Not available

104

Troy-Bilt 1750736

SCR-SPECIAL

$29.99

$

Usually ships in 3-6 days

0

105

MTD 1186396

NUT-WHIZ LOCK {3016HR,3016HRS}

$

$

Not available

106

Troy-Bilt 1754675

ASSM-MAGNET {3016HR,3016HRS}
(Superseded to 1768971)

$173.99

$

Usually ships in 3-6 days

0
