ST 120 (3212 GR) - Troy-Bilt Tractor (SN: 0100101 - 0199999) ENGINE ASSEMBLY Parts Diagram

Tractor

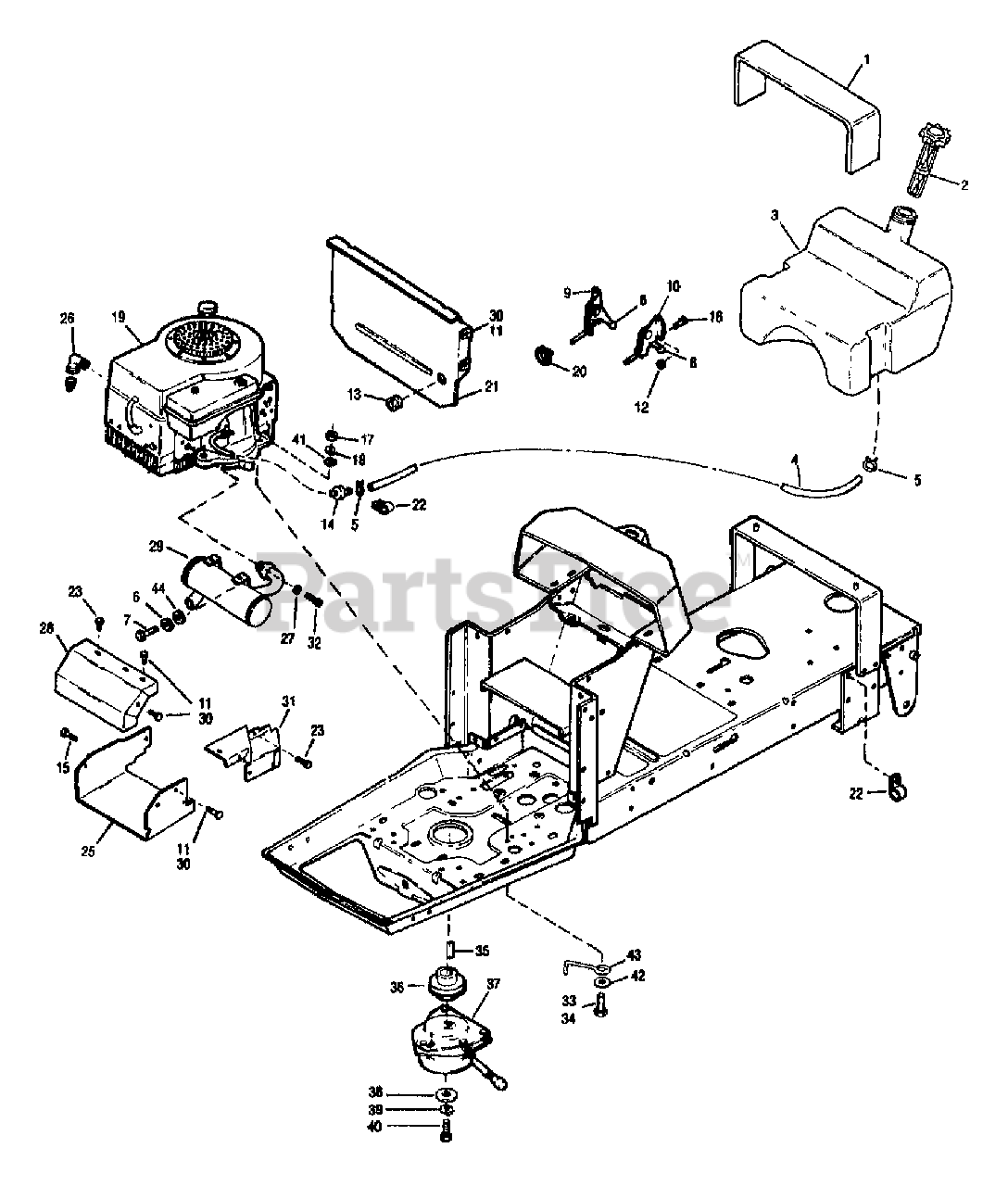

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1744390

PAD-FUEL TANK

$

$

Currently unavailable

2

Troy-Bilt 1756044

CAP-GAS
(Superseded to 751-0531B)

$83.99

$

In Stock, Qty 5

0

3

Troy-Bilt 1756460

TANK-FUEL

$

$

Currently unavailable

4

MTD 1752795

LINE-FUEL 52"

$

$

Not available

5

Troy-Bilt 1750687

CLAMP-HOSE
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 18

0

6

0

N/A

$

$

Not available

7

0

N/A

$

$

Not available

8

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 1755926

THROTTLE-CONTROL
(Superseded to 1755926P)

$

$

Not available

10

MTD 1755927

C-CONTROL

$

$

Not available

11

0

N/A

$

$

Not available

12

0

N/A

$

$

Not available

13

MTD 1748014

GROMMET-SPLIT

$

$

Not available

14

Troy-Bilt 1727491

FILTER-FUEL
(Superseded to BS-298090S)

$

$

Not available

15

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

16

$

$

Not available

17

0

N/A

$

$

Not available

18

0

N/A

$

$

Not available

19

0

ENGINE, BRIGGS & STRATTON 12HP, MODEL 281707

$

$

Not available

20

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 1752883GAR

SHIELD-HEAT (RED) {3212GR}

$

$

Currently unavailable

21

Troy-Bilt 1752883STB

SHIELD-HEAT (RED) {3312GR}

$

$

Currently unavailable

22

MTD 1747738

CLIP-J

$

$

Not available

23

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

25

MTD 1752909STB

SHIELD-HEAT

$

$

Not available

26

MTD 1752912

ELBOW-90 DEGREES

$

$

Not available

27

Troy-Bilt 1185140

WASHER-LOCK
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

28

MTD 1752911STB

SHIELD-HEAT

$

$

Not available

29

$

$

Currently unavailable

30

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

31

MTD 1752910STB

SHIELD-HEAT

$

$

Not available

32

Troy-Bilt 1747993

SCR-HXSKT 5/16-18X.75 BO
(Superseded to 710-1177)

$

$

Not available

33

0

N/A

$

$

Not available

34

0

N/A

$

$

Not available

35

MTD 1187474

KEY-.25 SQ X 1.25

$

$

Not available

36

MTD 1747148

SHEAVE

$

$

Not available

37

Troy-Bilt 1755341

CLUTCH-ELECTRIC
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

38

MTD 1744455

WASHER-SPEC 1.42X.468X.25 ZP

$

$

Not available

39

0

N/A

$

$

Not available

40

Troy-Bilt 1744454

SCR-HH 7/16-20X3 G5 ZP
(Superseded to 710-0510)

$11.99

$

In Stock, only 1 left!

0

41

0

N/A

$

$

Not available

42

0

N/A

$

$

Not available

43

MTD 1754787

CLUTCH-RETAINER

$

$

Not available

44

MTD 1755340

SPACER-.625X.344X.34

$

$

Not available
