ST-11B - Scag Three-Wheel Riding Mower, 11hp Briggs & Stratton (SN: 1001 - 9999) CUTTER DECK SM-61 Parts Diagram

Three-Wheel Riding Mower, 11hp Briggs & Stratton

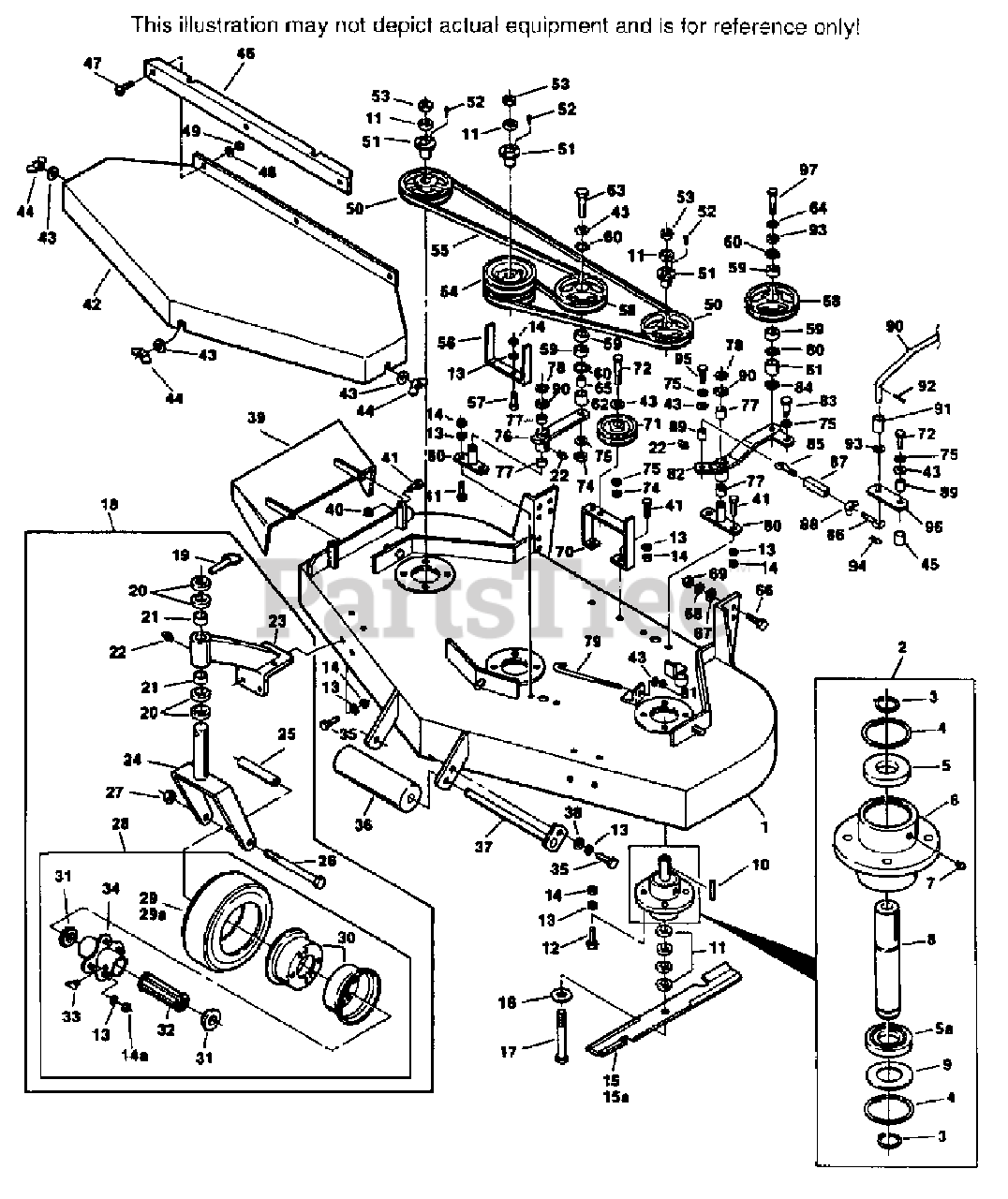

CUTTER DECK SM-61 Parts Diagram

  • Title

2

Scag 46020

CUTTER SPINDLE ASSY.(INCL. 3-9)
(Superseded to 461663)

$257.99

$

In Stock, Qty 20+

0

3

Scag 04050-04

RETAINING RING, 1"EXT.-INVERTED

$1.99

$

In Stock, Qty 5

0

4

Scag 04050-07

RETAINING RING, 2-7/16 INT.-BASIC

$3.99

$

Usually ships in 2-12 days

0

5

Scag 48101

BEARING, CUTTER SPINDLE
(Superseded to 48101-02)

$24.99

$

Usually ships in 2-12 days

0

6

Scag 41001

SPINDLE HOUSING

$

$

Not available

7

Scag 48114-02

GREASE FITTING, STR.5/16 SERR.

$1.99

$

In Stock, only 3 left!

0

8

Scag 43001-02

SPINDLE, CUTTER BLADE

$52.99

$

In Stock, only 3 left!

0

9

Scag 04041-02

WASHER, 1-15/16 X 2-13/32 X 16 GA.

$18.99

$

In Stock, only 2 left!

0

10

Scag 04063-08

KEY, 1/4 X 1/4 X 2

$1.49

$

In Stock, Qty 20+

0

11

Scag 43038

SPACER, CUTTER BLADE
(Superseded to 43592)

$4.49

$

In Stock, Qty 20+

0

12

HEX HEAD BOLT, 5/16-18 X 1-1/4

$

$

Not available

13

LOCKWASHER, SPRING, 5/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

14

HEX NUT, 5/16-18

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

16

Scag 04040-10

FLAT WASHER, 5/8W

$0.99

$

In Stock, Qty 11

0

17

Scag 04001-41

HEX HEAD BOLT, 5/8-11 X 9-1/2

$12.99

$

In Stock, Qty 20+

0

18

Scag 46079

CASTER ASSY, COMP.(INCL. 19-28)

$395.99

$

Usually ships in 2-12 days

0

19

Scag 04066-01

QUICK PIN

$8.49

$

In Stock, Qty 7

0

20

Scag 43037-01

SPACER, CASTER YOKE, 1/2 LONG

$2.49

$

In Stock, Qty 20+

0

21

Scag 48100-01

BRONZE BEARING

$2.99

$

In Stock, Qty 13

0

22

Scag 48114-01

GREASE FITTING, STR, 1/4-28
(Superseded to 48114-04)

$0.99

$

In Stock, Qty 20+

0

23

Scag 46082

SUPPORT ASSY.(INC. 21-22)

$148.99

$

In Stock, only 1 left!

0

24

Scag 45006

CASTER YOKE WLD.

$65.99

$

In Stock, only 1 left!

0

25

Scag 43022

SLEEVE, CASTER WHEEL BEARING

$6.99

$

In Stock, Qty 20+

0

26

Scag 04001-37

HEX HEAD BOLT, 1/2-13 X 5-1/2

$4.49

$

In Stock, Qty 13

0

28

Scag 48006-01

WHEEL ASSY.(INCL. 13-14, 29-34)
(Superseded to 48307)

$151.99

$

Usually ships in 2-12 days

0

29

Scag 48006-02

TIRE ONLY, CASTER WHEEL
(Superseded to 481774)

$87.99

$

Usually ships in 2-12 days

0

29A

Scag 48006-03

INNER TUBE ONLY, CASTER WHEEL
(Superseded to 481773)

$20.99

$

In Stock, only 2 left!

0

30

Scag 48006-04

RIM PAIR, CASTER WHEEL
(Superseded to 481772)

$70.99

$

In Stock, only 1 left!

0

31

Scag 48006-07

RETAINER, BEARING, CASTER WHEEL
(Superseded to 481770)

$4.99

$

In Stock, Qty 20+

0

32

Scag 48006-06

ROLLER BEARING, CASTER WHEEL
(Superseded to 481769)

$27.99

$

In Stock, only 2 left!

0

33

Scag 48114-03

GREASE FITTING, 45' 1/4-28

$10.99

$

In Stock, Qty 6

0

34

Scag 48006-05

HUB ASSY. W/BOLTS, CASTER WHEEL
(Superseded to 481768)

$64.99

$

Usually ships in 2-12 days

0

35

HEX HEAD BOLT, 5/16-18 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

39

Scag 45029

DISCHARGE CHUTE WLD.
(Superseded to 461292)

$68.99

$

In Stock, only 2 left!

0

40

HEX NUT, 5/16-18 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

41

HEX HEAD BOLT, 5/16-18 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

43

WASHER, 25/64 X 15/16 X 12 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

44

Scag 04022-04

WING NUT, 3/8-16
(Superseded to 04029-03)

$2.49

$

In Stock, Qty 20+

0

45

Scag 48098

SPINDLE SHIELD

$2.49

$

In Stock, only 3 left!

0

46

Scag 42045

BELT COVER SKIRT

$

$

Not available

47

SLOTTED TRUSS HD. MACHINE SCREW, 1/4-20 X 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

48

LOCKWASHER, SPRING, 1/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

49

HEX NUT, 1/4-20

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

50

Scag 48127

PULLEY(INCL. 51-52)
(Superseded to 482744)

$

$

Not available

51

Scag 48141

TAPER HUB

$29.99

$

In Stock, only 1 left!

0

52

HEX HEAD BOLT, 1/4-20 X 3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

53

HEX NUT, 5/8-11

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

55

Scag 48084

Belt, Blade Drive

$142.99

$

Usually ships in 2-12 days

0

57

HEX HD. BOLT, 5/16-18 X 1-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

58

Scag 48062

PULLEY IDLER

$85.99

$

Usually ships in 2-12 days

0

59

Scag 48102

BEARING

$11.99

$

Usually ships in 2-12 days

0

60

Scag 04050-06

RETAINING RING, 1-9/16 INT. BASIC

$2.49

$

Usually ships in 2-12 days

0

61

Scag 43045

SLEEVE

$

$

Not available

62

Scag 43040

SPACER

$

$

Not available

63

HEX HD. BOLT, 1/2-20 X 2-1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

64

LOCKWASHER, SPRING, 1/2

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

65

WASHER, 17/32 X 1-1/16 X 3/32

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

66

HEX HEAD BOLT, 7/16-14 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

67

WASHER, 15/32 X 59/64 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

68

LOCKWASHER, SPRING, 7/16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

69

HEX NUT, 7/16-14, ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

70

Scag 45012

IDLER PULLEY SUPPORT

$

$

Not available

71

Scag 48068

PULLEY, BELT GUIDE

$43.99

$

Usually ships in 2-12 days

0

72

HEX HD. BOLT, 3/8-16 X 1-3/4

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

73

WASHER, 13/32 X 13/16 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

74

HEX NUT, 3/8-16

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

75

LOCKWASHER, SPRING, 3/8

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

76

Scag 46154

IDLER ARM ASSY.(INCL. 22 & 77)

$

$

Not available

77

Scag 48100-05

BRONZE BEARING

$0.99

$

In Stock, only 3 left!

0

78

Scag 04050-02

RETAINING RING, 3/4 EXT.-"E"

$0.99

$

In Stock, Qty 7

0

79

Scag 43028

ROD, IDLER PULL, J

$4.99

$

In Stock, only 2 left!

0

80

Scag 45037

IDLER PIVOT WLD.

$30.99

$

Usually ships in 2-12 days

0

81

HEX NUT, 3/8-16 ELASTIC STOP

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

82

Scag 46155

IDLER ARM ASSY.(INCL. 22 & 77)

$193.99

$

Usually ships in 2-12 days

0

83

Scag 43054

SHOULDER BOLT

$

$

Not available

84

Scag 43041

SPACER, IDLER

$4.99

$

Usually ships in 2-12 days

0

85

Scag 04070-02

EYEBOLT, LH

$

$

Not available

86

Scag 04070-01

EYEBOLT, RH

$26.99

$

In Stock, only 1 left!

0

87

Scag 43025

TURNBUCKLE

$14.99

$

In Stock, only 1 left!

0

88

Scag 04022-02

WING NUT, 5/16-18

$7.99

$

Usually ships in 2-12 days

0

89

Scag 43042

SLEEVE, CAM CLUTCH

$6.49

$

In Stock, only 1 left!

0

90

Scag 43031

BLADE CLUTCH ROD

$45.99

$

Usually ships in 2-12 days

0

91

Scag 43043

SLEEVE, CLUTCH ROD

$12.99

$

Usually ships in 2-12 days

0

92

COTTER PIN, 3/32 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

93

WASHER, 33/64 X 1 X 16 GA.

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

94

Scag 04062-01

HAIR PIN, LARGE

$0.99

$

In Stock, Qty 20+

0

95

HEX HEAD BOLT, 3/8-16 X 1

Note: COMMON HARDWARE WHICH SHOULD BE PURCHASED LOCALLY. ALL BOLTS GRADE 5 PLATED, ALL OTHER FASTENERS ZINC PLATE.

$

$

Not available

96

Scag 42057

CAM LINK

$84.99

$

Usually ships in 2-12 days

0

97

Scag 04001-34

HEX HD. BOLT 1/2-20 X 2 SPECIAL

$

$

Currently unavailable
