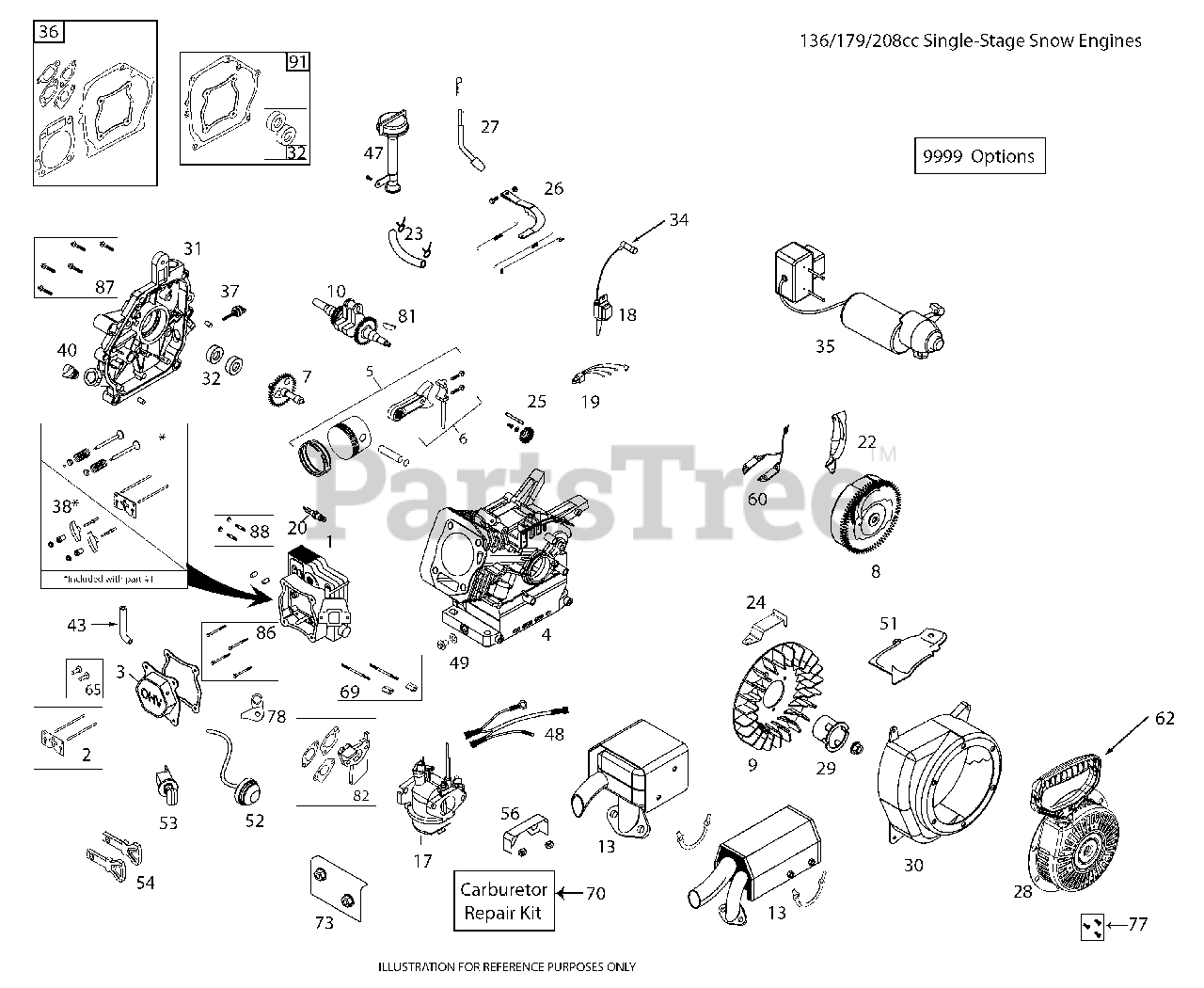

ST 1153 EP (961820019-01) - Jonsered Snow Thrower (2015-07) ENGINE Parts Diagram

Snow Thrower

ENGINE Parts Diagram

  • Title
1

Jonsered 587175701

CYLINDER HEAD ASSY.LCT.208

$109.99

$

Usually ships in 3-10 days

0

2

Jonsered 532420579

KIT.PUSH.ROD.SRV(SK208-1001)

$39.99

$

In Stock, only 1 left!

0

3

Jonsered 587176901

Valve Cover Assembly

$51.99

$

Usually ships in 3-10 days

0

4

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

5

Jonsered 587177101

(Superseded to 587175801)

$

$

Not available

6

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

7

Jonsered 587177201

(Superseded to 587176001)

$66.99

$

Usually ships in 3-10 days

0

8

Jonsered 532429236

FLYWHL.ASSY.MANUL.SK2081700

$66.99

$

Usually ships in 3-10 days

0

9

Jonsered 532420586

KIT.COOLNG.FAN.SERV(SK208-4000

$11.99

$

In Stock, only 2 left!

0

10

Jonsered 587176101

CRANKSHAFT KEYED LCT 179

$

$

Not available

13

Jonsered 532444277

MUFFLER.ASM.LCT.208CC.SS
(Superseded to 593989401)

$87.99

$

In Stock, only 1 left!

0

17

Jonsered 587821201

Carburetor, LCT

$136.99

$

In Stock, only 1 left!

0

18

Jonsered 532443934

208CC IGN COIL (STD)

$62.99

$

In Stock, only 1 left!

0

19

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

20

Jonsered 532424939

SPARK.PLUG(2083810)

$31.99

$

In Stock, only 2 left!

0

22

Jonsered 585772401

SHIELD.FLYWHEEL.ELEC.STRT.208C

$8.99

$

Usually ships in 3-10 days

0

23

Jonsered 532438014

KIT.FUEL.HOSE.208CC.SING/STAGE

$12.99

$

In Stock, only 1 left!

0

24

Jonsered 532429259

SPEED.CTRL.BRKT.(SKSN0150)

$13.99

$

Usually ships in 3-10 days

0

25

Jonsered 532429646

GOVENOR.GEARS ASM(SK2082900)

$39.99

$

Usually ships in 3-10 days

0

26

Jonsered 581768701

CARBURETTOR GOVERNOR LINK.ASM.

$9.49

$

Usually ships in 3-10 days

0

27

Jonsered 532420602

KIT.GOVERNOR.CRANK(SK208-3100)

$7.49

$

In Stock, only 3 left!

0

28

Jonsered 585771201

STARTER.RECOIL.S/S SNO.78".ROP

$60.99

$

Usually ships in 3-10 days

0

29

Jonsered 532436968

STRTER.CUP(NON-SLOT)SKSN0601.2

$34.99

$

Usually ships in 3-10 days

0

30

Jonsered 532429230

BLOW.HSG.ASSY.ELEC(SKSN-0612)

$21.99

$

Usually ships in 3-10 days

0

31

Jonsered 581007301

COVER CRANKCASE.LCT.SK2083605

$96.99

$

Usually ships in 3-10 days

0

32

Jonsered 532429599

SEAL KIT (2 PCS)

$17.99

$

Usually ships in 3-10 days

0

34

Jonsered 532436966

SPARK.PLUG.BOOT.SNW,SKSN4691.1

$17.99

$

In Stock, only 1 left!

0

35

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

36

Jonsered 587176701

GASKET KIT ENGINE LCT 208

$31.99

$

Usually ships in 3-10 days

0

37

Jonsered 532420961

DIPSTICK SMALL

$12.99

$

In Stock, only 1 left!

0

38

Jonsered 532429691

ROCKER ARM KIT

$68.99

$

Usually ships in 3-10 days

0

40

Jonsered 532429598

NON REMOVABLE PLUG

$13.99

$

Usually ships in 3-10 days

0

43

Jonsered 580353401

TUBE.BREATHER.LCT.208

$6.49

$

Usually ships in 3-10 days

0

47

Jonsered 587178001

TUBE HIGH OIL FILL LCT 179

$9.99

$

Usually ships in 3-10 days

0

48

Jonsered 532444276

HARNESS WIRE/WCDI IGN.SKSNO145

$43.99

$

Usually ships in 3-10 days

0

49

Jonsered 532435495

KIT.OIL.DRAIN.PLUG(SK2089911

$9.99

$

In Stock, only 3 left!

0

51

Jonsered 532437119

(Superseded to 583516301)

$37.99

$

Usually ships in 3-10 days

0

52

Jonsered 532437123

BULB.FUEL.PRMR.W/HOSE(SKSNO306
(Superseded to 532424949)

$13.99

$

Usually ships in 3-10 days

0

53

Jonsered 532424954

SWITH.KEY.ASSEM.SNOW.SINGLE.ST

$28.99

$

In Stock, Qty 6

0

54

Jonsered 532443059

KEY SET(2 KEYS) SKSN0407.1

$13.99

$

In Stock, only 1 left!

0

56

Jonsered 532429260

SHIELD.VAPOR.SNOW

$17.99

$

In Stock, only 1 left!

0

60

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

62

Jonsered 532424968

SNOW.STARTER.CHIP(SKSN-0603)
(Superseded to 532443899)

$17.99

$

Usually ships in 3-10 days

0

65

Jonsered 581372801

TAPPET.KIT.LCT.208CC

$22.99

$

Usually ships in 3-10 days

0

69

Jonsered 532424951

CARB.STUDS & COUPLING KIT.SNOW

$21.99

$

Usually ships in 3-10 days

0

70

Jonsered 580353601

Carburetor Repair Kit, LCT SK9900

$120.99

$

Usually ships in 3-10 days

0

73

Jonsered TBD

No Description Available

Note: NOT REQUIRED FOR THIS ENGINE

$

$

Not available

77

Jonsered 532432688

Recoil Bolt Kit, LCT

$4.99

$

Usually ships in 3-10 days

0

78

$7.99

$

Usually ships in 3-10 days

0

81

Jonsered 585297201

KEYS.FLYWHEEL.208/414CC.5PACK

$26.99

$

In Stock, only 1 left!

0

82

Jonsered 585020503

Carburetor Spacer, 208cc Lct

$8.99

$

In Stock, only 1 left!

0

86

Jonsered 586327301

KIT.BOLT.CYLINDER.HEAD.(4PC)

$14.99

$

Usually ships in 3-10 days

0

87

Jonsered 586326901

KIT.BOLT.CRANKCASE.COVER.6PC

$10.99

$

In Stock, only 4 left!

0

88

Jonsered 586326801

STUD.MUFFLER.KIT.LCT

$10.99

$

In Stock, only 4 left!

0

91

Jonsered 587525701

Crankcase Cover Gasket

$24.99

$

Usually ships in 3-10 days

0

9999

Jonsered 586326201

High Altitude Jet for Beyond 6,000 Feet

$13.99

$

Usually ships in 3-10 days

0
