ST 1130 S (1695322) - Frontier 30" Snow Thrower (2007) Auger Housing and Chute Group - 28", 30" & 32" Parts Diagram

30" Snow Thrower

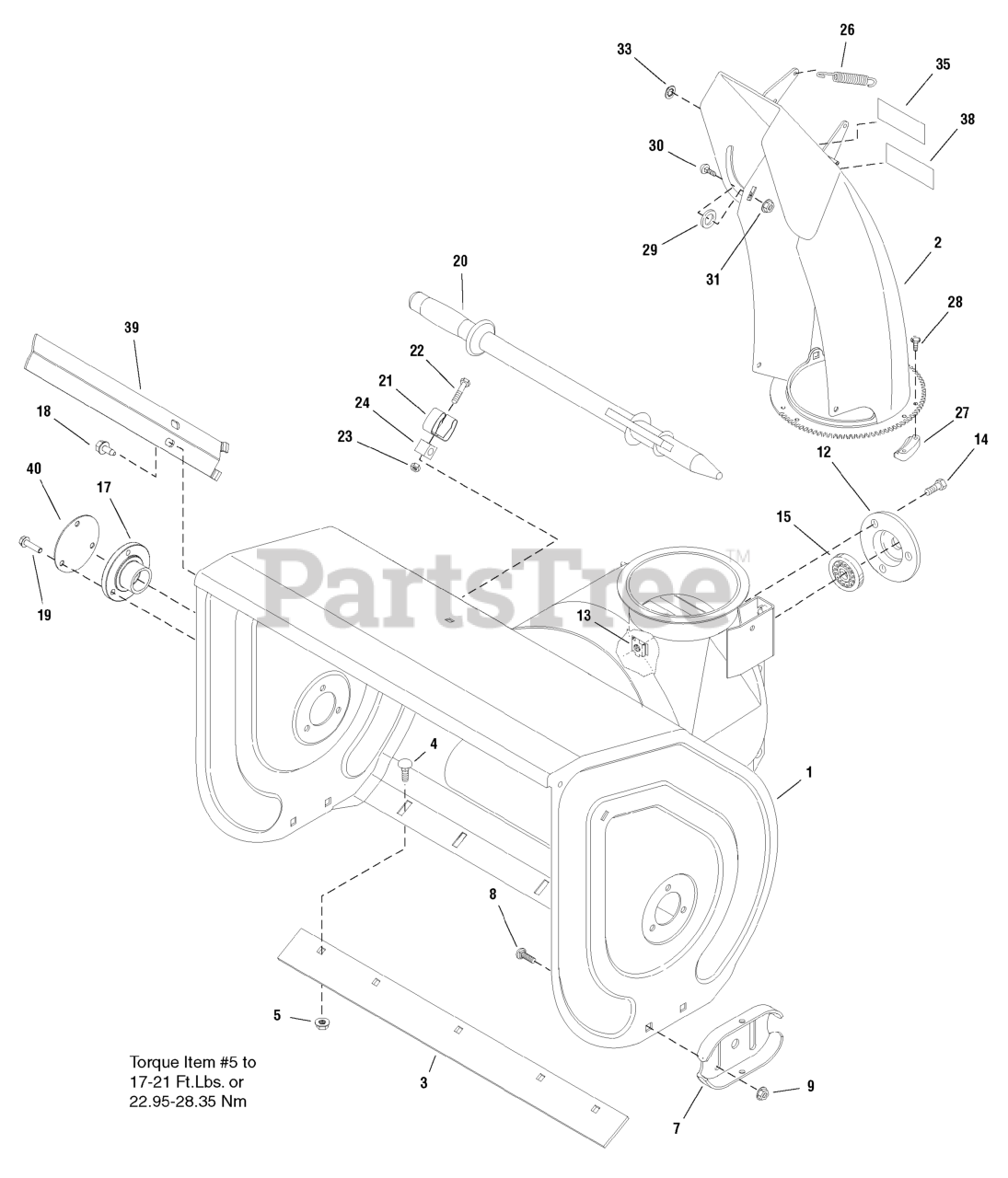

Auger Housing and Chute Group - 28", 30" & 32" Parts Diagram

  • Title

1

Murray MT1734565FSM

AUGER HOUSING ASSEMBLY, 28" Auger

Note: (Used on Model ST9528 & ST1028S)

$

$

Currently unavailable

1

Murray MT1734742FSM

AUGER HOUSING ASSEMBLY, 30" Auger

Note: (Used on Model ST1130S)

$

$

Currently unavailable

1

Murray MT1734566FSM

AUGER HOUSING ASSEMBLY, 32" Auger

Note: (Used on Model ST1332S)

$

$

Currently unavailable

2

Murray MT1732744FSM

CHUTE & DEFLECTOR ASSEMBLY

$

$

Currently unavailable

3

Murray MT1709947ASM

BLADE, Scraper, 28"

Note: (Used on Model ST9528 & ST1028S)

$

$

Currently unavailable

3

Murray MT1732385ASM

BLADE, Scraper, 30"

Note: (Used on Model ST1130S)

$

$

Currently unavailable

3

Murray MT1709948ASM

BLADE, Scraper, 32"

Note: (Used on Model ST1332S)

$

$

Currently unavailable

4

Murray MT1960699SM

CARRIAGE BOLT, 5/16-18 x 5/8 G5

$

$

Currently unavailable

5

Murray MT1935048SM

NUT, Hex Flange Two-Way Lock, 5/16-18

$

$

Currently unavailable

7

Murray MT1727854ASM

SKID, Shoe Reversible

$

$

Currently unavailable

8

Murray MT1960711SM

CARRIAGE BOLT, 3/8-16 x 3/4 G5

$

$

Currently unavailable

9

Murray MT1960687SM

NUT, Hex Flange ESNA, 3/8-16

$

$

Currently unavailable

12

Murray MT1665982ASM

BEARING, Retainer

$

$

Currently unavailable

13

Murray MT1930659SM

RETAINER, Nut, 5/16-18

$

$

Currently unavailable

14

Murray MT1960738SM

SCREW, Hex Whiz Lock Flange, 5/16-18 x 3/4

$

$

Currently unavailable

15

Murray MT2108202SM

BEARING, Greased

$

$

Currently unavailable

17

Murray MT1733103SM

BUSHING, Auger Flange

$

$

Currently unavailable

18

Murray MT1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4

Note: (Used on Models ST1028S, ST1130S & ST1332S)

$

$

Currently unavailable

19

Murray MT1931202SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4

$

$

Currently unavailable

20

Murray MT1733209SM

STICK, Cleanout w/Brush

$

$

Currently unavailable

21

Murray MT1501672MA

CLIP, Retainer
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 18

0

22

Murray MT2860604SM

SCREW, Hex Washer Head Slot

$

$

Currently unavailable

23

Murray MT1933896SM

NUT, Hex Lock 10-24 w/Nylon Insert

$

$

Currently unavailable

24

Murray MT578063MA

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 4 left!

0

26

Murray MT1733455SM

SPRING, Extension

$

$

Currently unavailable

27

Murray MT7011938SM

RETAINER, SPOUT

$

$

Currently unavailable

28

Murray MT1960001SM

CAPSCREW, Hex Washer Head Taptite, #10C x 5/8 GR5 BZ

$

$

Currently unavailable

29

Murray MT2860210SM

WASHER, Nylon, .388 x 1.12 x .030

$

$

Currently unavailable

30

Murray MT1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5

$

$

Currently unavailable

31

Murray MT1960686SM

NUT, Hex Flange ESNA, 5/16-18

$

$

Currently unavailable

33

Murray MT1932718SM

NUT, Push for .312 DIA Stud Capped .625OD

$

$

Currently unavailable

35

Murray MT1734738SM

DECAL, Hinge Upper

$

$

Currently unavailable

38

Murray MT1734739SM

DECAL, Hinge Lower

$

$

Currently unavailable

39

Murray MT1733102ASM

CUTTER, Drift

Note: (Used on Models ST1028S, ST1130S & ST1332S)

$

$

Currently unavailable

40

Murray MT1734932ASM

COVER, Bushing

$

$

Currently unavailable
