ST 1129 (629110x16B) - Frontier 29" Snow Thrower (2004) Handle Parts Diagram

29" Snow Thrower

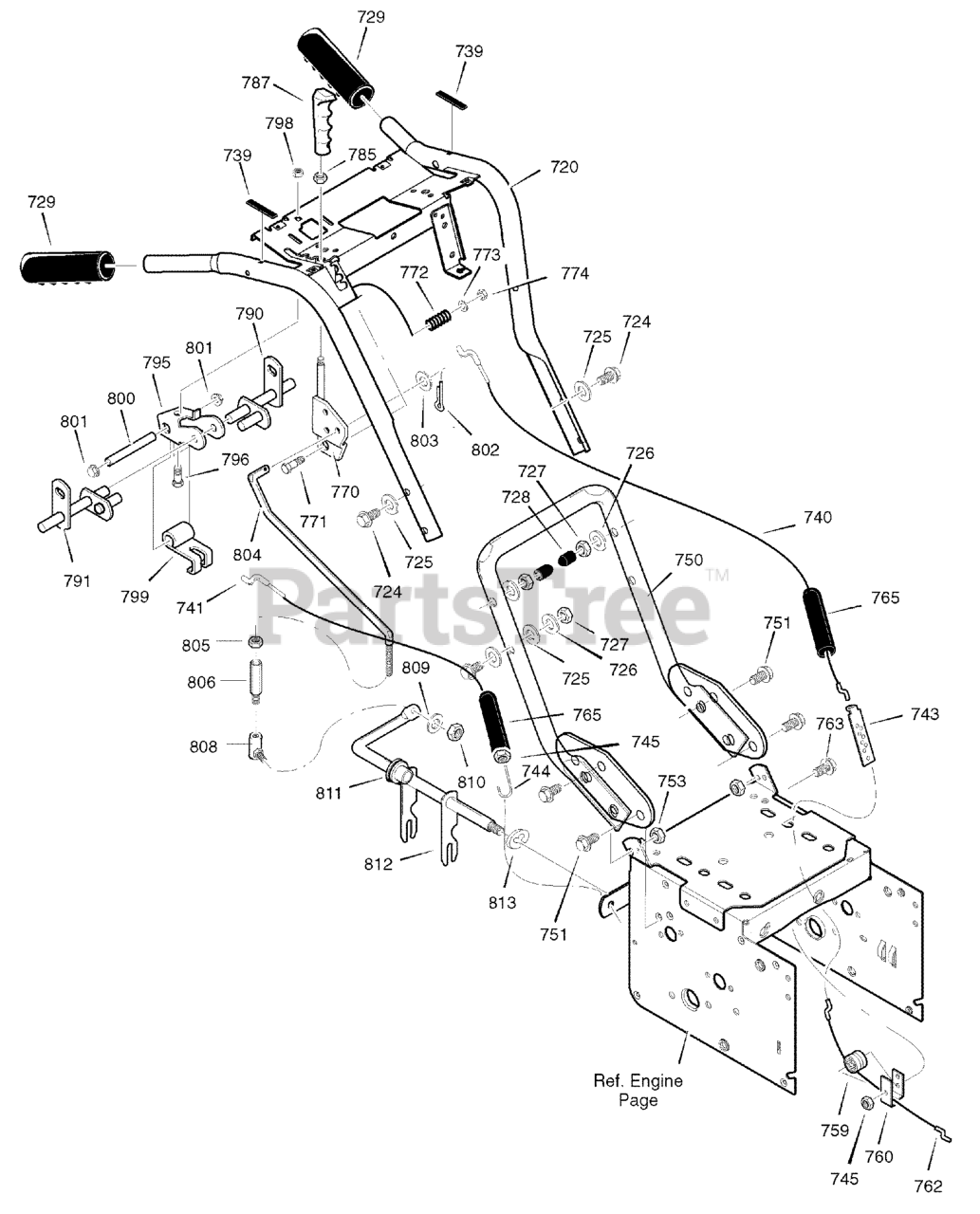

Handle Parts Diagram

  • Title
720

Murray MT1501378E701

ASSY, HANDLE

$

$

Currently unavailable

724

$

$

Currently unavailable

725

Murray MT71072

WASHER, FLAT

$

$

Currently unavailable

726

$

$

Currently unavailable

727

$

$

Currently unavailable

728

Murray MT7289

STOP, PLASTIC

$

$

Currently unavailable

729

Murray MT337399

GRIP, HANDLE

$

$

Currently unavailable

739

Murray MT4049

BUMPER

$

$

Currently unavailable

740

Murray MT1501451

CABLE, AUGER CLUTCH

$

$

Currently unavailable

741

Murray MT1501452

CABLE, DRIVE

$

$

Currently unavailable

743

Murray MT313441

BRKT, CABLE ADJ

$

$

Currently unavailable

744

Murray MT1673

SPRING, CLUTCH

$

$

Currently unavailable

745

Murray MT15X145

NUT, HEX

$

$

Currently unavailable

750

Murray MT1501449E701

HANDLE, LOWER

$

$

Currently unavailable

751

$

$

Currently unavailable

753

Murray MT15X144MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

759

Murray MT579860

SPOOL, CABLE

$

$

Currently unavailable

760

Murray MT1501059 YZ

BRKT, SPOOL

$

$

Currently unavailable

762

Murray MT1501122

CABLE, LOWER DRIVE

$

$

Currently unavailable

763

Murray MT001798

BOLT, HEX 1/4-20 x 1.5

$

$

Currently unavailable

765

Murray MT308146

BOOT, CABLE

$

$

Currently unavailable

770

Murray MT1501570 YZ

BRACKET, SHIFT

$

$

Currently unavailable

771

$

$

Currently unavailable

772

$

$

Currently unavailable

773

Murray MT71072

WASHER, FLAT

$

$

Currently unavailable

774

Murray MT71046

NUT, HEX

$

$

Currently unavailable

785

Murray MT71045

NUT, HEX

$

$

Currently unavailable

787

Murray MT306689

KNOB, SHIFT

$

$

Currently unavailable

790

Murray MT578926

ROD, ASSY LH

$

$

Currently unavailable

791

Murray MT578924

ROD, ASSY RH

$

$

Currently unavailable

795

Murray MT579002

BRACKET, CAM

$

$

Currently unavailable

796

$

$

Currently unavailable

798

Murray MT71038

NUT, NYLOCK

$

$

Currently unavailable

799

Murray MT8417

CAM LOCK

$

$

Currently unavailable

800

Murray MT584673

PIN, SPRING PIVOT

$

$

Currently unavailable

801

Murray MT73664

NUT, PUSH ON

$

$

Currently unavailable

802

Murray MT71081

PIN, COTTER

$

$

Currently unavailable

803

Murray MT71071

FLATWASHER

$

$

Currently unavailable

804

Murray MT1501728

ROD, SPEED CONTROL

$

$

Currently unavailable

805

Murray MT71042

NUT, 5/16-18

$

$

Currently unavailable

806

Murray MT6352

ADAPTER, ROD

$

$

Currently unavailable

808

Murray MT50782

BALLJOINT, STEEL

$

$

Currently unavailable

809

$

$

Currently unavailable

810

Murray MT71042

NUT, 5/16-18

$

$

Currently unavailable

811

Murray MT579944

BEARING, FL

$

$

Currently unavailable

812

$

$

Currently unavailable

813

Murray MT11X30

RETAINER, RING

$

$

Currently unavailable
