ST 1129 (629110x16B) - Frontier 29" Snow Thrower (2004) Auger Housing Parts Diagram

29" Snow Thrower

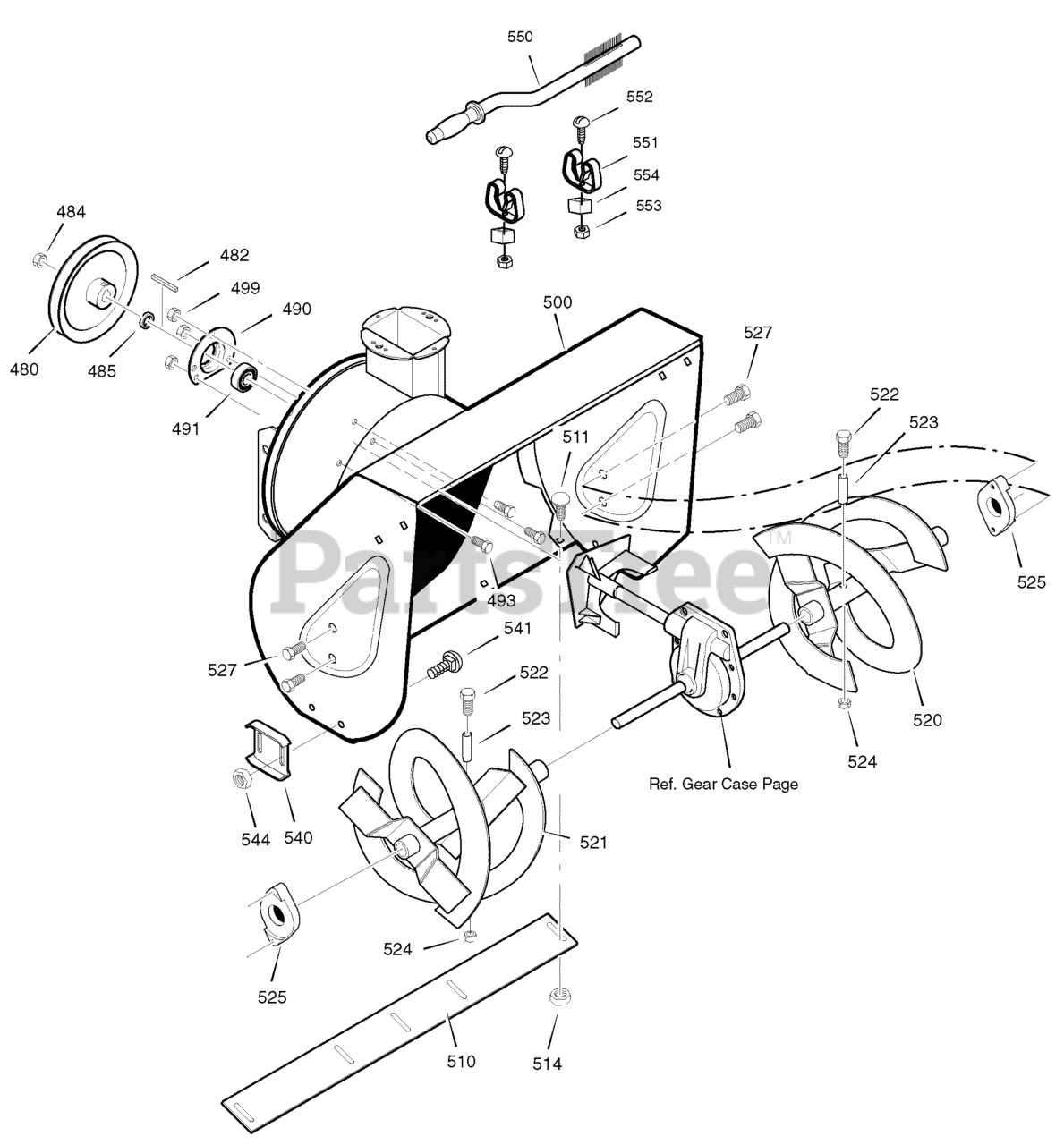

Auger Housing Parts Diagram

  • Title
480

Murray MT583146

PULLEY, 4L 8.40 OD

$

$

Currently unavailable

482

Murray MT2001022

KEY, SQUARE 3/16 X 3/4

$

$

Currently unavailable

484

Murray MT15X112

NUT, 1/2-20

$

$

Currently unavailable

485

Murray MT1501158

SPACER, FRICTION PULLEY

$

$

Currently unavailable

490

Murray MT582957 YZ

RETAINER, BALL BRNG

$

$

Currently unavailable

491

Murray MT1501389

BEARING, BALL

$

$

Currently unavailable

493

Murray MT001X92

BOLT, HEX 5/16-18X .50

$

$

Currently unavailable

499

Murray MT710026

NUT, 5/16-18 HEXWDFLLK

$

$

Currently unavailable

500

Murray MT1501720E511

HOUSING, ASSY

$

$

Currently unavailable

510

Murray MT583043E701

BLADE, SCRAPER

$

$

Currently unavailable

511

Murray MT340720

BOLT, 5/16-18X.75

$

$

Currently unavailable

514

Murray MT710026

NUT, 5/16-18

$

$

Currently unavailable

520

Murray MT760597E701

AUGER, ASSY, LH

$

$

Currently unavailable

521

Murray MT760598E701

AUGER, ASSY, RH

$

$

Currently unavailable

522

Murray MT9524

SCREW, 1/4-20 X 1.75

$

$

Currently unavailable

523

Murray MT3943

SPACER, SLEEVE

$

$

Currently unavailable

524

Murray MT73826

NUT, 1/4-20

$

$

Currently unavailable

525

Murray MT53757

BEARING, FLANGE

$

$

Currently unavailable

527

Murray MT25X021

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

540

Murray MT1502092E701

SKID, HEIGHT ADJUST

$

$

Currently unavailable

541

Murray MT340720

BOLT, 5/16-18 X .75

$

$

Currently unavailable

544

Murray MT710026

NUT, 5/16-18

$

$

Currently unavailable

550

Murray MT1501576

BRUSH, CLEANOUT

$

$

Currently unavailable

551

Murray MT1501672

CLIP, RETAINER

$

$

Currently unavailable

552

$

$

Currently unavailable

553

$

$

Currently unavailable

554

$

$

Currently unavailable

--

Murray MT1501216

KIT, SHEAR BOLT

$

$

Currently unavailable
