ST-1033 E - Echo Snow Thrower Head Light Assembly, Wheels, Axle Parts Diagram

Snow Thrower

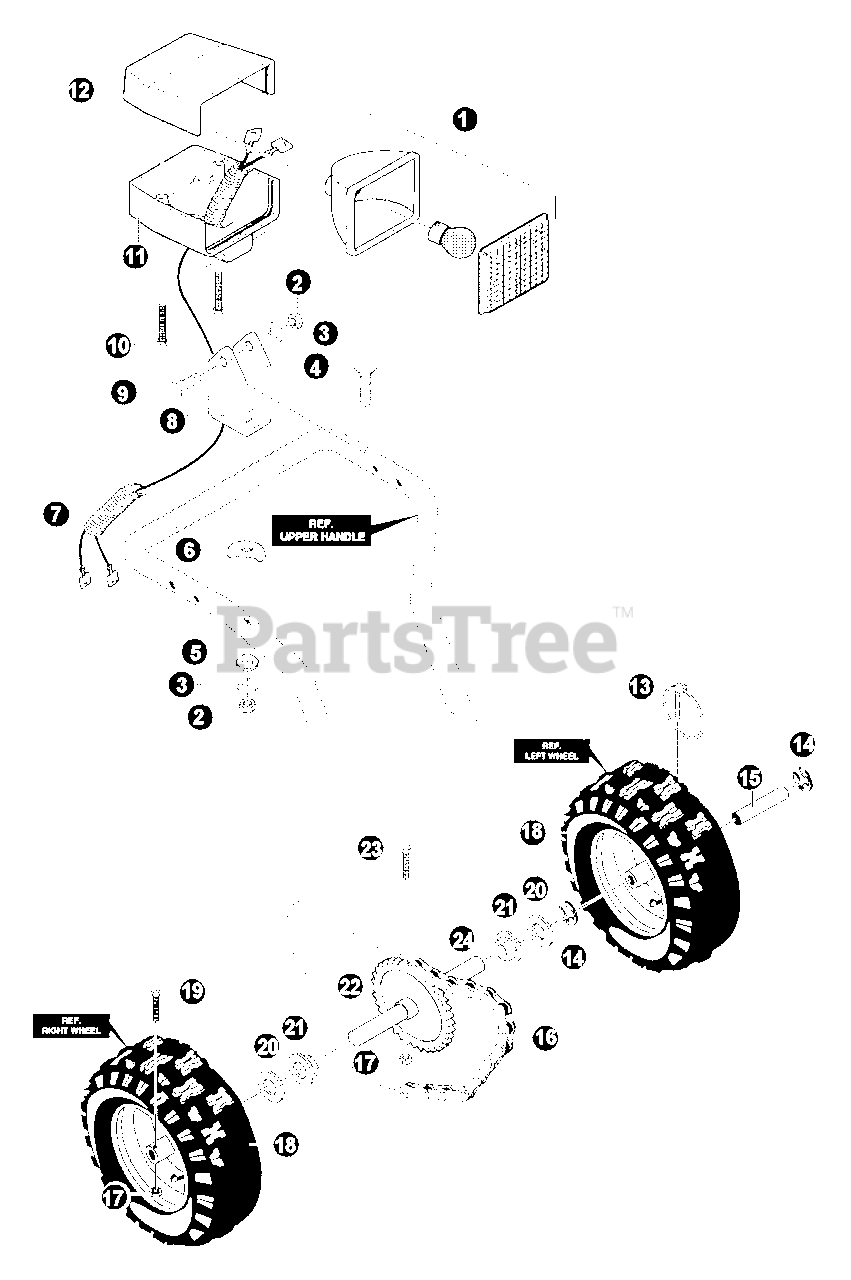

Head Light Assembly, Wheels, Axle Parts Diagram

  • Title

Echo 6400001

HEAD LIGHT KIT 8/10 H.P.

Note: Includes ITEMS 1-12

$

$

Currently unavailable

1

Echo 14581575

HOUSING, HEAD LIGHT
(Superseded to Discontinued)

$

$

Not available

2

Echo 14120376

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

3

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

4

Echo 14580846

BOLT, 5/16-18X2.25
(Superseded to Discontinued)

$

$

Not available

5

Echo 14120394

WASHER
(Superseded to Discontinued)

$

$

Not available

6

Echo 14580527

WASHER - WAVE,
(Superseded to Discontinued)

$

$

Not available

7

Echo 14307767

WIRING, HARNESS ASSY
(Superseded to Discontinued)

$

$

Not available

8

Echo 14004030

BRACKET, HEADLIGHT
(Superseded to Discontinued)

$

$

Not available

9

Echo 14000235

SCREW - 5/16-18 X 2"
(Superseded to Discontinued)

$

$

Not available

10

Echo 14307781

SCREW - 8 X 1-3/4"
(Superseded to Discontinued)

$

$

Not available

11

Echo 14580530

CASE, HEADLIGHT - LOWER
(Superseded to Discontinued)

$

$

Not available

12

Echo 14307395

HOUSING, HEADLIGHT UPPER
(Superseded to Discontinued)

$

$

Not available

13

Echo 14073842

PIN, KLIK

$6.99

$

Usually ships in 2-4 days

0

14

Echo 14000239

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

15

Echo 14585591

BUSHING, WHEEL 4" LG

$1.99

$

Usually ships in 2-4 days

0

16

Echo 14583013

CHAIN, ROLLER 420X41
(Superseded to Discontinued)

$

$

Not available

17

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

18

Echo 14584633

WHEEL ASSY
(Superseded to Discontinued)

Note: S/N 001001 - 001066

$

$

Not available

18

Echo 14584633

WHEEL ASSY
(Superseded to Discontinued)

Note: S/N 001143 - 001219

$

$

Not available

19

Echo 14577015

SCREW - 1/4-20 X 1.75"

$0.99

$

Usually ships in 2-4 days

0

20

Echo 14073840

WASHER
(Superseded to Discontinued)

$

$

Not available

21

Echo 14581730

BEARING, FLANGE

$4.99

$

Usually ships in 2-4 days

0

22

Echo 14583007

SPROCKET, HUB

$7.49

$

Usually ships in 2-4 days

0

23

Echo 14073839

SCREW - 1/4-20 X 2.25"
(Superseded to Discontinued)

$

$

Not available

24

Echo 14583017

SHAFT, AXLE 6.15

$27.99

$

Usually ships in 2-4 days

0
