ST 1030 - Husqvarna 30" Snow Blower (1996-12) Pulley And Gear Assembly Parts Diagram

30" Snow Blower

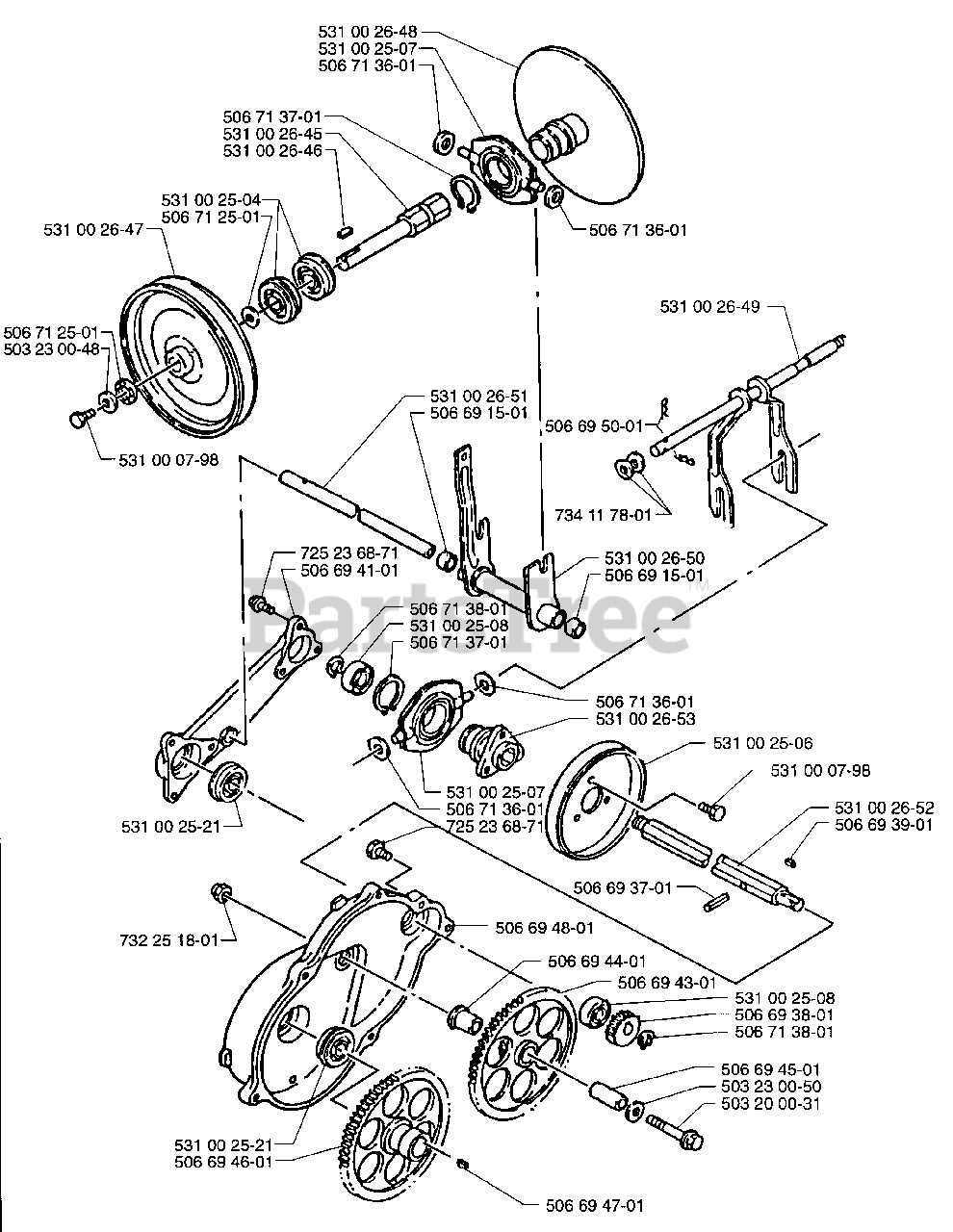

Pulley And Gear Assembly Parts Diagram

  • Title

531002648

Husqvarna 531002648

FRICTION DISC - W ASSY

$

$

Not available

531002507

Husqvarna 531002507

RETAINER

$

$

Not available

506713601

Husqvarna 506713601

WASHER - 30X11X1.6

$

$

Not available

506713701

Husqvarna 506713701

RETAINING RING - M35 "C"

$

$

Not available

531002645

Husqvarna 531002645

SHAFT DRIVE - DISC

$

$

Not available

531002646

Husqvarna 531002646

KEY SQ

$

$

Not available

531002504

Husqvarna 531002504

BEARING - 6203-ZZNR-C3

$

$

Not available

506712501

Husqvarna 506712501

WASHER - WAVE SPRING, M18

$

$

Not available

531002647

Husqvarna 531002647

PULLEY - TRACTION

$

$

Not available

506712501

Husqvarna 506712501

WASHER - WAVE SPRING, M18

$

$

Not available

503230048

Husqvarna 503230048

WASHER NLA

$

$

Not available

531000796

Husqvarna 531000796

BOLT FLANGE - 5/16-18X2"

$

$

Not available

506713601

Husqvarna 506713601

WASHER - 30X11X1.6

$

$

Not available

531002651

Husqvarna 531002651

SHAFT - TRACTION ENGAGE
(Superseded to 506694201)

$

$

Not available

506691501

Husqvarna 506691501

BUSHING

$

$

Not available

725236871

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, only 4 left!

0

506694101

Husqvarna 506694101

HOUSING - SUPP AXLE/HEX SHAFT

$

$

Not available

506713801

Husqvarna 506713801

RETAINING RING - M15 - "C"

$

$

Not available

506691501

Husqvarna 506691501

BUSHING

$

$

Not available

531002650

Husqvarna 531002650

TRACTION YOKE ASSY
(Superseded to 506693001)

$

$

Not available

734117801

Husqvarna 734117801

WASHER - M12
(Superseded to 532052160)

$

$

Not available

506695001

Husqvarna 506695001

CLIP HITCH PIN M12

$

$

Not available

531002649

Husqvarna 531002649

SHIFTER YOKE ASSY

$

$

Not available

531002508

Husqvarna 531002508

BEARING

$

$

Not available

506713701

Husqvarna 506713701

RETAINING RING - M35 "C"

$

$

Not available

506713601

Husqvarna 506713601

WASHER - 30X11X1.6

$

$

Not available

531002653

Husqvarna 531002653

HUB - FRICTION WHEEL

$

$

Not available

531002506

Husqvarna 531002506

WHEEL - FRICTION

$

$

Not available

531000798

Husqvarna 531000798

BOLT FLANGE - 1/4-20X0.75"

$

$

Not available

531002507

Husqvarna 531002507

RETAINER

$

$

Not available

506713601

Husqvarna 506713601

WASHER - 30X11X1.6

$

$

Not available

725236871

Husqvarna 725236871

BOLT FLANGE - M6X20

$4.99

$

In Stock, only 4 left!

0

506693701

Husqvarna 506693701

ROLL PIN - M3X22

$

$

Not available

506694801

Husqvarna 506694801

HOUSING - TRACTION GEAR CASE

$

$

Not available

506694401

Husqvarna 506694401

BUSHING FLANGE - PLASTIC

$

$

Not available

506694301

Husqvarna 506694301

IDLER GEAR CLUSTER - SUB ASSY

$

$

Not available

531002508

Husqvarna 531002508

BEARING

$

$

Not available

506693801

Husqvarna 506693801

GEAR - INPUT, HEX SHAFT

$

$

Not available

506713801

Husqvarna 506713801

RETAINING RING - M15 - "C"

$

$

Not available

531002521

Husqvarna 531002521

BEARING - 6004-DDU-C3
(Superseded to 738210404)

$103.99

$

In Stock, Qty 20+

0

732251801

Husqvarna 732251801

NUT LOCK - M8, NYLOCK
(Superseded to 732211801)

$4.99

$

In Stock, Qty 12

0

531002521

Husqvarna 531002521

BEARING - 6004-DDU-C3
(Superseded to 738210404)

$103.99

$

In Stock, Qty 20+

0

506694601

Husqvarna 506694601

GEAR - OUTPUT, AXLE W-ASSY

$

$

Not available

506694701

Husqvarna 506694701

KEY WOODRUFF, AXLE - M5X19

$

$

Not available

506694501

Husqvarna 506694501

Shaft, Idler Gear Cluster

$3.99

$

Usually ships in 3-10 days

0

503230050

Husqvarna 503230050

WASHER

$

$

Not available

503200031

Husqvarna 503200031

BOLT FLANGE - M8X50
(Superseded to 725246161)

$

$

Not available

531002652

Husqvarna 531002652

SHAFT -HEX
(Superseded to 506693601)

$

$

Not available

506693901

Husqvarna 506693901

KEY SQ

$

$

Not available
