ST 1028 S (1695321) - Frontier 28" Snow Thrower (2007) Handles and Controls Group Parts Diagram

28" Snow Thrower

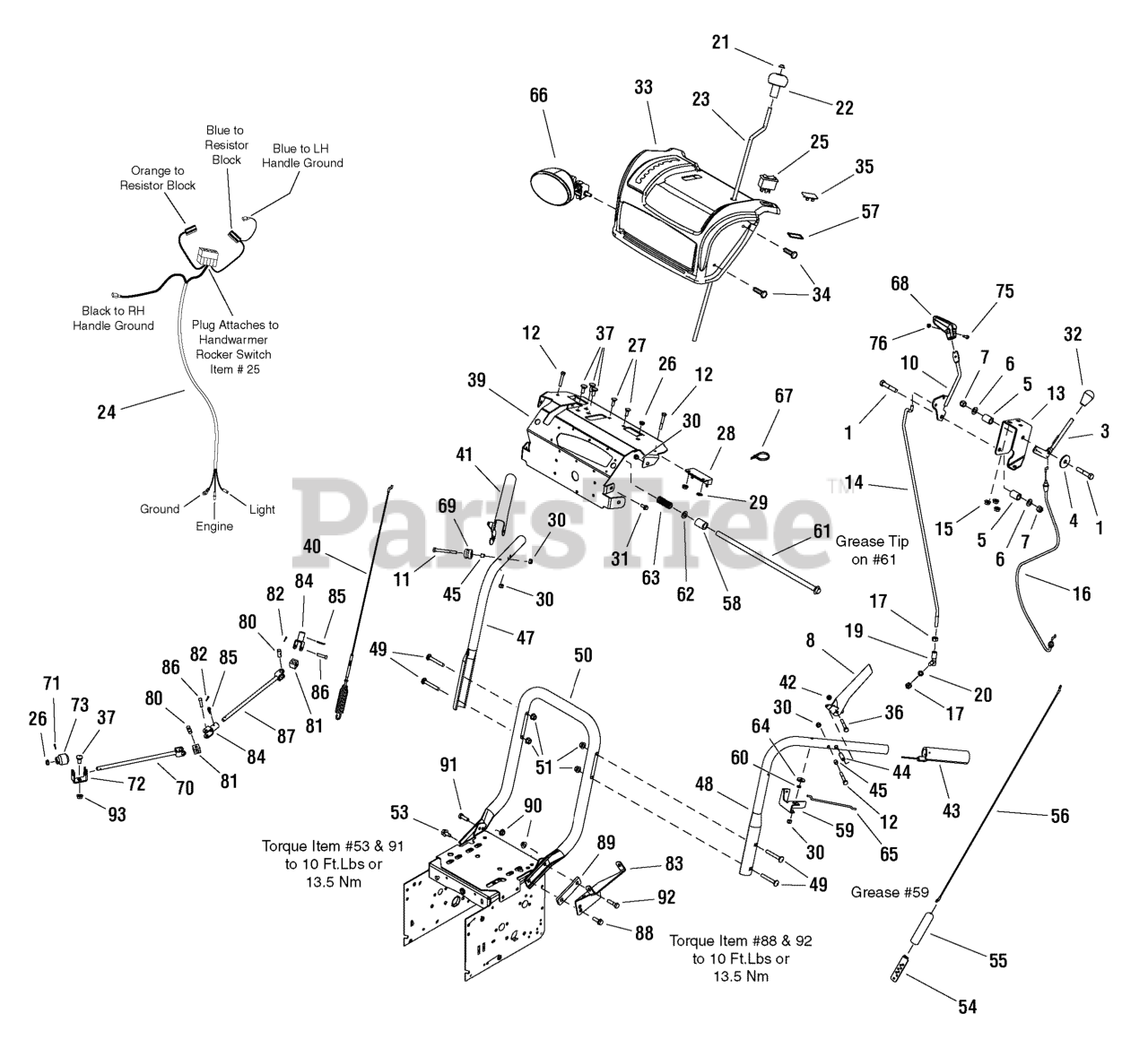

Handles and Controls Group Parts Diagram

  • Title

1

Murray MT1923701SM

CAPSCREW, Hex Head 3/8-16 x 2 G5

$

$

Currently unavailable

3

Murray MT1732427SM

ROD, Remote Chute

$

$

Currently unavailable

4

Murray MT1924356SM

WASHER, 3/8

$

$

Currently unavailable

5

Murray MT50786MA

SPRING, Compression .509 DIA x 3/4
(Superseded to 50786MA)

$5.49

$

Usually ships in 2-12 days

0

6

Murray MT1918266SM

WASHER, 3/8

$

$

Currently unavailable

7

Murray MT1919439SM

NUT, Hex Lock ESNA Light 3/8-16 NC3B

$

$

Currently unavailable

8

Murray MT1722667SM

HANDLE, Clutch L.H.

$

$

Currently unavailable

10

Murray MT1733205SM

ROD & PLATE ASSEMBLY, Speed Control

$

$

Currently unavailable

11

Murray MT1923282SM

CAPSCREW, Hex Head 1/4-20 x 2-1/2 G5

$

$

Currently unavailable

12

Murray MT1921962SM

CAPSCREW, Hex Head 1/4-20 x 1-3/4 G5

$

$

Currently unavailable

13

Murray MT1733045ASM

BRACKET, Speed & Deflector Control 12GA

$

$

Currently unavailable

14

Murray MT1734354SM

ROD, Link Speed Control

$

$

Currently unavailable

15

Murray MT1931277SM

NUT, Hex Flange 5/16-18, Whiz Lock Small

$

$

Currently unavailable

16

Murray MT1732971SM

CABLE, Deflector Control

$

$

Currently unavailable

17

Murray MT2820263SM

NUT, Hex 5/16-24

$

$

Currently unavailable

19

Murray MT50782MA

BALLJOINT, Steel
(Superseded to 50782MA)

$21.99

$

In Stock, Qty 7

0

20

Murray MT1917356SM

LOCKWASHER, Spring 5/16

$

$

Currently unavailable

21

Murray MT1960093SM

NUT, Push Pal 5/16 Diameter Stud Capped

$

$

Currently unavailable

22

Murray MT1714084SM

KNOB, Spinner

$

$

Currently unavailable

23

Murray MT1715658SM

ROD, Chute Control

$

$

Currently unavailable

24

Murray MT1732738SM

HARNESS, Wiring Handwarmers

Note: (Used on ST1130S & ST1332S)

$

$

Currently unavailable

25

Murray MT1732563SM

SWITCH, Rocker Hand Warmer

Note: (Used on ST1130S & ST1332S)

$

$

Currently unavailable

26

Murray MT1667588SM

BUSHING

$

$

Currently unavailable

27

Murray MT1931317SM

CARRIAGE BOLT, 1/4-20 x 3/4 G5

Note: (Used on ST1130S & ST1332S)

$

$

Currently unavailable

28

Murray MT1724037SM

RESISTOR BLOCK, Hand Warmers

Note: (Used on ST1130S & ST1332S)

$

$

Currently unavailable

29

Murray MT1960685SM

NUT, Hex KEPS 1/4-20 Conical Washer

Note: (Used on ST1130S & ST1332S)

$

$

Currently unavailable

30

Murray MT1920397SM

NUT, Hex Lock ESNA Light 1/4-20

$

$

Currently unavailable

31

Murray MT1927429SM

SCREW, Hex Washer Head Taptite 1/4-20 x 5/8

$

$

Currently unavailable

32

Murray MT1732470SM

KNOB, Interior Thread 3/8-16

$

$

Currently unavailable

33

Murray MT1733778FSM

COVER, Panel 16GA

$

$

Currently unavailable

34

Murray MT1960715SM

SCREW, Truss Head Torx Drive 1/4-20 x 3/4

$

$

Currently unavailable

35

Murray MT1709188SM

PLUG, Dash Hole

Note: (Used on ST8526 & ST1028S)

$

$

Currently unavailable

36

Murray MT1922837SM

CAPSCREW, Hex Head 1/4-20 x 1-1/2 G5

$

$

Currently unavailable

37

Murray MT1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4 G5

$

$

Currently unavailable

39

Murray MT1732064ASM

SUPPORT, Dash Panel Cover

$

$

Currently unavailable

40

Murray MT1732471SM

CABLE & SPRING ASSEMBLY, Auger Drive R.H.

$

$

Currently unavailable

41

Murray MT1722638SM

HANDLE, Clutch R.H.

$

$

Currently unavailable

42

Murray MT1923358SM

NUT, Hex Centerlock 1/4-20

$

$

Currently unavailable

43

Murray MT1726317SM

GRIP, Black Soft 1" Diameter

Note: (Used on ST8526 & ST1028S)

$

$

Currently unavailable

43

Murray MT1723965SM

HAND GRIP, Heated 1" Diameter

Note: (Used on ST1130S & ST1332S)

$

$

Currently unavailable

44

Murray MT1715655SM

SPACER, Handle

$

$

Currently unavailable

45

Murray MT1678392SM

SPACER

$

$

Currently unavailable

47

Murray MT1734587ASM

HANDLE, Upper R.H. Tubular

$

$

Currently unavailable

48

Murray MT1734586ASM

HANDLE, Upper L.H. Tubular

$

$

Currently unavailable

49

Murray MT1960723SM

CARRIAGE BOLT, 5/16-18 x 2-1/4 G5

$

$

Currently unavailable

50

Murray MT1732781ASM

HANDLE, Lower Tubular

$

$

Currently unavailable

51

Murray MT1960686SM

NUT, Hex Flange 5/16-18 ESNA

$

$

Currently unavailable

53

Murray MT1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4

$

$

Currently unavailable

54

Murray MT313441MA

BRACKET, Cable Adjusting 13GA
(Superseded to 313441MA)

$

$

Not available

55

Murray MT308146MA

BOOT, Spring End Cover
(Superseded to 308146MA)

$6.49

$

In Stock, only 2 left!

0

56

Murray MT1502113MA

CABLE, Drive

$

$

Currently unavailable

57

Murray MT1733730SM

SHIM, Spacer 18GA

Note: (Used on ST8526 & ST1028S)

$

$

Currently unavailable

58

Murray MT1679166SM

SPACER

$

$

Currently unavailable

59

Murray MT1733505ASM

BRACKET, Free Hand Control

$

$

Currently unavailable

60

Murray MT1733095SM

SPACER, Powdered Metal

$

$

Currently unavailable

61

Murray MT1733509SM

ROD & SPRING ASSEMBLY, w/Pin

$

$

Currently unavailable

62

Murray MT1960027SM

WASHER, 1/2

$

$

Currently unavailable

63

Murray MT2108360SM

SPRING, Compression

$

$

Currently unavailable

64

Murray MT1960353SM

WASHER, 1/4

$

$

Currently unavailable

65

Murray MT1722630SM

ROD, Hold Down

$

$

Currently unavailable

66

Murray MT1732322SM

HEADLIGHT ASSEMBLY, Oval Clear

Note: (Used on ST1028S ST1130S & ST1332S)

$

$

Currently unavailable

67

Murray MT1701011SM

TIE, Self Locking

Note: (Used on ST1130S & ST1332S)

$

$

Currently unavailable

68

Murray MT1733192SM

KNOB, Slot Speed

$

$

Currently unavailable

69

Murray MT579860MA

SPOOL CABLE, Auger Control
(Superseded to 579860MA)

$5.99

$

In Stock, Qty 10

0

70

Murray MT1732761SM

ROD & YOKE ASSEMBLY, Chute

$

$

Currently unavailable

71

Murray MT2816168SM

PIN, Spring

$

$

Currently unavailable

72

Murray MT1611911SM

SUPPORT, Worm 10GA

$

$

Currently unavailable

73

Murray MT1668186SM

WORM, Chute L.H.

$

$

Currently unavailable

75

Murray MT1960589SM

SCREW, Round Head Phillips #10-24 x 3/4

$

$

Currently unavailable

76

Murray MT1933896SM

NUT, Hex Lock 10-24 W/Nylon Insert

$

$

Currently unavailable

80

Murray MT578060MA

PIN, Universal Joint
(Superseded to 578060MA)

$7.49

$

Usually ships in 2-12 days

0

81

Murray MT578063MA

BLOCK, Universal Pivot
(Superseded to 578063MA)

$5.49

$

In Stock, only 3 left!

0

82

Murray MT579493MA

PIN, Cotter
(Superseded to 579493MA)

$4.49

$

Usually ships in 2-12 days

0

83

Murray MT1733737ASM

SUPPORT, Chute Rod

$

$

Currently unavailable

84

Murray MT1733611SM

YOKE & TUBE ASSEMBLY, Chute

$

$

Currently unavailable

85

Murray MT1501293MA

PIN, Hair Chute Gear
(Superseded to 1501293MA)

$4.99

$

Usually ships in 2-12 days

0

86

Murray MT578309MA

PIN, Clevis
(Superseded to 578309MA)

$5.49

$

In Stock, Qty 7

0

87

Murray MT1733182SM

ROD & YOKE ASSEMBLY, Chute

$

$

Currently unavailable

88

Murray MT1960373SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1

$

$

Currently unavailable

89

Murray MT1733379ASM

SPACER, Block

$

$

Currently unavailable

90

Murray MT1935048SM

NUT, Hex Flange 5/16-18 Two-Way Lock

$

$

Currently unavailable

91

Murray MT1921333SM

CAPSCREW, Hex Head 5/16-18 x 1

$

$

Currently unavailable

92

Murray MT1921977SM

CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5

$

$

Currently unavailable

93

Murray MT1960684SM

NUT, Hex Keps Conical Washer, 5/16-18

$

$

Currently unavailable
