ST 1028 (628104x16B) - Frontier 28" Snow Thrower (2004) Wheels Parts Diagram

28" Snow Thrower

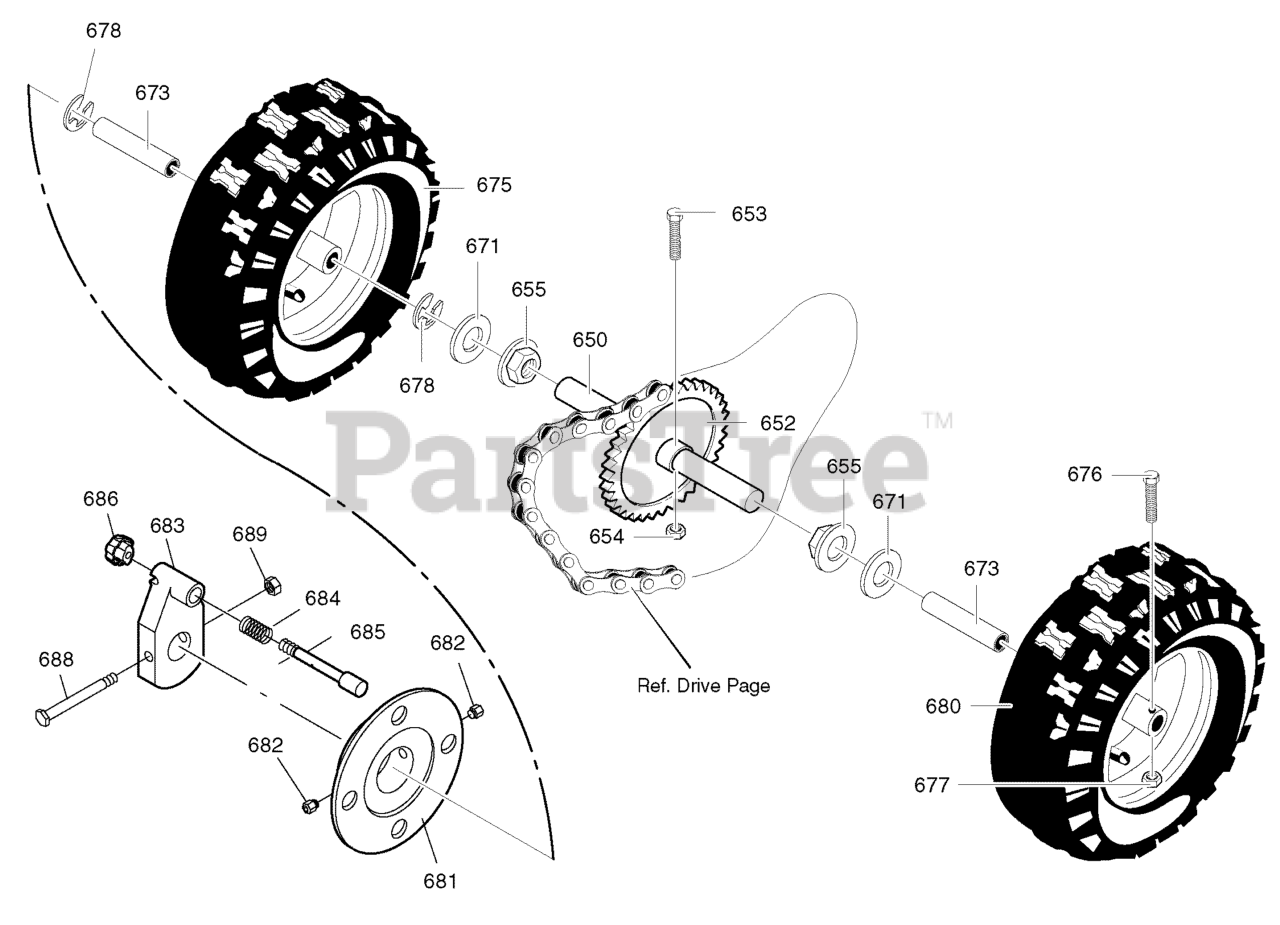

Wheels Parts Diagram

  • Title
650

Murray MT1501563

SHAFT, AXLE

$

$

Currently unavailable

652

Murray MT1501089

SPRKT & HUB

$

$

Currently unavailable

653

Murray MT01X193

SCREW, 1/4-20X1.75

$

$

Currently unavailable

654

Murray MT15X145

NUT, 1/4-20 HEX NYLOCK

$

$

Currently unavailable

655

Murray MT1501114

BEARING, AXLE

$

$

Currently unavailable

671

Murray MT712120

FLATWASHER

$

$

Currently unavailable

673

Murray MT1501138

BUSHING, WHEEL

$

$

Currently unavailable

675

Murray MT1501824

TIRE & RIM, RIGHT

$

$

Currently unavailable

676

Murray MT577015

SCREW, 1/4-20X1.75

$

$

Currently unavailable

677

Murray MT15X145

NUT, 1/4-20 HEX NYLOCK

$

$

Currently unavailable

678

Murray MT239

RING, RET

$

$

Currently unavailable

680

Murray MT1501825

TIRE & RIM, LEFT

$

$

Currently unavailable

681

Murray MT1501032E

DISC, WHEEL

$

$

Currently unavailable

682

$

$

Currently unavailable

683

Murray MT1501930

HUB ASSEMBLY, WHEEL LOCK

$

$

Currently unavailable

684

Murray MT164X34

Spring Compression *

$

$

Currently unavailable

685

Murray MT1501856YZ

Pin, Lock *

$

$

Currently unavailable

686

$

$

Currently unavailable

688

$

$

Currently unavailable

689

$

$

Currently unavailable
