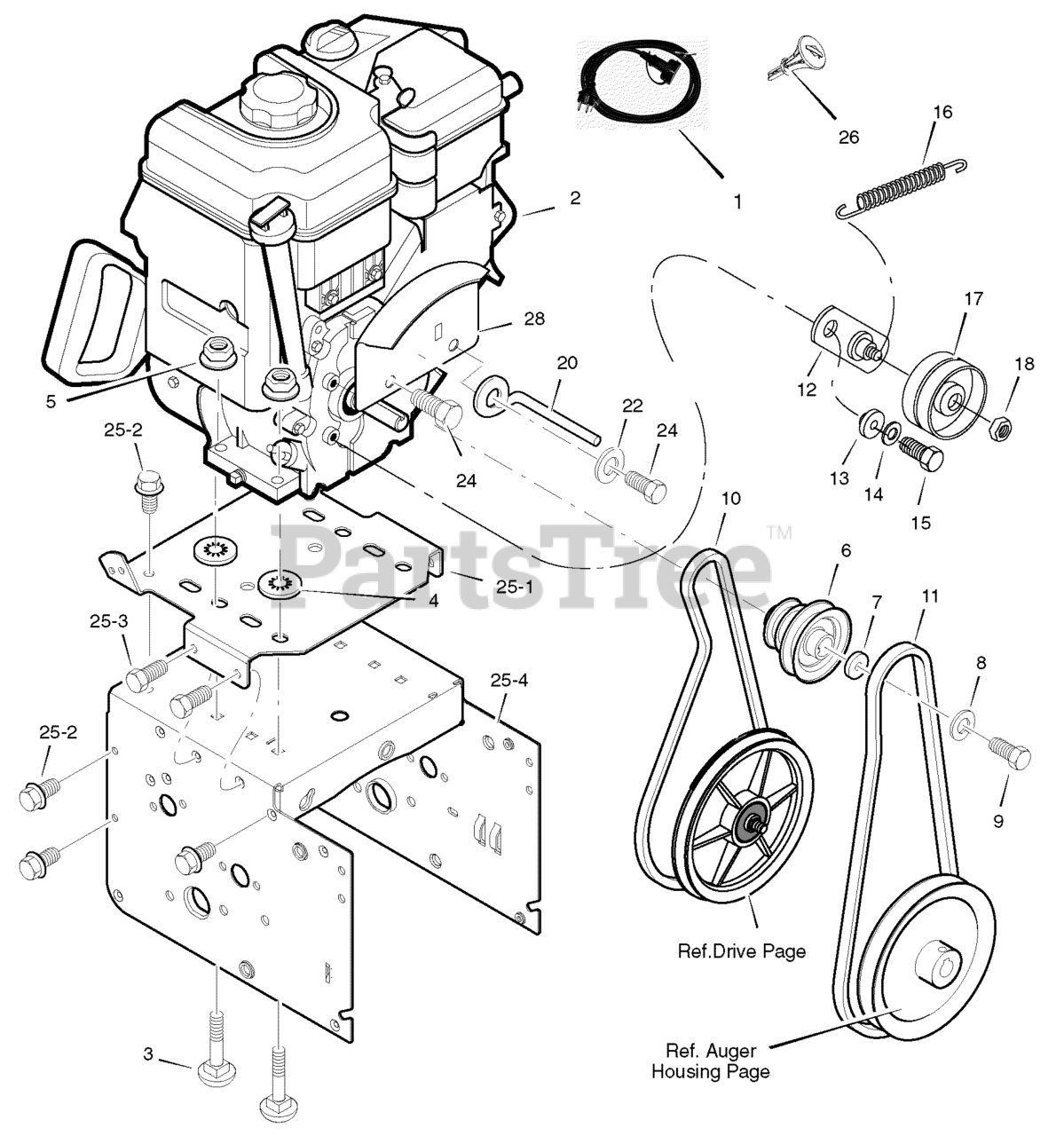

ST 1028 (628104x16B) - Frontier 28" Snow Thrower (2004) Engine Parts Diagram

28" Snow Thrower

Engine Parts Diagram

  • Title
1

Murray MT6219

CORD, STARTER

$

$

Currently unavailable

2

ENGINE

$

$

Not available

3

Murray MT002X97

BOLT, CARRIAGE

$

$

Currently unavailable

4

Murray MT028X76

RETAINER, PUSH

$

$

Currently unavailable

$

$

Currently unavailable

6

Murray MT1501109

PULLEY, ENGINE

$

$

Currently unavailable

7

$

$

Currently unavailable

8

$

$

Currently unavailable

9

$

$

Currently unavailable

10

Murray MT579932

BELT, DRIVE V 4L

$

$

Currently unavailable

11

Murray MT585416

BELT, AUGER V 3L

$

$

Currently unavailable

12

Murray MT1501112 YZ

BRACKET ASSEMBLY, IDLER

$

$

Currently unavailable

13

Murray MT1501065

BUSHING, IDLER BRACKET

$

$

Currently unavailable

14

Murray MT71060

WASHER, SPLIT

$

$

Currently unavailable

15

Murray MT710097

SCREW 5/16-24 X .75

$

$

Currently unavailable

16

Murray MT53704

SPRING, IDLER TRACTION DRIVE

$

$

Currently unavailable

17

Murray MT50793

PULLEY, IDLER

$

$

Currently unavailable

18

Murray MT590

NUT, JAM 3/8-16

$

$

Currently unavailable

20

Murray MT1501201

GUIDE, ROD BELT

$

$

Currently unavailable

22

$

$

Currently unavailable

24

$

$

Currently unavailable

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray MT1501062E511

PLATE, ENGINE

$

$

Currently unavailable

25-2

$

$

Currently unavailable

25-3

$

$

Currently unavailable

25-4

$

$

Currently unavailable

26

Murray MT1501214

KEY, BRIGGS ENGINE

$

$

Currently unavailable

28

Murray MT1501994Z

SHIELD, BRIGGS ENGINE

$

$

Currently unavailable

--

Murray F-0410103L

OWNER'S MANUAL

$

$

Currently unavailable
