ST 1028 (628102x16A) - Frontier 28" Snow Thrower (2005) Auger Housing Parts Diagram

28" Snow Thrower

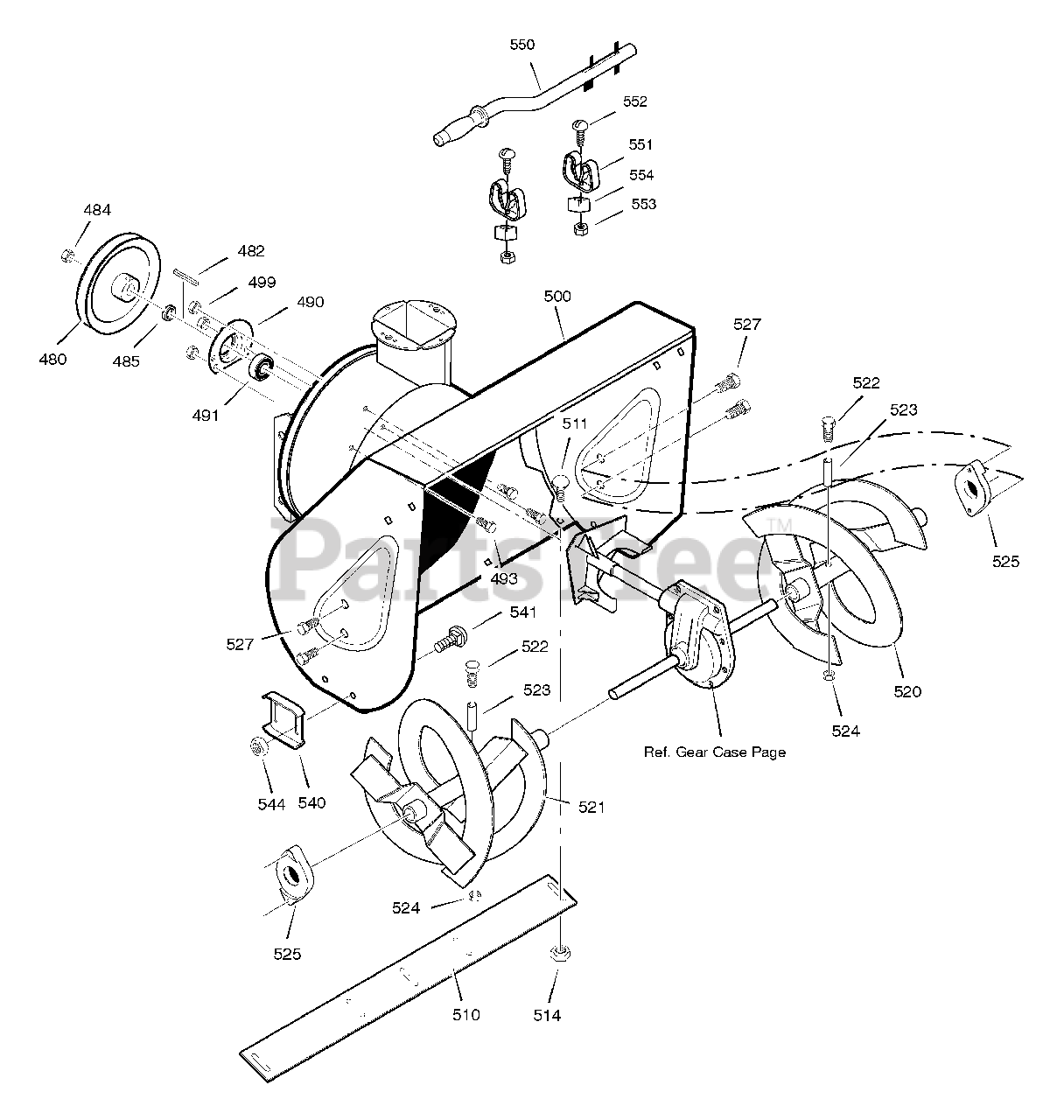

Auger Housing Parts Diagram

  • Title
480

Murray MT583146MA

PULLEY, 4L 8.40 OD
(Superseded to 583146MA)

$

$

Not available

482

Murray MT2001022MA

KEY, SQUARE 3/16 X 3/4
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 11

0

484

Murray MT15X112MA

NUT, 1/2-20
(Superseded to 15X112MA)

$5.49

$

In Stock, only 2 left!

0

485

Murray MT1501158MA

SPACER, FRICTION PULLEY
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

490

Murray MT582957 YZ

RETAINER, BALL BRNG

$

$

Currently unavailable

491

Murray MT1501389MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray MT001X92MA

BOLT, HEX 5/16-18X .50
(Superseded to 001X92MA)

$5.49

$

In Stock, only 3 left!

0

499

Murray MT710026MA

NUT, 5/16-18 HEXWDFLLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray MT1501590E511MA

HOUSING, ASSY

$136.99

$

Usually ships in 2-12 days

0

510

Murray MT583043E701MA

BLADE, SCRAPER
(Superseded to 583043E701MA)

$

$

Not available

511

Murray MT001X45

BOLT, 5/16-18x.62

$

$

Currently unavailable

514

Murray MT710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

520

Murray MT760597E701MA

AUGER, ASSY, LH

$73.99

$

Usually ships in 2-12 days

0

521

Murray MT760598E701MA

AUGER, ASSY, RH
(Superseded to 1740741BMYP)

$170.99

$

In Stock, only 1 left!

0

522

Murray MT9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

523

Murray MT3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray MT73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray MT53757MA

BEARING, FLANGE
(Superseded to 53757MA)

$9.99

$

In Stock, only 2 left!

0

527

Murray MT25X201

SCREW, 5/16-18 x 0.75

$

$

Currently unavailable

540

Murray MT1502187E701

SKID, HEIGHT ADJUST

$

$

Currently unavailable

541

Murray MT908156

BOLT, 5/16-18 X .50

$

$

Currently unavailable

544

Murray MT710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray MT1501576MA

BRUSH, CLEANOUT
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

551

Murray MT1501672MA

CLIP, RETAINER
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

552

Murray MT06X115MA

screw
(Superseded to 704086)

$3.99

$

Usually ships in 2-12 days

0

553

Murray MT15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

554

Murray MT578063MA

BLOCK
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

--

Murray MT1501216MA

KIT, SHEAR BOLT
(Superseded to 1501216MA)

$4.99

$

In Stock, Qty 14

0
