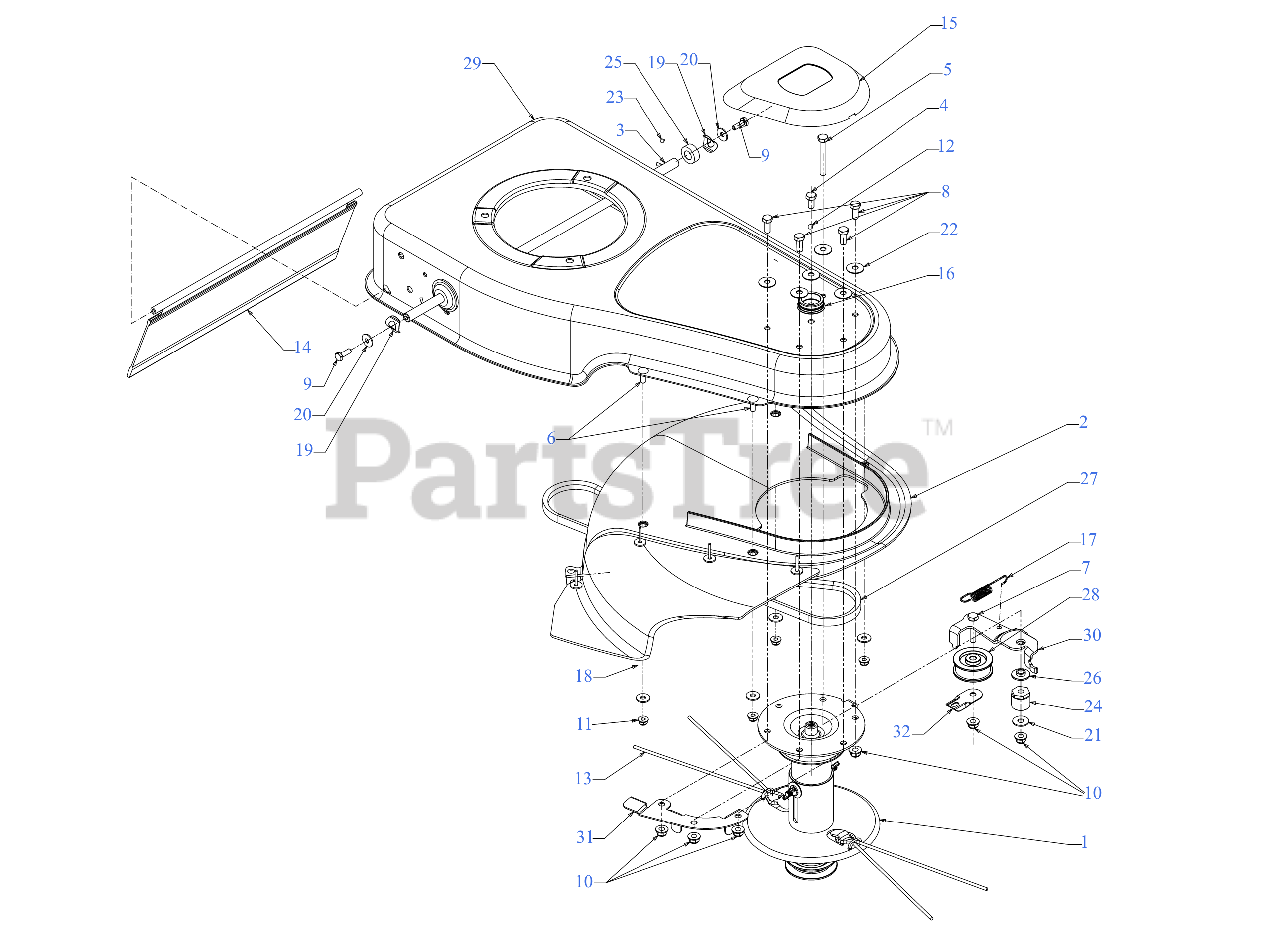

ST 100 (25B-262J710) - Cub Cadet Walk-Behind Trimmer (2019) General Assembly Parts Diagram

Walk-Behind Trimmer

General Assembly Parts Diagram

  • Title

1

Cub Cadet 918-07086

SPINDLE ASSEMBLY

$344.99

$

In Stock, only 1 left!

0

1

Cub Cadet 982-0143A

SKID ASSEMBLY

Note: (Not Shown)

$36.99

$

In Stock, Qty 20+

0

2

Cub Cadet 631-0096

22" DEFELECTOR ASSEMBLY

$105.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 681-0159

AXLE ASSEMBLY
(Superseded to 681P0159A)

$58.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0170

HEX SCREW 5/16-24 x .62

$6.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

12

NOT SERVICEABLE

$

$

Not available

13

Cub Cadet 490-040-M035

TRIMMER LINE: 10 P

$13.99

$

In Stock, Qty 8

0

14

Cub Cadet 731-12125

TRIMMER TRAILSHIELD

$22.99

$

In Stock, only 3 left!

0

15

Cub Cadet 731-16291

COVER TRIM

$8.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-16292

COVER TRIM RETAINER

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 732-1022

EXTENSION SPRING .500 OD x 3.375

$4.99

$

In Stock, only 4 left!

0

18

Cub Cadet 736-0173

FLAT WASHER .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0182

SPRING WASHER .50 x 1.0 x .022

$4.49

$

In Stock, Qty 7

0

20

Cub Cadet 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-0371

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0

22

Cub Cadet 936-0425

BELL WASHER
(Superseded to 736-0425)

$

$

Not available

23

NOT SERVICEABLE

$

$

Not available

24

Cub Cadet 948-0278

SPACER

$11.99

$

In Stock, Qty 5

0

25

Cub Cadet 750-1240

SPACER .51

$3.99

$

In Stock, Qty 12

0

26

Cub Cadet 750-1275

IDLER SPACER

$6.49

$

In Stock, Qty 7

0

27

Cub Cadet 954-05077

V-BELT 4L x 44.6"

$32.99

$

In Stock, Qty 8

0

28

Cub Cadet 756-05108

IDLER PULLEY

$26.99

$

In Stock, Qty 20+

0

29

Cub Cadet 781-05168

TRIMMER BASE

Variations

Cub Cadet 781-05168-0606

BASE-STRNG TRIMMR - MAJESTIC ORANGE (0606)

$166.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-05168-0691

BASE-STRNG TRIMMR - BLACK JACK (0691)

$177.99

$

Usually ships in 3-6 days

0

Cub Cadet 781-05168-4021

BASE-STRNG TRIMMR - CUB YELLOW 2 (4021)

$190.99

$

Usually ships in 3-6 days

0

$154.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 981-1008A

IDLER BRACKET

$48.99

$

In Stock, Qty 6

0

31

Cub Cadet 781-1020

BELT KEEPER BRACKET

Variations

Cub Cadet 781-1020-0637

Belt Keeper Bracket - POWDER BLACK (0637)

$28.99

$

In Stock, only 3 left!

0

$23.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 781-1028

IDLER BRACKET KEEPER

Variations

Cub Cadet 781-1028-0637

Idler Keeper Bracket - POWDER BLACK (0637)

$8.49

$

In Stock, Qty 10

0

$7.99

$

Usually ships in 3-6 days

0
