ST 0927 (627954x16A) - Frontier 27" Snow Thrower (2005) Headlight Parts Diagram

27" Snow Thrower

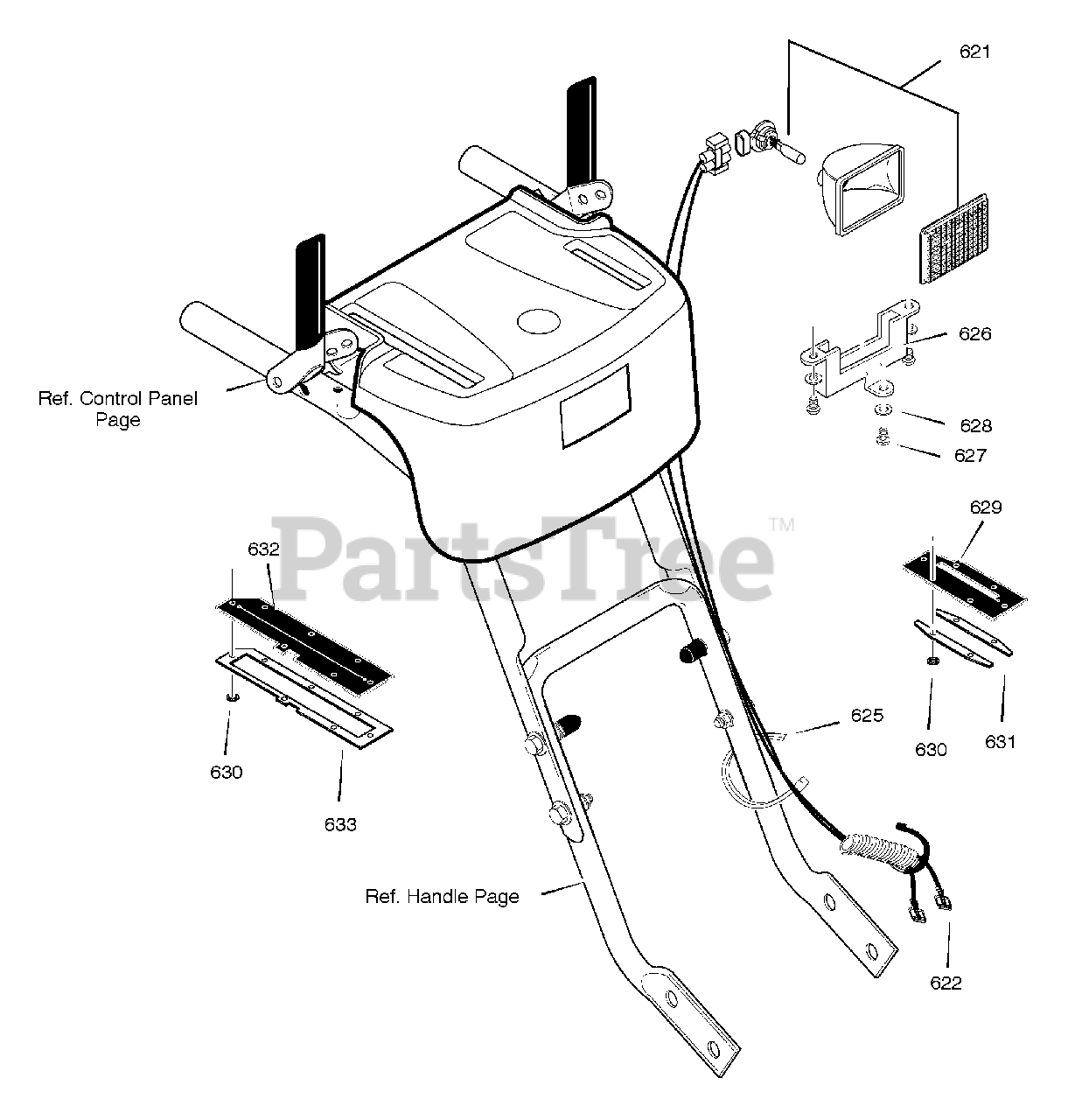

Headlight Parts Diagram

  • Title
621

Murray MT762343MA

LIGHT, HALOGEN
(Superseded to 762343MA)

$69.99

$

In Stock, only 1 left!

0

622

Murray MT1501455MA

HARNESS, WIRE
(Superseded to 1501455MA)

$12.99

$

Usually ships in 2-12 days

0

625

Murray MT071372MA

TIE, CABLE
(Superseded to 071372MA)

$4.49

$

In Stock, only 1 left!

0

626

Murray MT1501412MA

BRACKET, LIGHT

$

$

Not available

627

Murray MT901696MA

SCREW #8 X .50
(Superseded to 901696MA)

$3.49

$

Usually ships in 2-12 days

0

628

Murray MT901736MA

WASHER, FLAT
(Superseded to 901736MA)

$3.99

$

Usually ships in 2-12 days

0

629

Murray MT1501543MA

COVER, CHUTE LEVER
(Superseded to 1501543MA)

$19.99

$

Usually ships in 2-12 days

0

630

Murray MT028X79MA

NUT, PUSH
(Superseded to 028X79MA)

$3.49

$

Usually ships in 2-12 days

0

631

Murray MT1501545MA

FRAME, COVER

$20.99

$

Usually ships in 2-12 days

0

632

Murray MT1501542MA

COVER, SPEED LEVER
(Superseded to 1501542MA)

$9.49

$

Usually ships in 2-12 days

0

633

Murray MT1501544MA

FRAME, SPEED COVER

$18.99

$

Usually ships in 2-12 days

0
